Construction and description
2.5 Connections and interfaces
2.5.1 Electrical connection
This appliance is intended for operation on an electrical power system with a system imped-
ance Z
max
of a maximum of 0.292 ohm at the point of transfer (service line). The operator
max max
must ensure that the appliance is operated only on an electrical power system that meets
these requirements. If necessary, you can ask your local energy supply company what the
system impedance is.
Observe the country-specific regulations when connecting (e.g. in Germany
DIN VDE 0100 with residual current circuit breaker).
2.5.2 Communication interfaces
The interfaces are intended for appliances which meet the requirements of IEC 60950-1.
USB interface
The appliance is fitted by default with a USB
interface in accordance with the USB specifi-
cation. This way, you can
►
transfer software stored on a USB stor-
age medium to the appliance (see page
50).
►
export protocol logs from the appliance
to a USB storage medium (see page
52).
►
transfer user ID data stored on a USB storage medium to the appliance (see page 53).
The USB interface is located on the lower right of the ControlCOCKPIT (Abb. 4 ).
Ethernet interface
Via Ethernet interface, the appliance can be
connected to a network, so that you can
transfer programmes created with Atmo-
CONTROL software to the appliance and read
out protocol logs. The Ethernet interface is
located on the rear of the appliance (Abb. 5 ).
For identification purposes, each appliance
connected must have its own unique IP ad-
dress. Setting the IP address is described on
page 42.
You will find a description of how to transfer programmes via Ethernet in the en-
closed AtmoCONTROL manual.
With an optional USB to Ethernet converter, the appliance can be directly connected to a com-
puter / laptop (see Scope of delivery on page 16).

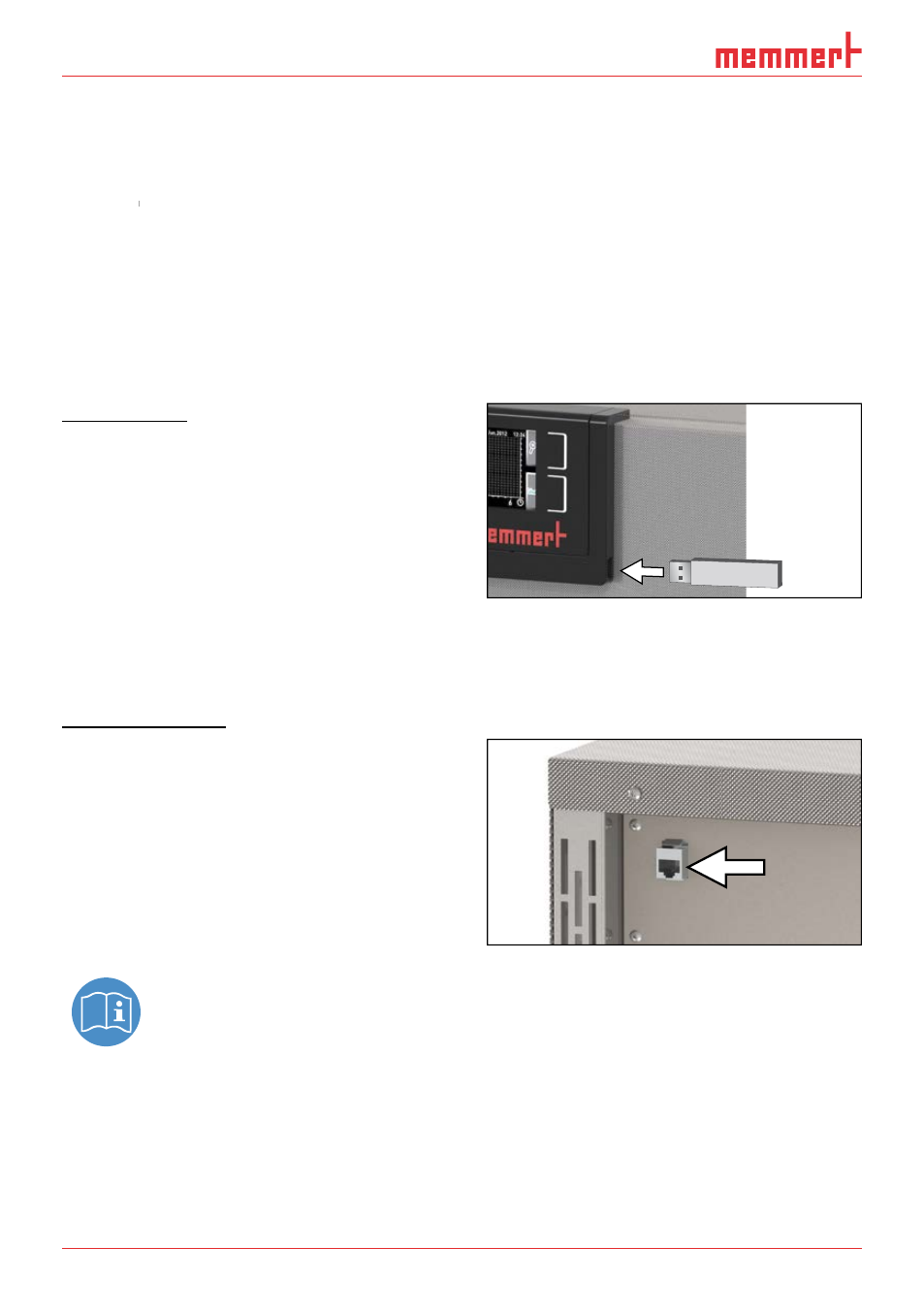

Abb. 4 USB interface
Abb. 5 Ethernet interface
