D30381 | Date 10/2014
Putting into operation

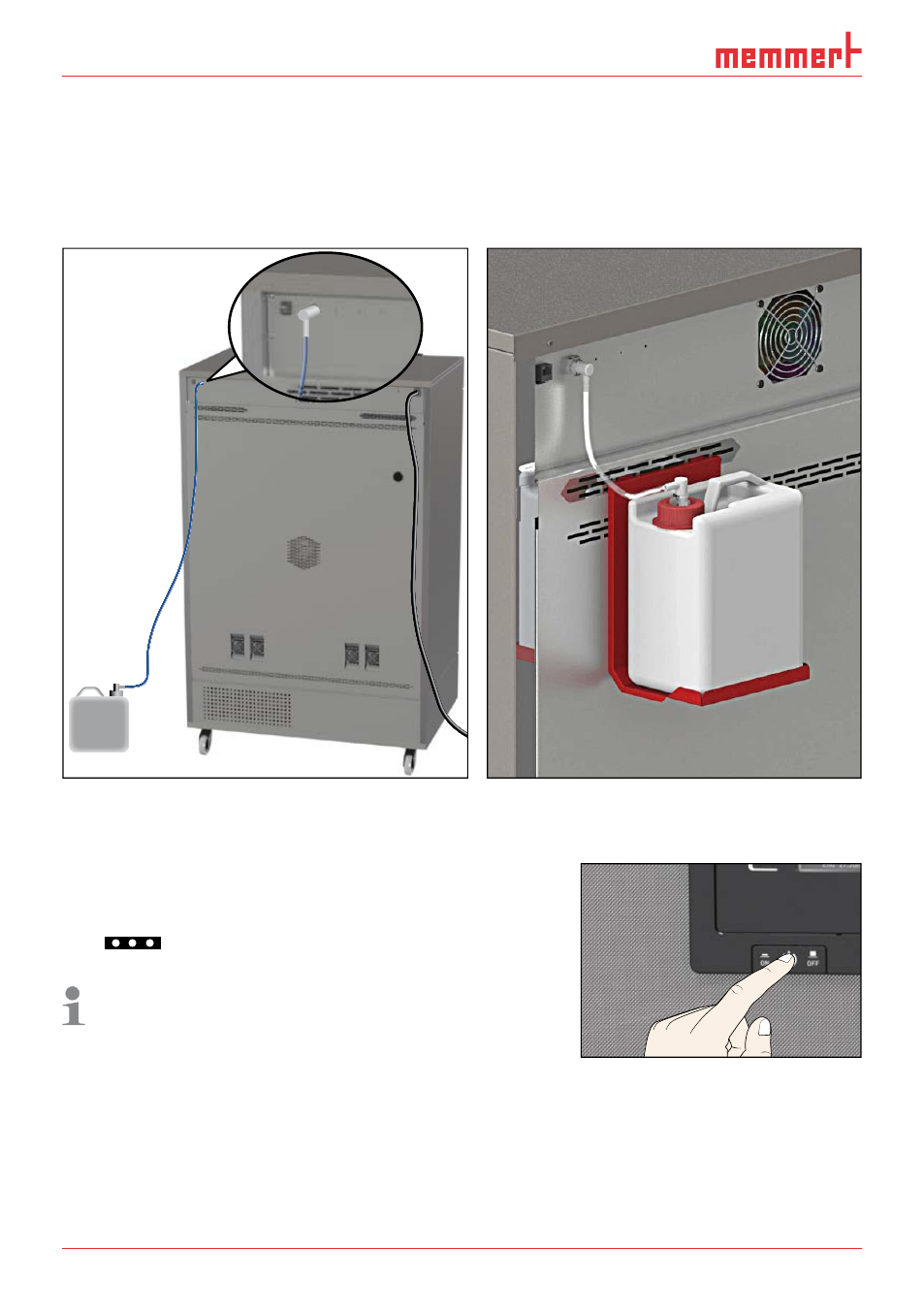

Fill the supplied water tank with water and connect it with the enclosed tube to the “H
2
O”
connection on the rear of the chamber (Fig. 11).
For appliances of size 750, the tank can be attached to the appliance with the included tank
holder (Fig. 12). To do so, hook the tank holder into the slots on the rear of the appliance. For
wall mounting, the tank holder also has two drill holes (fastening material not included in the
delivery).
Fig. 11
Water connection
Fig. 12
Tank holder
4.3 Switching on
Switch on the appliance by pressing the On/Off switch
on the front of the appliance ( Fig. 13 ).
The starting process is shown by three animated white
dots
. If the dots have another colour, an error has
. If the dots have another colour, an error has
occurred (see page 41).
After the first start-up, the appliance display is set to
English by default. You can change the language as
described from page 43. However, to get a basic
overview of operating the appliance, you should read
the following chapter first.
Hauptschalter
>
Zu der Typenbezeichnung gibt es momentan drei Entwurfsrichtungen,
ich kann Ihnen noch nicht sagen, ob Memmert hierzu schon eine Entscheidung
getroffen hat.
Die hier gezeigt Variante, ist die von uns empfohlene Richtung.
UF 110
PLUS
ON
344
.4
444
4
.
TEMP
Set
°C
°C
FLAP
40
%
TIMER
h
d
10
02
End
Sept.
29
22 24
FAN
%
0
%
100
ALARM
max
444
.4°C
auto
+/-
0.0
K
min
444
.4°C
O
O
ON
N
N
N
O
O
N
O
Manu
44.Sept
Fig. 13
Switching on the ap-
pliance
