20 D30381 | Date 10/2014
Delivery, transport and setting up

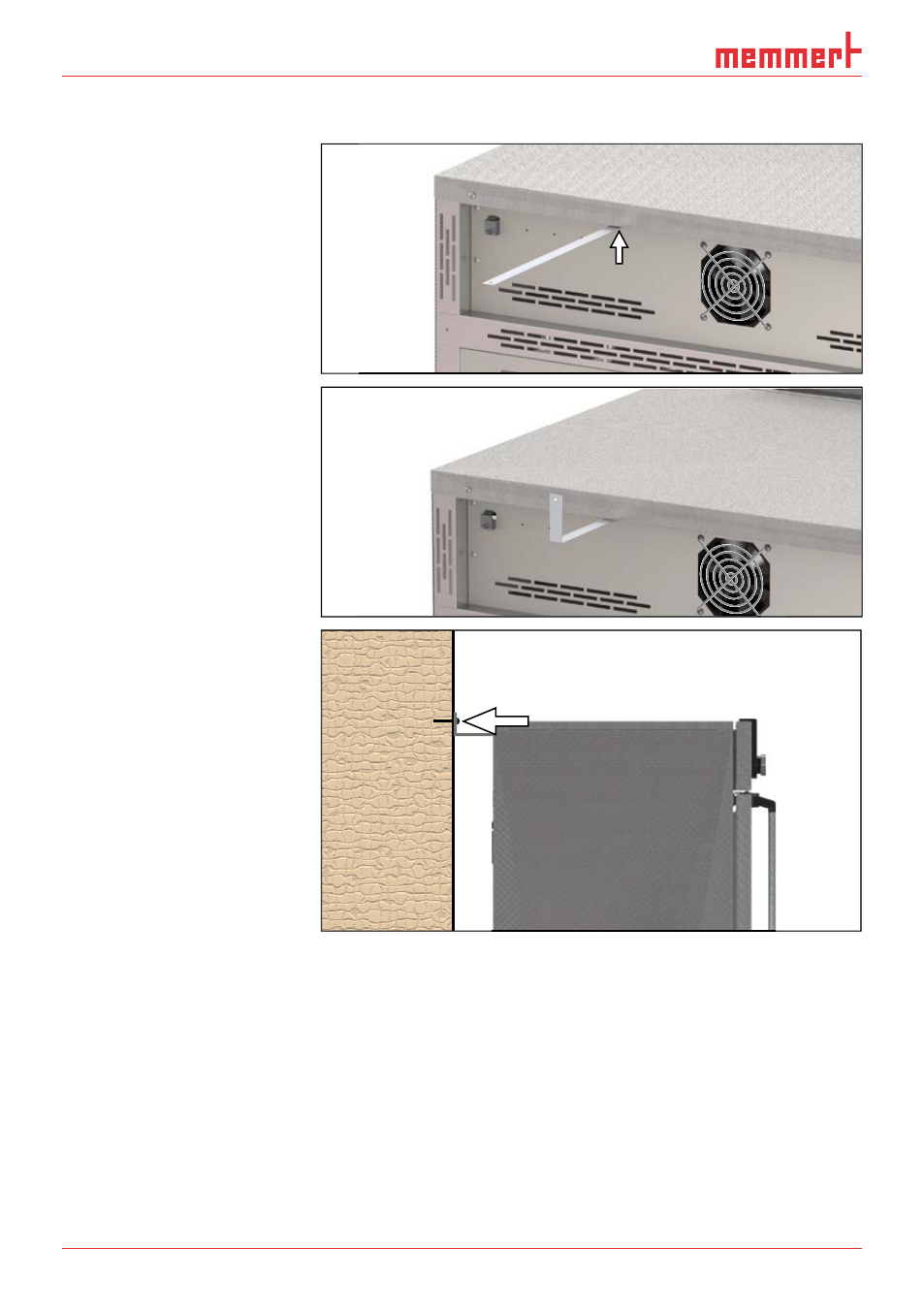

3.6.2 Tilt protection
Attach the appliance to a
wall with the tilt protection.
The tilt protection is included
in the delivery.
1. Screw the tilt protection
as shown onto the back
of the appliance.
2. Bend the tilt protec-
tion upwards by 90 ° in
the desired distance to
the wall (consider the
minimum distance to the
wall, see Fig. 9).
3. Drill a hole, insert a plug
and screw the tilt protec-
tion to a suitable wall.
≥ 5 cm ≥ 5 cm
≥ 20 cm
