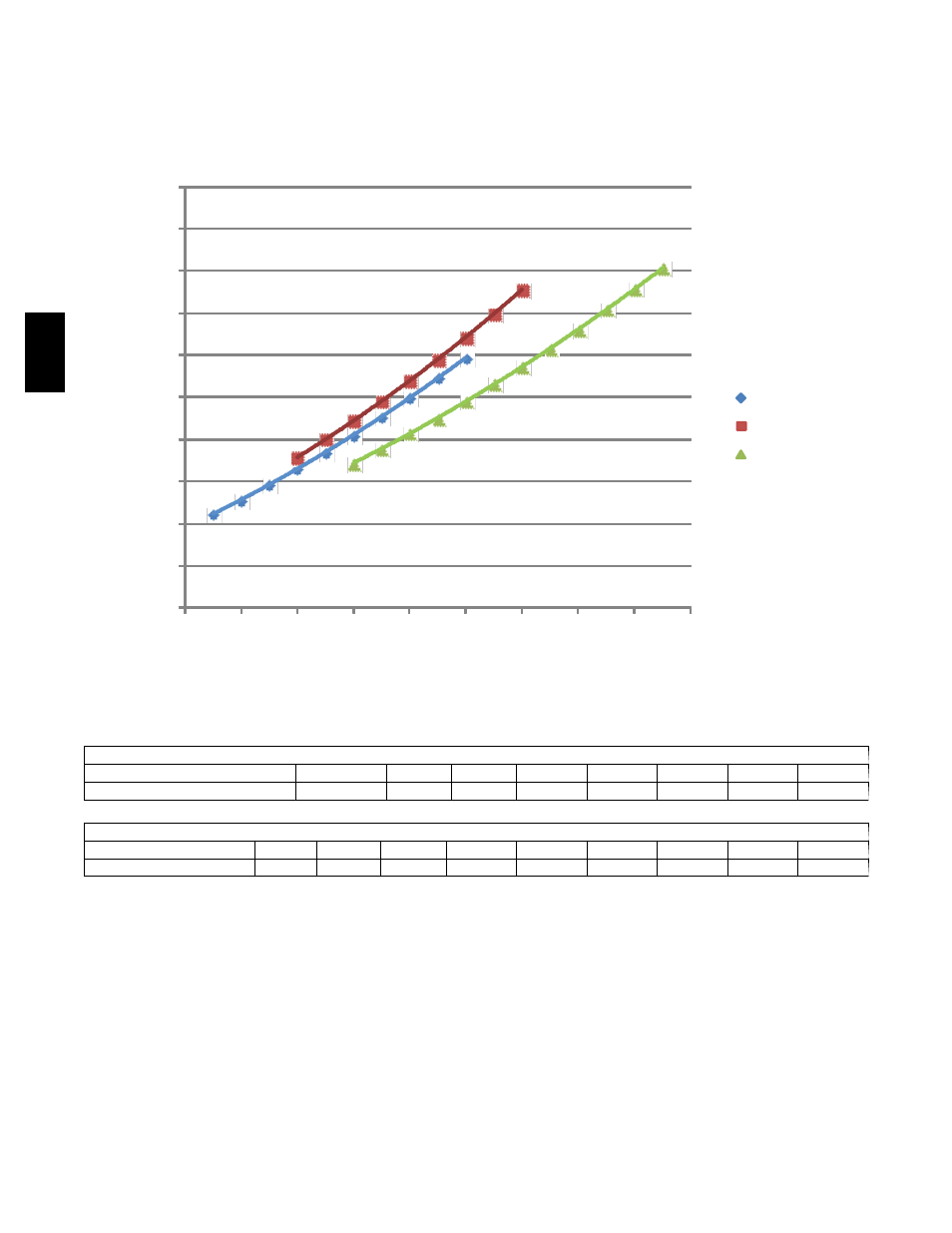

Table 17 – STATIC PRESSURE ADDERS (in. wg) -- Factory Options and/or Accessories
Perfect Humidity
0.00
0.02
0.04
0.06
0.08
0.10
0.12
0.14
0.16
0.18
0.20
4000 5000 6000 7000 8000 9000 10000 11000 12000 13000
CFM Air Flow
Static P
ressur
e (in. w
g)
Perfect Humidity Coil
558J/580J17-20
558J/580J 24
558J/580J 28
C11175B
Economizer -- Vertical and Horizontal Duct Configuration
MODEL SIZES 17 --- 28
CFM 4500 5000 5500 6000 6500 7000 7500 8000
Pressure Adders (in. wg) 0.047 0.052 0.057 0.062 0.067 0.072 0.077 0.082
MODEL SIZES 17 --- 28
CFM 8500 9000 9500 10000 10500 11000 11500 12000 12500
Pressure Adders (in. wg) 0.088 0.093 0.098 0.103 0.109 0.114 0.119 0.125 0.131
