Page 16
16

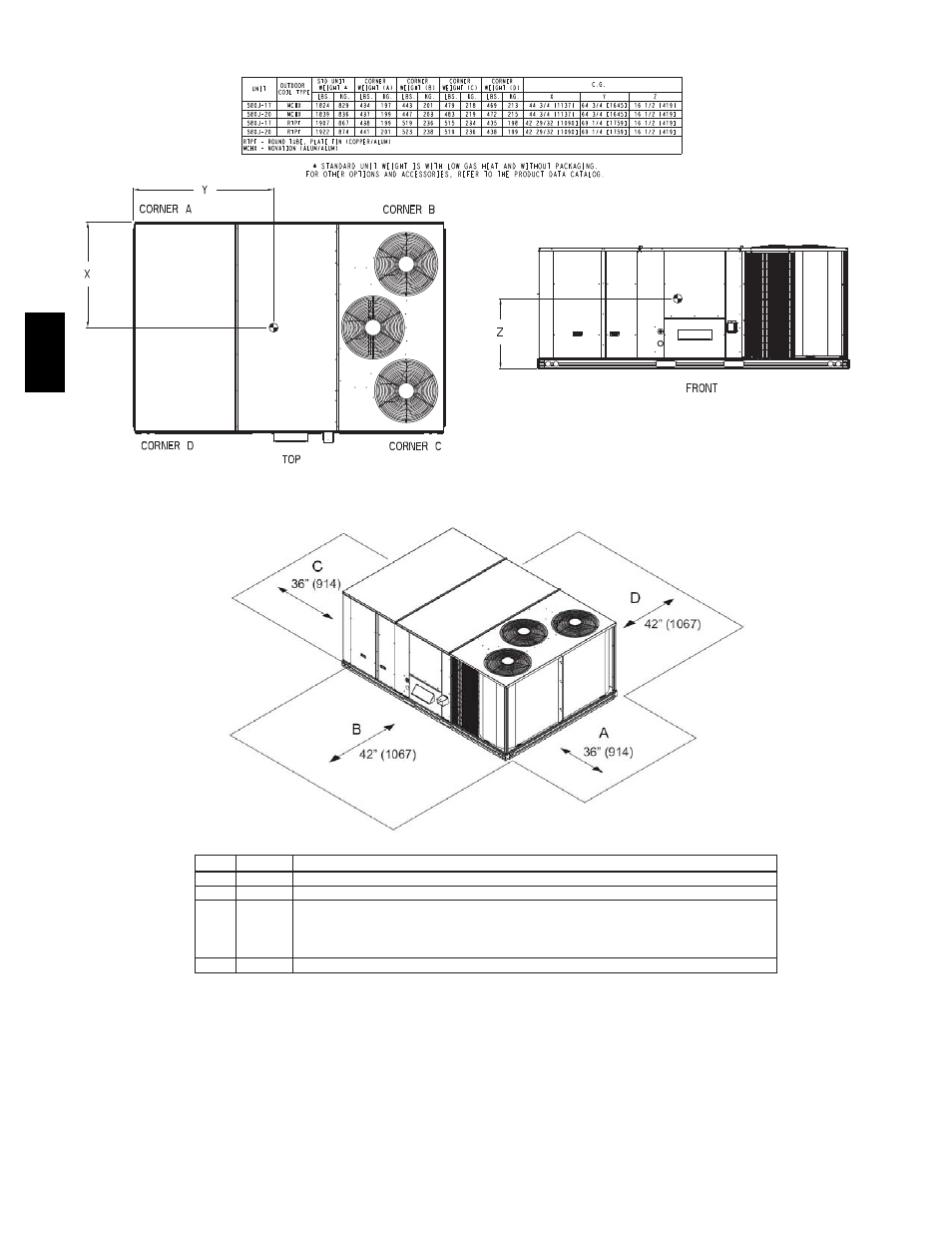

DIMENSIONS (cont.)
C101038
Fig. 2 -- Dimensions 580J*D17--20
LOC
DIMENSION
CONDITION
A
36"
Recommended clearance for airflow and service.
B
42"
Recommended clearance for airflow and service.
C
18"
1. No CO, 2. No Economizer, 3. No field installed disconnect on economizer hood side (Factory installed disconnect installed).
36"
1. CO installed, 2. Vertical surface behind servicer is electrically non-conductive (e.g., wood, fiberglass).
42"
1. CO installed, 2. Vertical surface behind servicer is electrically conductive (e.g., metal, masonry)
96"
1. Economizer and/or Power Exhaust installed. 2. Check for sources of flue products within 10 feet of economizer fresh air intake.
D
42"
Recommended clearance for service
C11001
Fig. 3 -- Service Clearance
