Software implementation and parameter setting
Reference menu
Reference type
5
65
HB 13.0001-EN
3.0
Reference type ”Reference switch”, positive reference
speed, ”Reference” as ”Active high”, without
evaluation of the limit switches
Reference type ”Reference switch”, negative
reference speed, ”Reference” as ”Active high”,
without evaluation of the limit switches
Example 1
Example 2
Reference switch
Starting point
Position
V
reference
Reference type ”Reference switch”, negative
reference speed, ”Reference” as ”Active high”, with
evaluation of the limit switches
Reference type ”Reference switch”, positive reference
speed, ”Reference” as ”Active high”, with evaluation
of the limit switches
Example 3
Example 4
Reference switch
V
reference
Position
Limit switch, right
Starting point
Limit switch, left

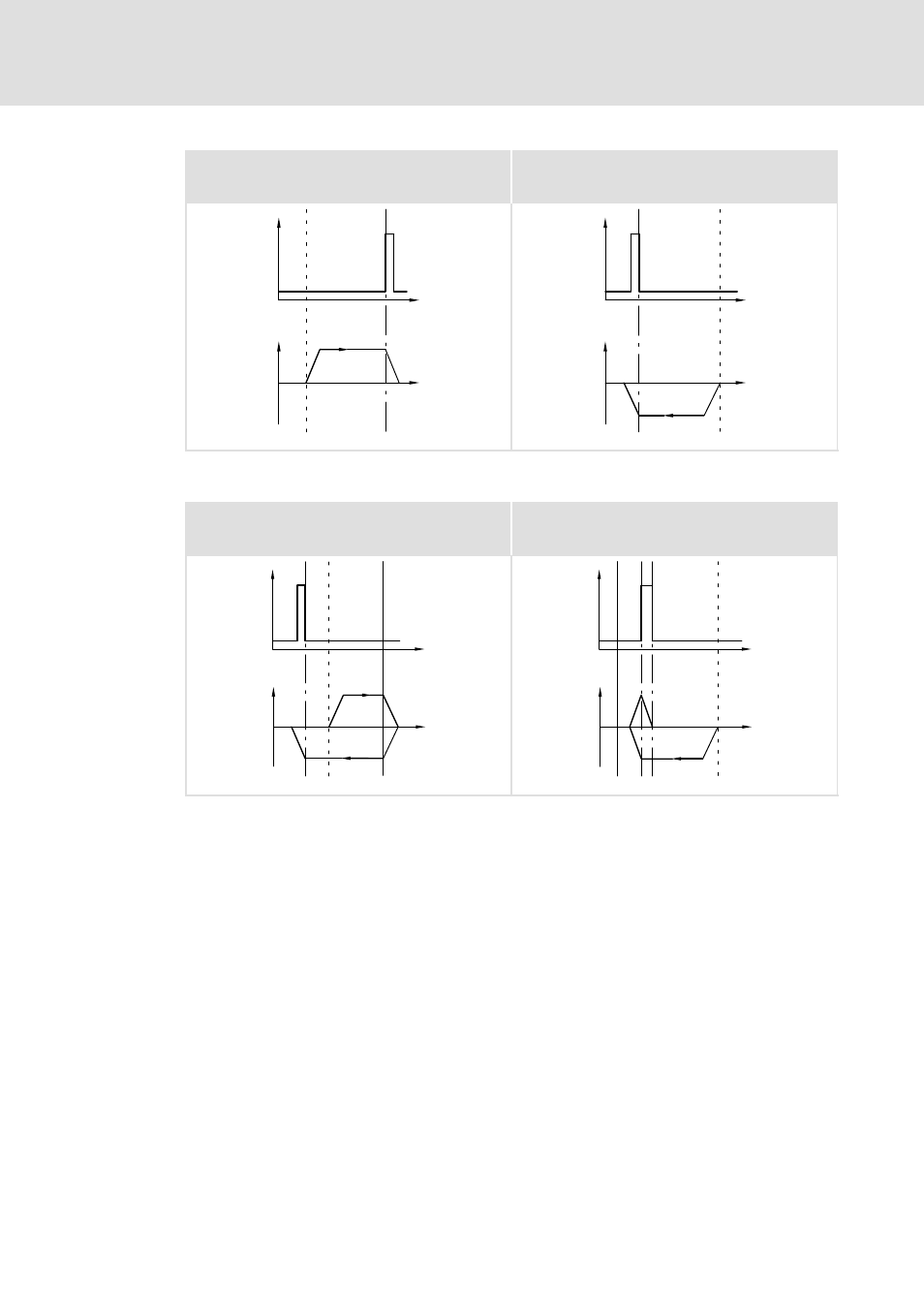

Fig. 4
Examples for referencing to a reference switch
