Software implementation and parameter setting
Status menu
5

21 HB 13.0001-EN 3.0

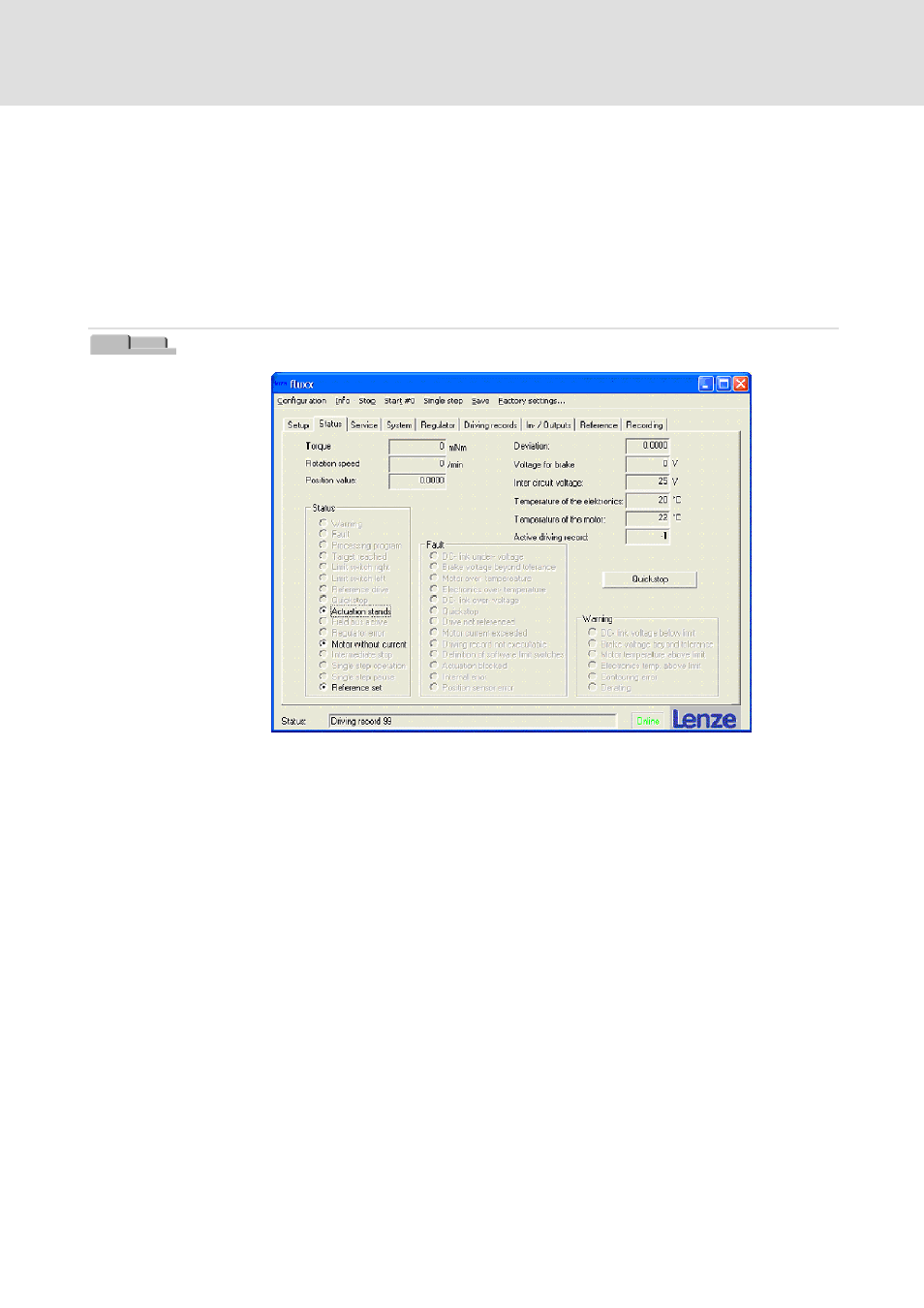

5.2 Status menu
This menu page displays warning signals that do not result in a switch-off of the amplifier
output stage, fault messages which cause a switch-off of the amplifier output stage, and
status messages visualising the responses triggered by the warning signals and fault
messages, as well as general operating states. In addition, the actual values including their
units are displayed, reflecting the current physical and electrical operating states.
pн~нмл
Torque
In this field, the theoretically calculated output torque of a rotary axis, or the theoretically
calculated output force of a linear axis is displayed. The value depends on the conversions
and display units set in the ”System” menu. Furthermore there is a dependence with
regard to the gearbox ratio. Thus, this value for instance becomes greater with an
increasing reduction of the gearbox that is specified in the ”Service” menu. The efficiency
and loss factors of the connected units (gearbox, linear axes, etc.) are not considered. The
displayed value furthermore depends on the current factor that is set in the ”Service”
menu.
Speed
Depending on the conversions and display units set in the ”System” menu, here the
currently output velocity is displayed for a linear axis, and the currently output speed is
displayed for arotary axis. Thereby highgearbox ratios and gearbox reductions whichhave
been defined in the ”Service” and ”System” menus, are integrated into the calculations.
