Application examples
93XX controller with two terminal extensions
9
l
76 EDBMZ9374X DE/EN/FR 4.2

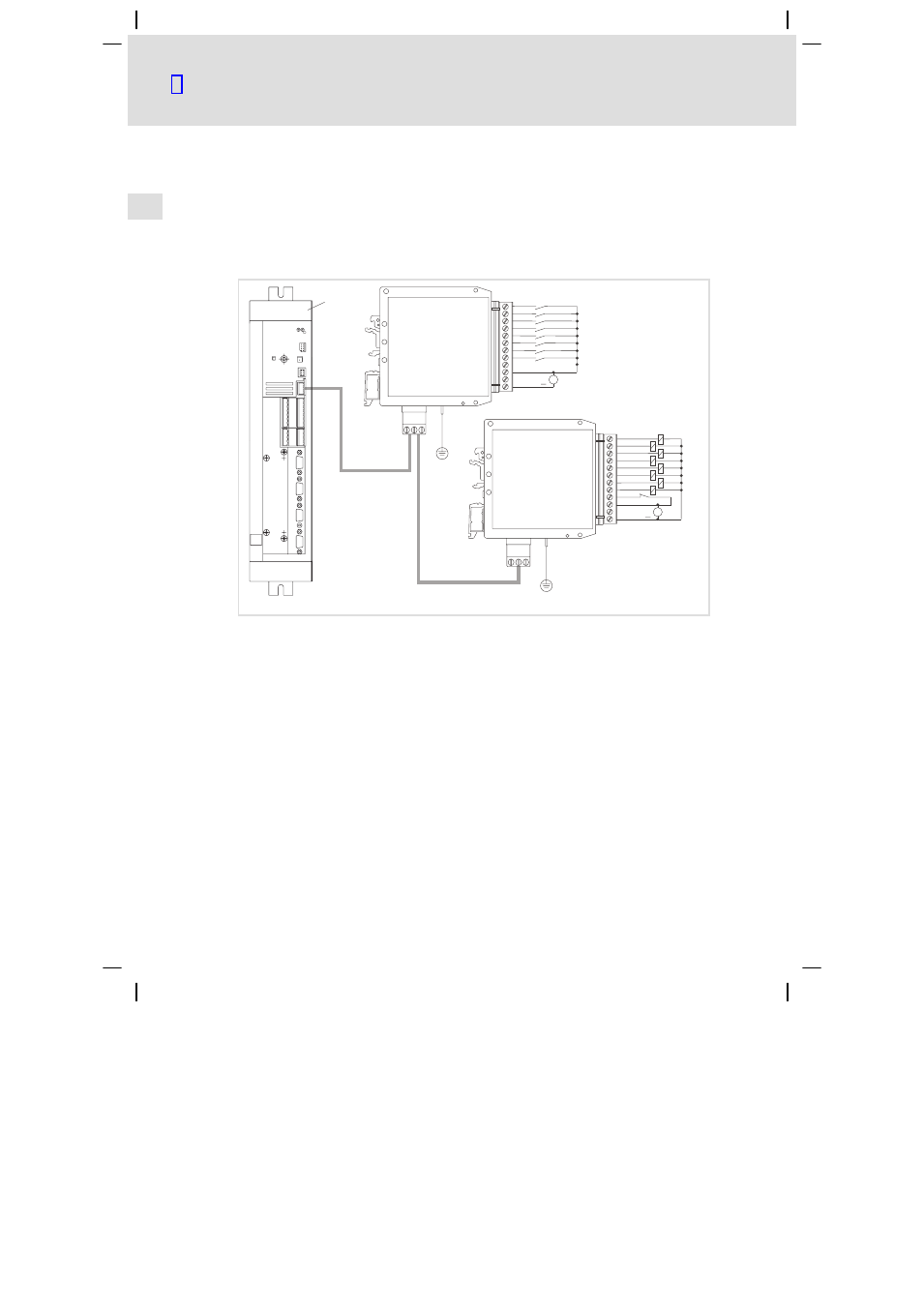

9.2 93XX controller with two terminal extensions
A terminal extension with 8 inputs and a terminal extension with 8 outputs is
to be operated on a controller of the 9300 series.
ƒ The controller’s CAN bus node address is 1.
ƒ The baud rate is to be 500 kBit/s.
ƒ The terminal extension is to be configured via the internal DIP switches.
+
+
+18 … +30 VDC
+18 … +30 VDC
=
=
PE
CAN
PE
l
1
2
0
9374_019
0 Controller 93XX
1 Terminal extension (9374 master)
2 Terminal extension (9374 slave)
