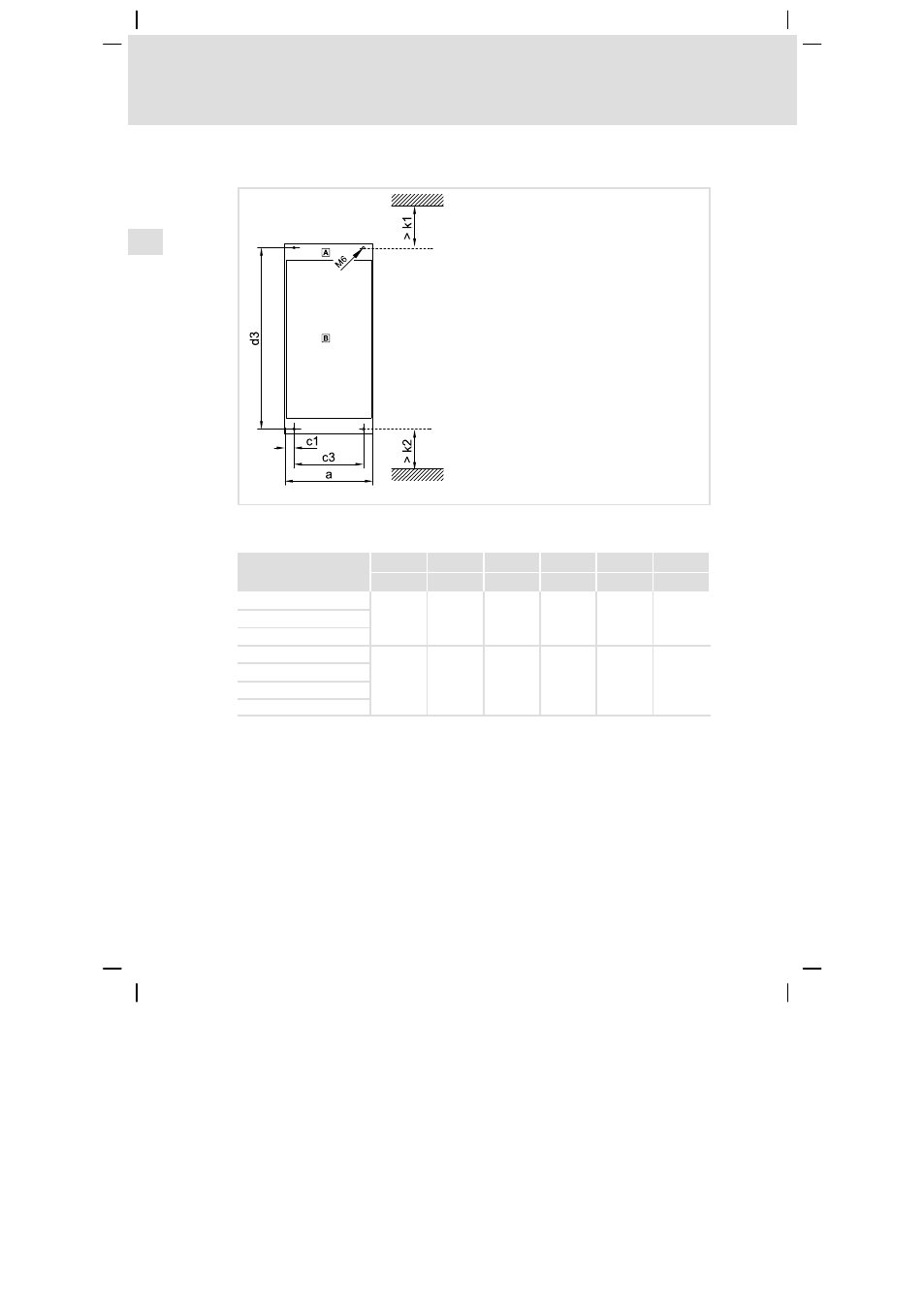

Installation mécanique

Montage standard

5

l

66

EDK84AZESxx DE/EN/FR/ES/IT 4.0

5.1

Montage standard

E84AZESx003

0

Filtre latéral

1

Appareil de base

a

c1

c3

d3

k1

k2

[mm]

[mm]

[mm]

[mm]

[mm]

[mm]

E84AZESM1834LD

205

22.5

160

415

55

60

E84AZESM2234LD

E84AZESM2234LDN001

E84AZESM3034LD

250

20

210

570

55

60

E84AZESM3734LD

E84AZESM4534LD

E84AZESM4534LDN001
