Installazione meccanica
Variante di montaggio

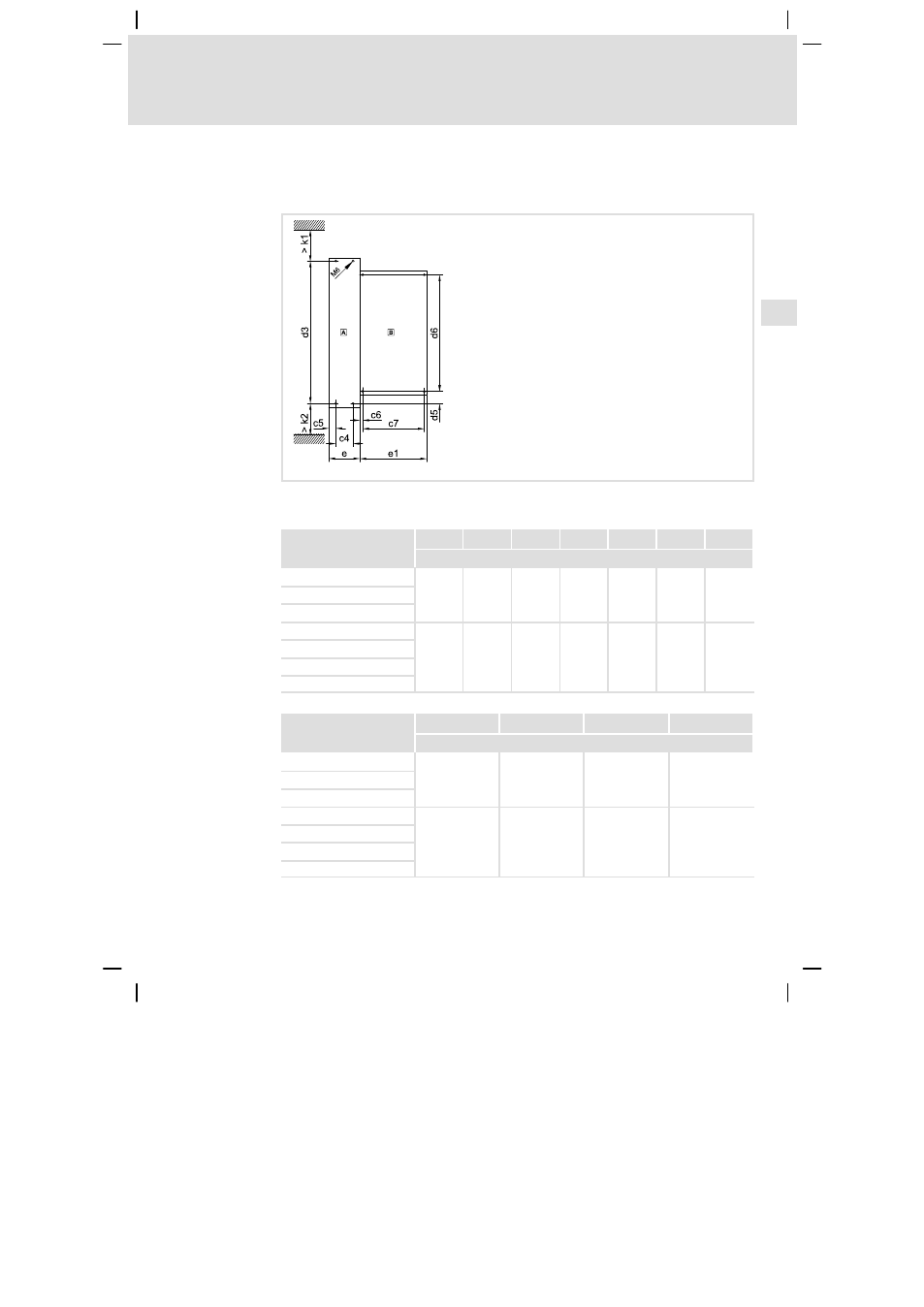

Schema di foratura
l
113
EDK84AZESxx DE/EN/FR/ES/IT 4.0
5.2
Variante di montaggio
5.2.1
Schema di foratura
E84AZESx004
0
Filtro montato a lato
1
Dispositivo base
c4
c5
c6
c7
d3
d5
d6
[mm]
E84AZESM1834LD
50
20
12.5
180
415
35
340
E84AZESM2234LD
E84AZESM2234LDN001
E84AZESM3034LD
65
20
20
210
570
37
495
E84AZESM3734LD
E84AZESM4534LD
E84AZESM4534LDN001
e
e1
k1
k2
[mm]
E84AZESM1834LD
90
205
55
60
E84AZESM2234LD
E84AZESM2234LDN001
E84AZESM3034LD
105
210
55
60
E84AZESM3734LD
E84AZESM4534LD
E84AZESM4534LDN001
