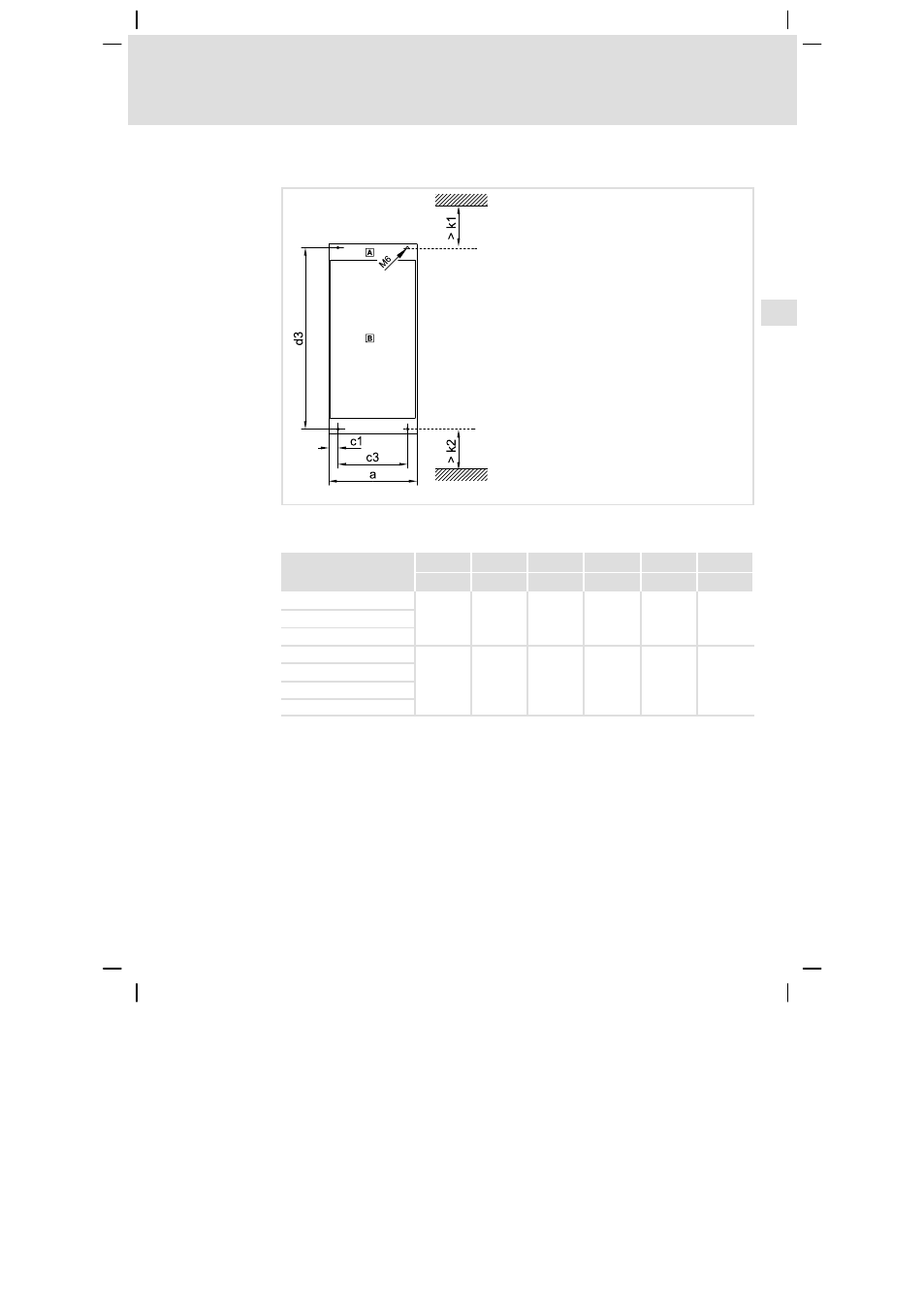

Installazione meccanica
Montaggio standard
l
111
EDK84AZESxx DE/EN/FR/ES/IT 4.0
5.1
Montaggio standard
E84AZESx003
0
Filtro montato a lato
1
Dispositivo base
a
c1
c3
d3
k1
k2
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
E84AZESM1834LD
205
22.5
160
415
55
60
E84AZESM2234LD
E84AZESM2234LDN001
E84AZESM3034LD
250
20
210
570
55
60
E84AZESM3734LD
E84AZESM4534LD
E84AZESM4534LDN001
