Mechanical installation
Standard mounting
Mounting steps
5
l
43 EDK84AZESxx DE/EN/FR/ES/IT 4.0
5.1.1 Mounting steps

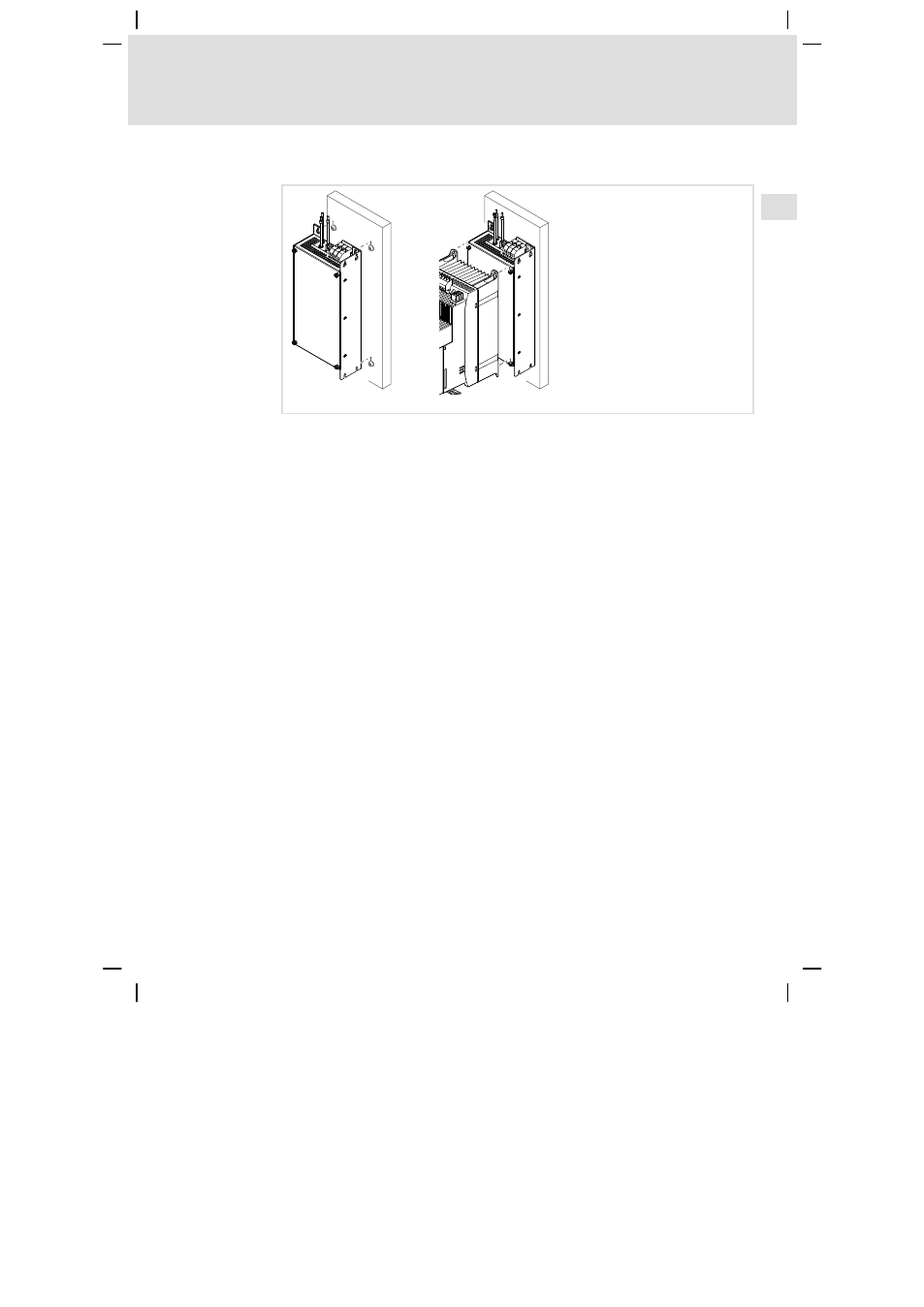

E84ZESx007
Proceed as follows for installation:
1. Prepare threaded holes on the mounting plate.
2. Equip threaded holes with screws and washers.
– Use 4 screw and washer assemblies or hexagon socket screws with
washers.
– Do not fully tighten the screws.
3. Mount the filter onto the prepared mounting plate.
– Only tighten the screws hand−tight.
4. Mount the standard device onto the filter.
– Use 4 screw and washer assemblies or hexagon socket screws with
washers.
5. If required, pre−assemble further units.
6. Adjust all units.
7. Screw all units onto the mounting plate.
– Starting torque: 7 Nm (62 lb−in)
