Mechanical installation
Mounting variant
Mounting steps
5
l
46 EDK84AZESxx DE/EN/FR/ES/IT 4.0

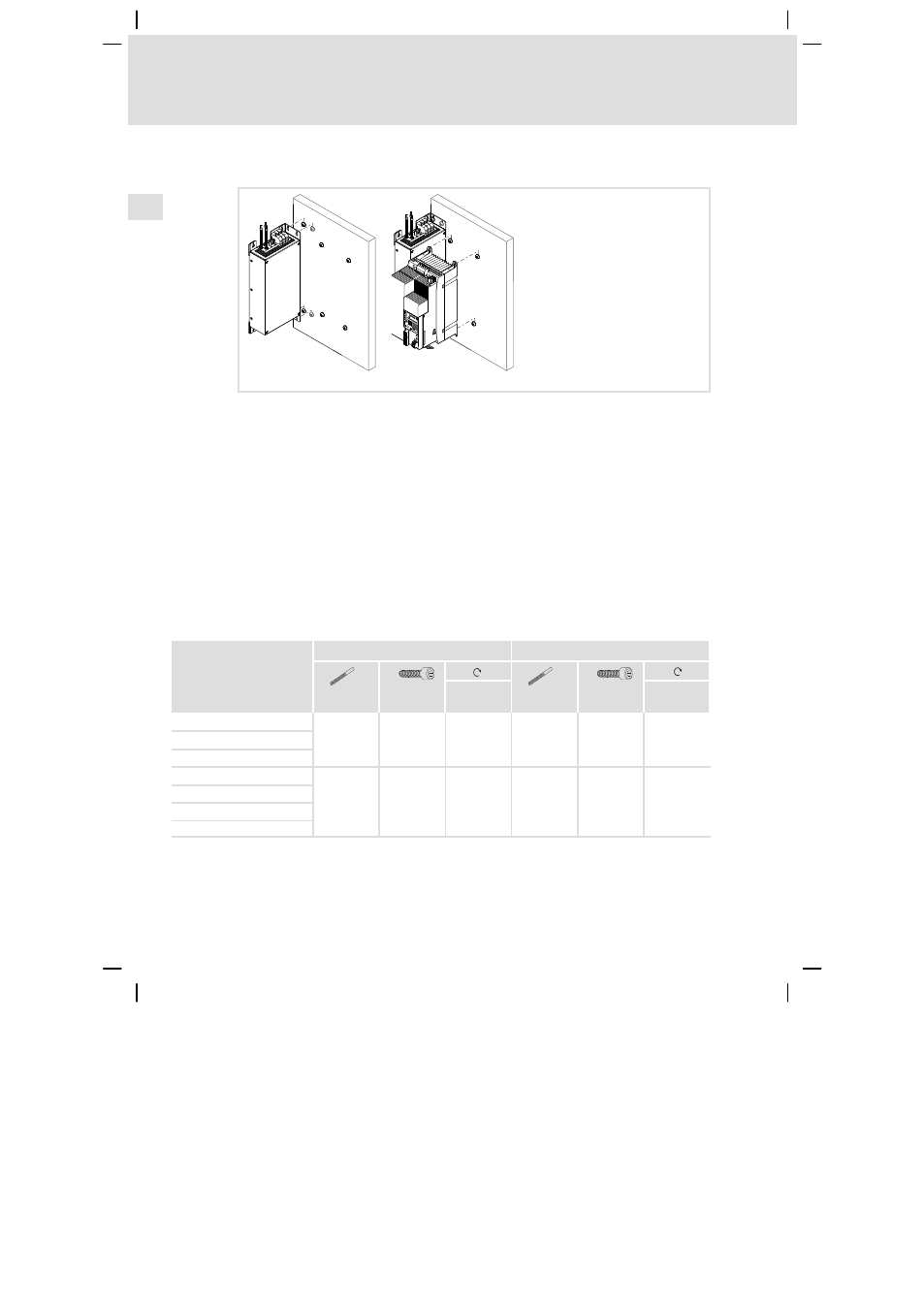

5.2.2 Mounting steps
E84ZESx008
Proceed as follows for installation:
1. Prepare threaded holes on the mounting plate.
2. Equip threaded holes with screws and washers.
– Use 8 screw and washer assemblies or hexagon socket screws with
washers.
– Do not fully tighten the screws.
3. Mount the filter onto the prepared mounting plate.
– Only tighten the screws hand−tight.
4. Mount the standard device onto the prepared mounting plate.
– Only tighten the screws hand−tight.
5. If required, pre−assemble further units.
6. Adjust all units.
7. Screw all units onto the mounting plate.
Filter Mounting plate Standard device
[Nm]
[lb−in]
[Nm]
[lb−in]
E84AZESM1834LD
M6 M6
4
35
M6
M6 x 12
...
M6 x 16
4
35
E84AZESM2234LD
E84AZESM2234LDN001
E84AZESM3034LD
M8 M8
6
62
M8 M8 x >16
4
35
E84AZESM3734LD
E84AZESM4534LD
E84AZESM4534LDN001
Tab. 2 Data of threaded holes and screws
