Mechanische Installation
Montagevariante
Bohrplan
5
l
21 EDK84AZESxx DE/EN/FR/ES/IT 4.0
5.2 Montagevariante

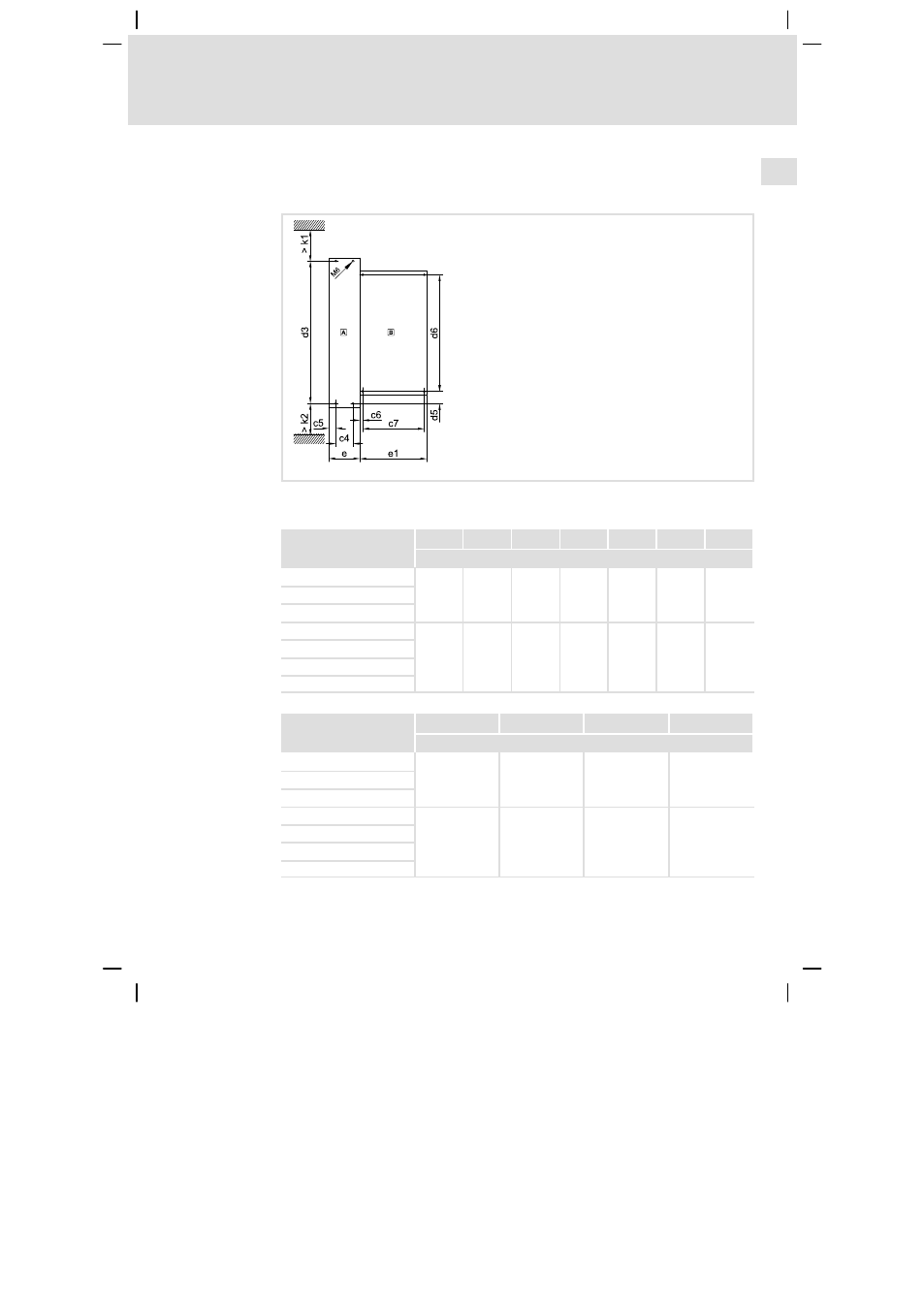

5.2.1 Bohrplan
E84AZESx004
0 Nebenbaufilter
1 Grundgerät
c4 c5 c6 c7 d3 d5 d6
[mm]
E84AZESM1834LD
50 20 12.5 180 415 35 340 E84AZESM2234LD
E84AZESM2234LDN001
E84AZESM3034LD
65 20 20 210 570 37 495
E84AZESM3734LD
E84AZESM4534LD
E84AZESM4534LDN001
e e1 k1 k2
[mm]
E84AZESM1834LD
90 205 55 60 E84AZESM2234LD
E84AZESM2234LDN001
E84AZESM3034LD
105 210 55 60
E84AZESM3734LD
E84AZESM4534LD
E84AZESM4534LDN001
