Lenze E84AZESR Mains filter-RFI filter 42-96A - Manual (Page 16)

Technische Daten
Mechanische Daten
4
l
16 EDK84AZESxx DE/EN/FR/ES/IT 4.0

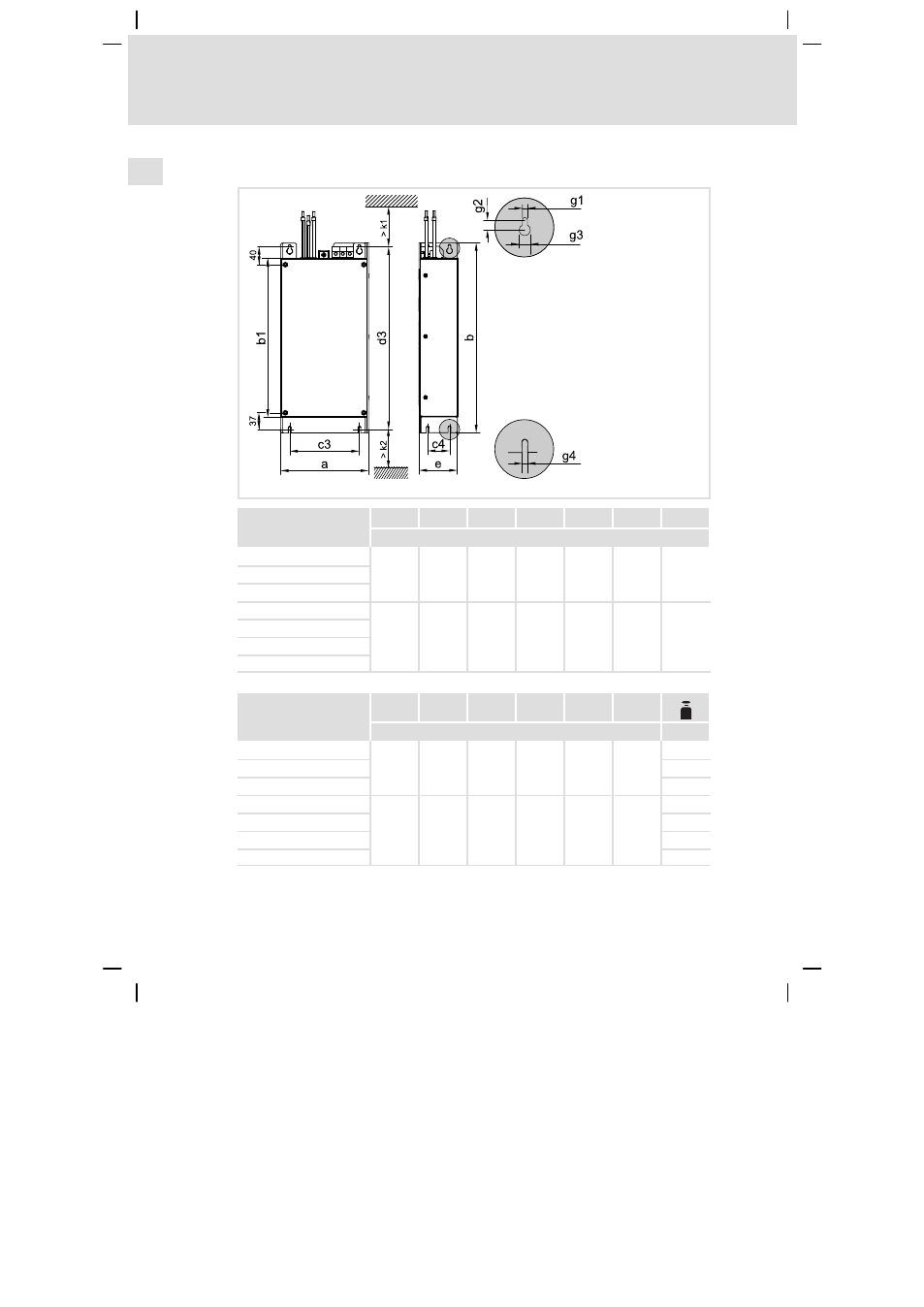

4.3 Mechanische Daten
E84AZESx002
a b b1 c3 c4 d3 e
[mm]
E84AZESM1834LD
205 436 365 160 50 415 90 E84AZESM2234LD
E84AZESM2234LDN001
E84AZESM3034LD
250 590 519 210 65 570 105
E84AZESM3734LD
E84AZESM4534LD
E84AZESM4534LDN001
g1 g2 g3 g4 k1 k2
[mm] [kg]
E84AZESM1834LD
6.2 11.5 13 6.5 55 60
7.5
E84AZESM2234LD 14
E84AZESM2234LDN001 18.5
E84AZESM3034LD
9 11.5 16.5 9 55 60
23
E84AZESM3734LD 25
E84AZESM4534LD 30
E84AZESM4534LDN001 32
