Leica MC120 HD / MC170 HD User Manual Instrument Setup 24
General Notes
Always keep the remote control for control-
ling the Leica MC120 HD / MC170 HD pointed
towards the camera's IR receiver.
The remote control does not respond if
the camera is in PC mode.
Instead of the remote control, the
optional footswitch (depending on
the configuration) can be used to trigger the
Leica MC120 HD / MC170 HD.
Description

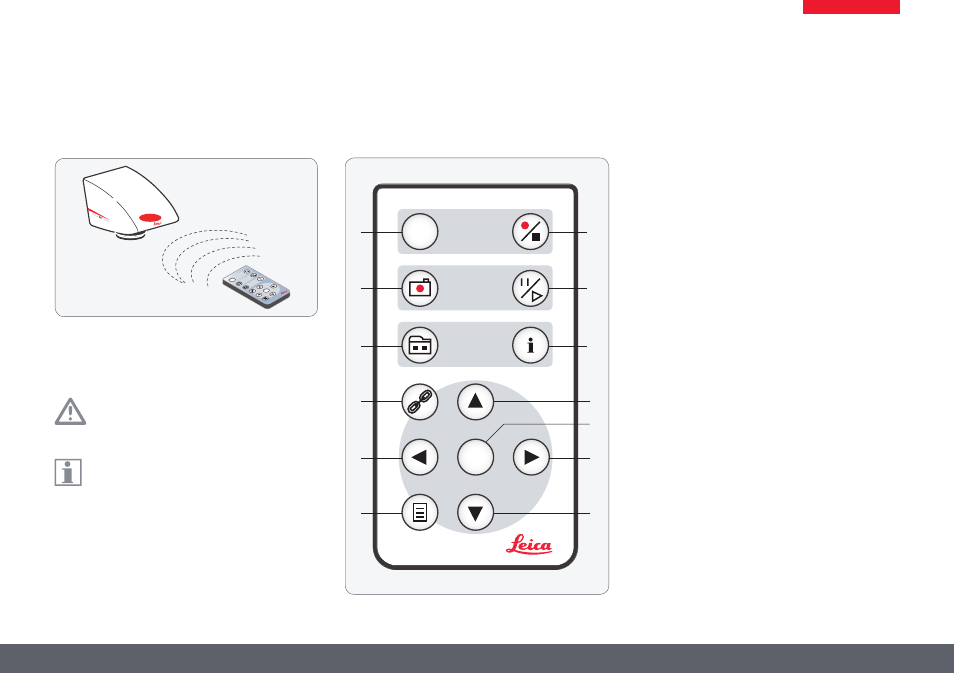

Remote control
1. Carry out white balance adjustment
2. Save still image to SD card
3. Show/hide gallery, retrieve data from
SD card
4. Pairing (camera - remote control)
5. Left/right button, select illumination mode
6. Show/hide user menu
7. Start/stop video recording
8. Stop/continue live image
9. Show/hide information box
10. Up/down button, select overlay
11. OK/confirm
WB
OK
RC2
7 1
8 2
9
10
11
3
4
5 5
10 6
WB
OK
RC 2
