53 Leica VT1200 / VT1200 S

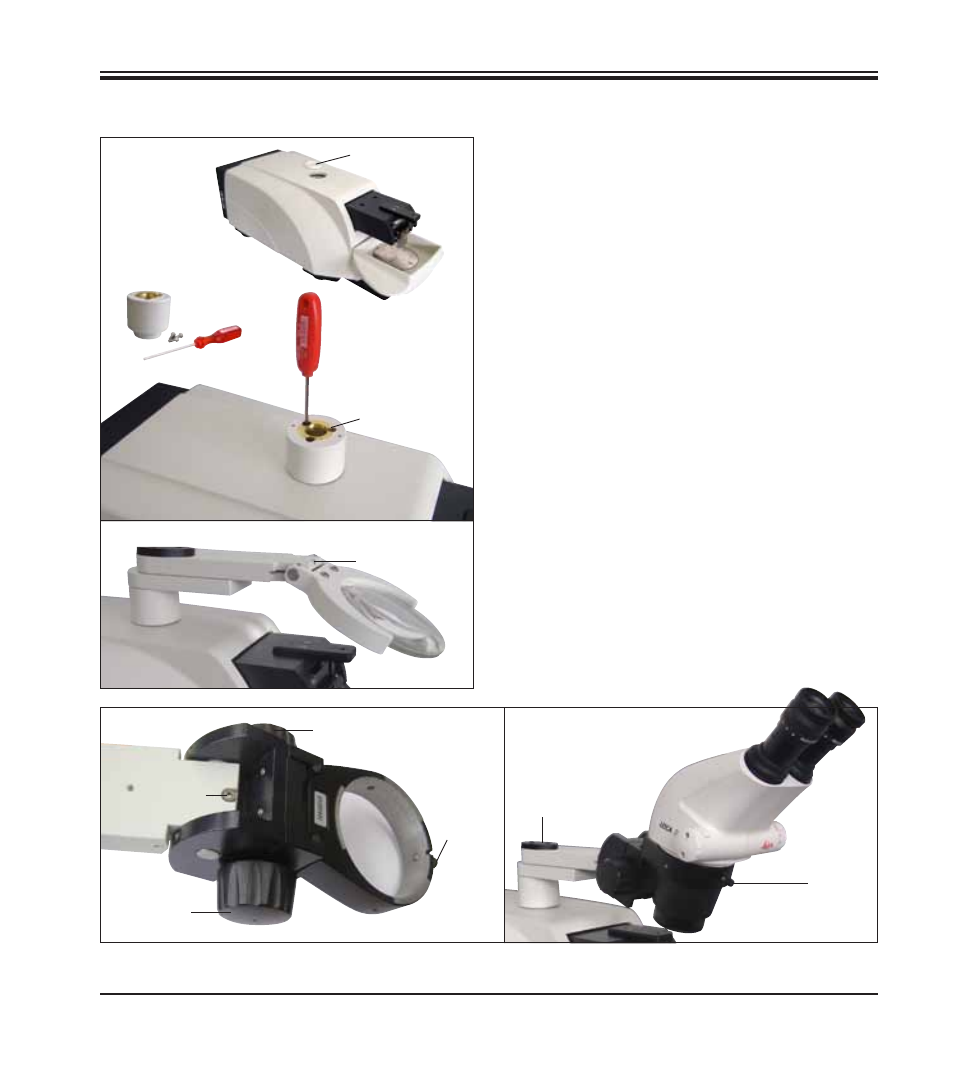

9.1.7 Installing the magnifier support or microscope support
Fig. 49
2
3
4
• First, remove the cover (3) from the basic
instrument and store it in a safe place.
• Insert the provided Allen screws (a) into the
hole (4) in the bearing bush. Use the size 3
Allen key to screw the screws into the open
slot on the top side of the basic instrument.
• Push the magnifier support or microscope sup-
port into the bearing bush as far as it will go.
• Adjust the magnifier to the desired inclination
angle and screw in the screw (2, Fig. 49) using
the size 3 Allen key, or
• Insert the S6 Stereozoom microscope into the
ring holder and attach it by screwing it down
(5, Fig. 50 b).
• Determine the desired inclination angle of the
microscope and fix it in place by tightening
the screw (6, Fig. 50a) clockwise using a size
3 Allen key.
• The microscope height can be adjusted using
the setting dials for height adjustment (7, Fig. 50a)
and adapted to the respective specimen.
Fig. 50a
a
Fig. 48
9. Ordering Information for Optional Accessories, Consumables and Spare Parts
Fig. 50b
5
6
7
5
7
Adapter for installa-
tion of a fiber-optic
light guide
