ILLUSTRATED PARTS LIST
2-31

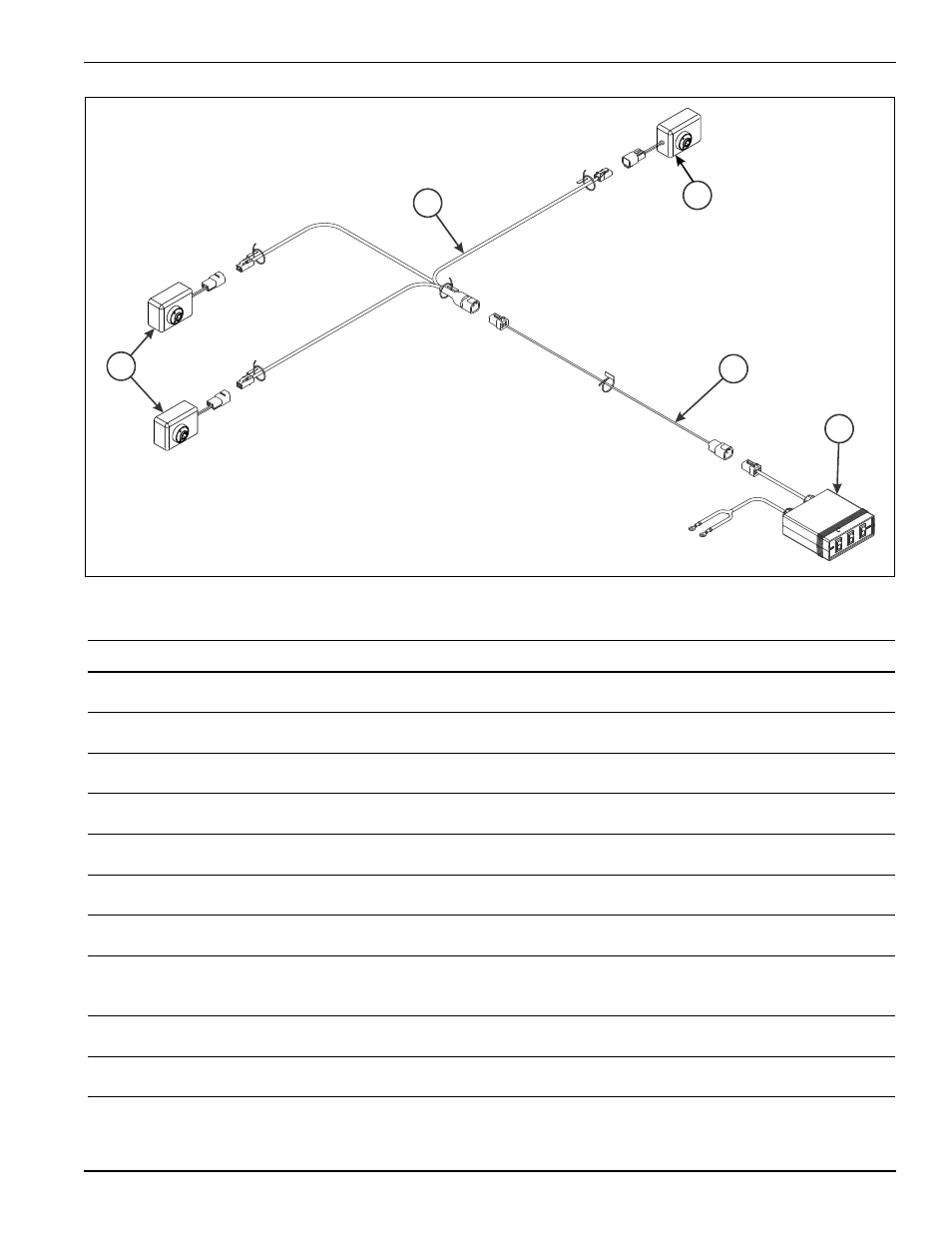

Figure 2-20: Electric Clutch Assembly (2 of 2)
Lighting And Electric Clutch Assemblies
ITEM PART NO. DESCRIPTION QTY.
1 1-512-010005-01 NUT, HEX LOCK 1/4-20 GRB 16
2 1-654-010047-06 SCREW, HEX HEAD CAP 1/4-20 X 1 GR5 2
3 2-368-010287 HARNESS STOR-AWAY 1
4 2P151 SMV W/ BRACKET 1
5 8K659 AMBER LIGHT 2
5 174436 LAMP, AG AMBER SINGLE LED 2
6 8K660 RED LIGHT 2
6 174435 LAMP, AG RED SINGLE LED 2
7 8K661 LIGHT MODULE 1
7 174437 MODULE, AG FLASHER CONTROL (LED) 1
8 8K663 EXTENSION WISHBONE (NOT SHOWN) 1
8 178513 HARNESS, LAMP 66 X 138 (LED) (NOT SHOWN) 1
9 9K815 BRACKET WELDMENT, LIGHT BAR 1
10 9K822 BRACKET WELDMENT, LIGHT 1
11 9K825 BACKET WELDMENT, LIGHT 1
12 171636 HARNESS, AG 40’ 1
12 178517 HARNESS, 7 PIN/4 PIN WP, 40’ (LED) 1
13 164251 HARNESS, POINT ROW EXTENSION 1
14 171637 CONTROL CASE, SEEDER CLUTCH 1
15 171638 HARNESS, SEED CLUTCH BRANCH 1
16 9K746 BRACKET WELDMENT, LIGHT BAR REF
17 9K817 BRACKET WELDMENT, LIGHT BAR REF
18 4K956 ELECTRIC CLUTCH REF
18
15
18
13
14
electrical assembly p2
