Machine Operation
The PTO pump drive and oil cooler option is for tractors
with less than required hydraulic output needed to operate
hydraulic-driven vacuum fan and other planter hydraulic
requirements.
A 1000 RPM PTO is required to operate the PTO-driven
hydraulic pump.
PTO pump option consists of a 1⅜"-21 or 1¾"-20 spline,13.5
GPM 2000 PSI pump, 10 gallon capacity hydraulic reservoir,
15 GPM-rated oil cooler, spin-on 10-micron oil filter, and
required hydraulic valves and fittings.
Vacuum fan assembly
Oil cooler
Hydraulic
motor

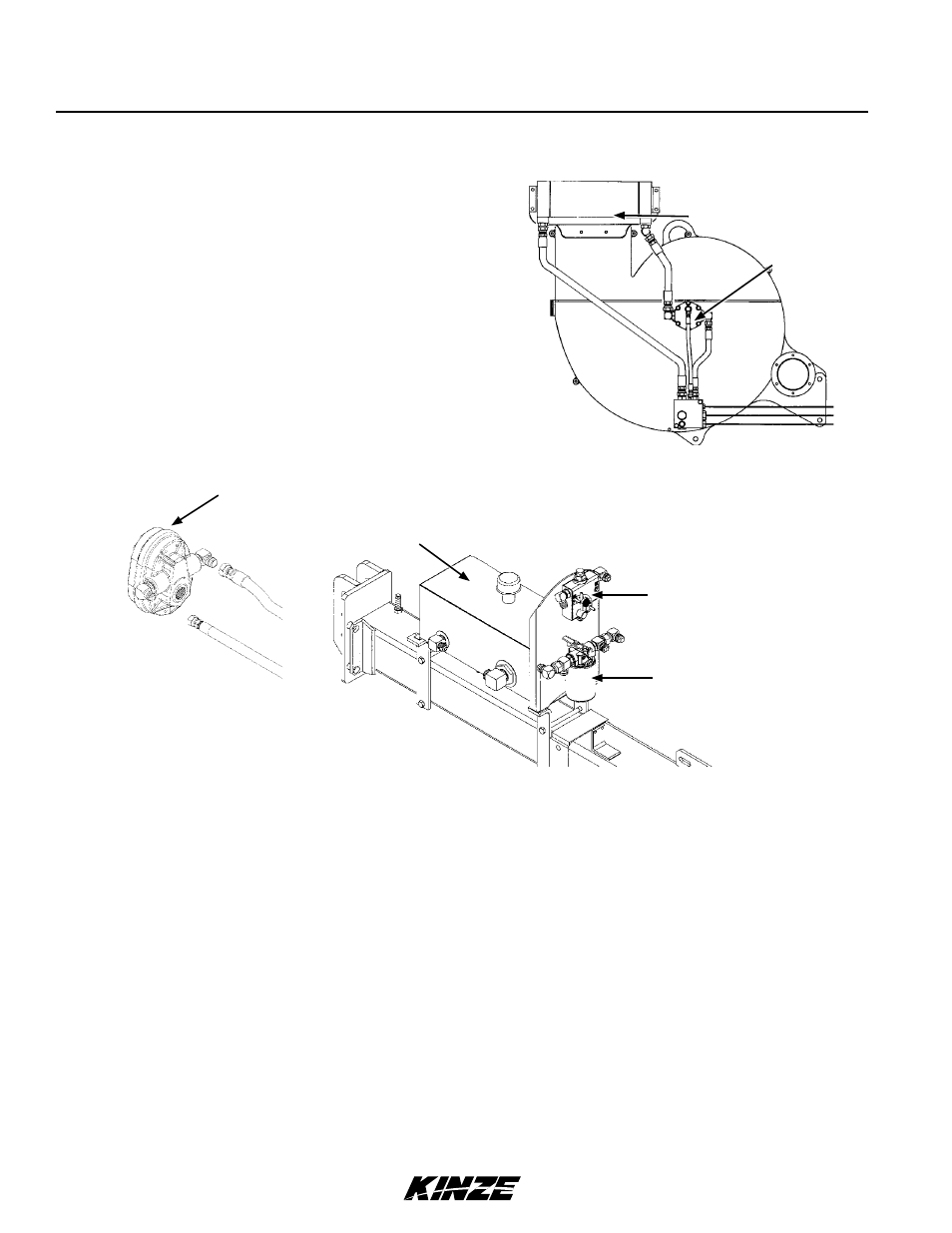

PTO PUMP DRIVE AND OIL COOLER OPTION
Flow control
valve
PTO-driven hydraulic pump
(1⅜" spline PTO pump shown)
Oil filter
(10 Micron)
Reservoir
