Kinze 3500 Lift and Rotate Planter Rev. 7/14 User Manual
Page 105

TM
Model 3500
M0240-01
6/11
6-9

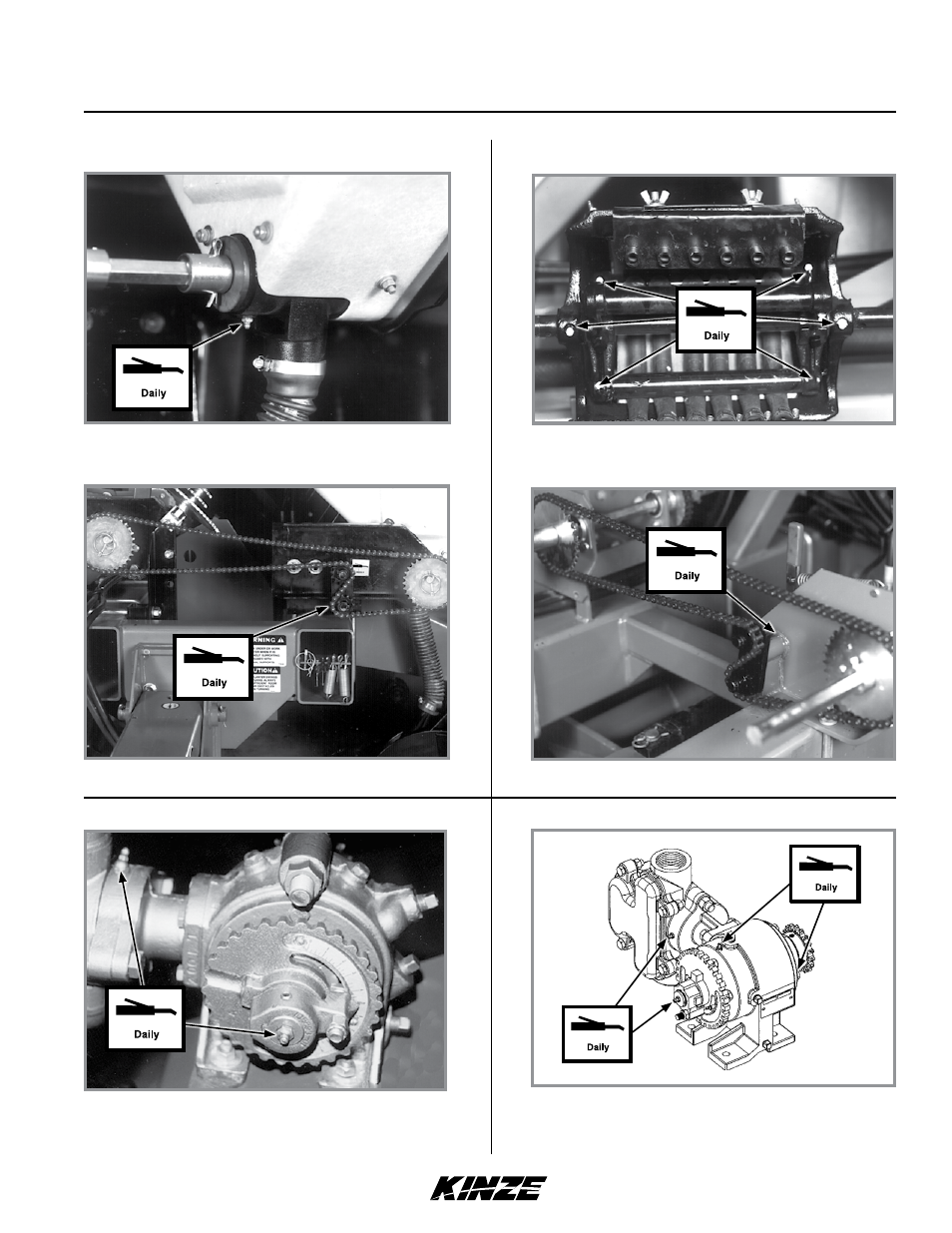

Lubrication and Maintenance
DRY FERTILIZER ATTACHMENT
Fertilizer hopper - 2 per hopper
LIQUID FERTILIZER SQUEEZE PUMP
Squeeze pump - 8 per pump
NOTE: Grease fittings are on each end of roller
assemblies. Rotate pump for access.
Fertilizer transmission - 1 per transmission (Idler)
Squeeze pump drive plate - 1 per idler
Piston Pump -2
NOTE: Fill on outboard stuffing box until
lubricant seeps out of drain hole in bottom.
Liquid Fertilizer Piston Pump - 4
NOTE: Fill on outboard stuffing box until
lubricant seeps out of drain hole in bottom.
LIQUID FERTILIZER PISTON PUMP
