Lubrication and Maintenance
Before storing planter, disengage granular chemical drive
by rotating throwout knob ¼ turn counterclockwise. Remove
drive chain and empty and clean all granular chemical
hoppers. Clean drive chains and coat them with a rust
preventive spray or submerge chains in oil. Inspect and
replace worn or broken parts.
Install hoppers and chains. Check chain alignment.
before storing planter, inspect each spring tooth
incorporator and replace worn or broken parts. Check for
loose hardware and tighten as needed.
Disengage
Engage

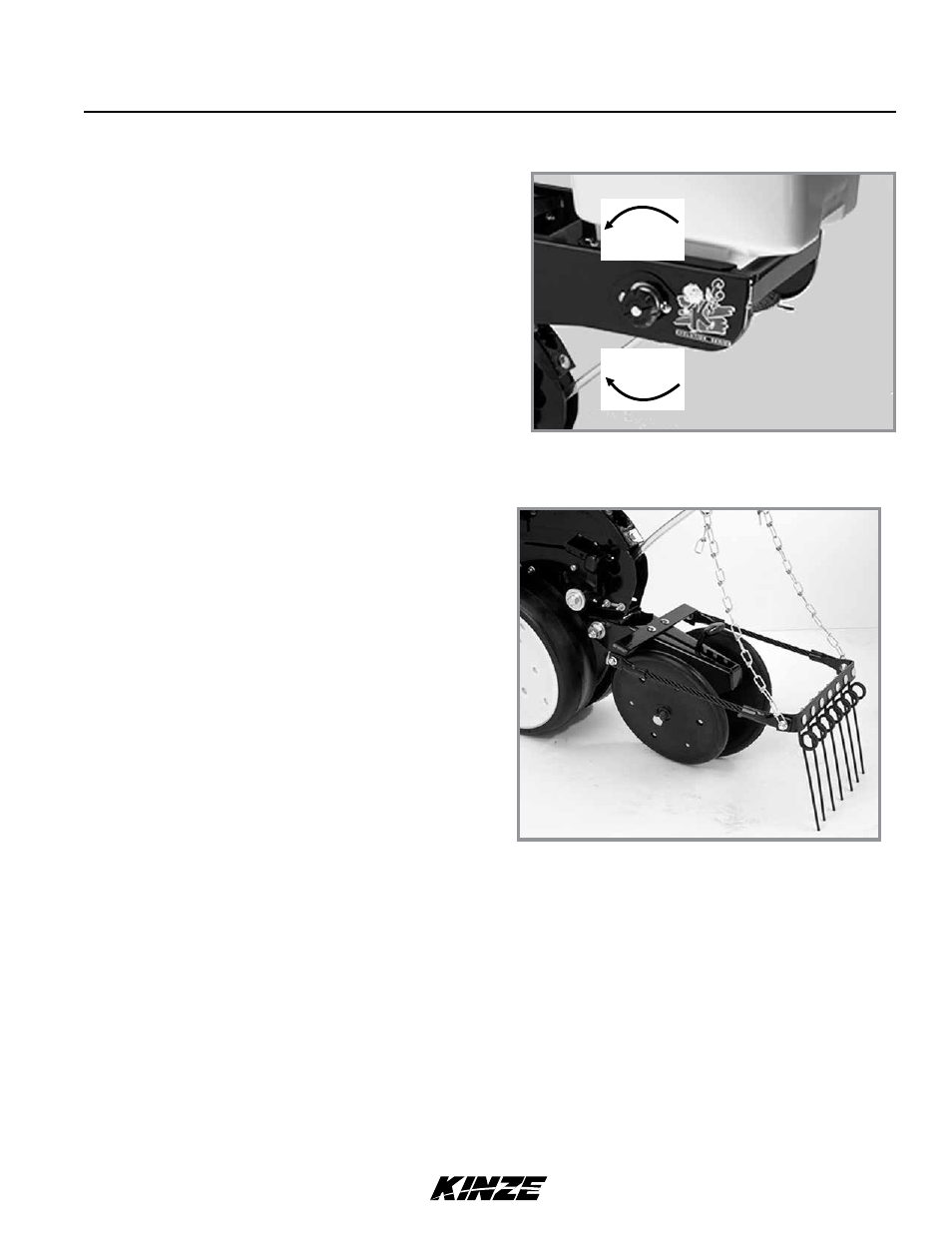

GRANULAR CHEMICAL ATTACHMENT
SPRING TOOTH INCORPORATOR
