Lubrication and Maintenance

PTO PUMP SHAFT COUPLING (PTO
PUMP DRIVE AND OIL COOLER
OPTION)

NOTE: Clean and grease PTO shaft coupling
each time pump is installed.

NOTE: Apply coating of high-speed industrial
coupling grease, such as Chevron

Coupling

Grease, that meets AGMA CG-1 and CG-2
Standards to extend shaft spline life.

Chevron

trademark is owned by Chevron Products

Company. AGMA is the acronym for the American Gear
Manufacturers Association.

1⅜"-21 spline PTO pump shown

LIqUID FERTILIzER PISTON PUMP
CRANKCASE OIL LEVEL

Check crankcase oil daily and maintain at plug level.
Fill as needed with EP 90 weight gear oil. Total oil
capacity is approximately ¾ pint.

Refer to operator and instruction manual supplied
with pump and flow divider for more information.

Plug

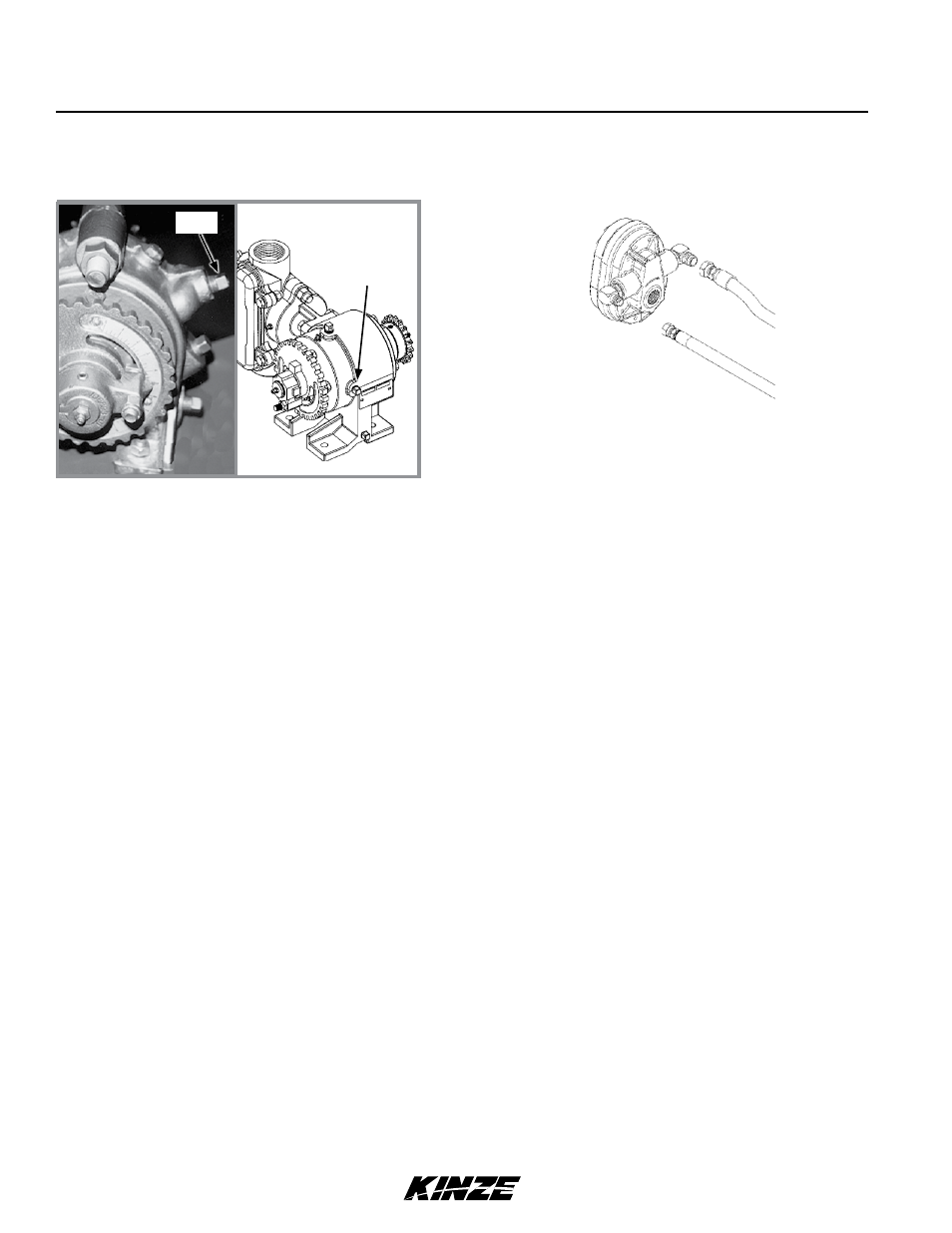

Piston pump oil fill plug location
