Configuring Custom Programs
The Legato 130 Programmable Models offer the
flexibility of configuring custom programs including
multistep programs. The programs and steps can also be
triggered to start and stop with events and external I/O,
and user defined inputs. The maximum number of steps is
100 for all the programs.
Press to see the pump
information screen

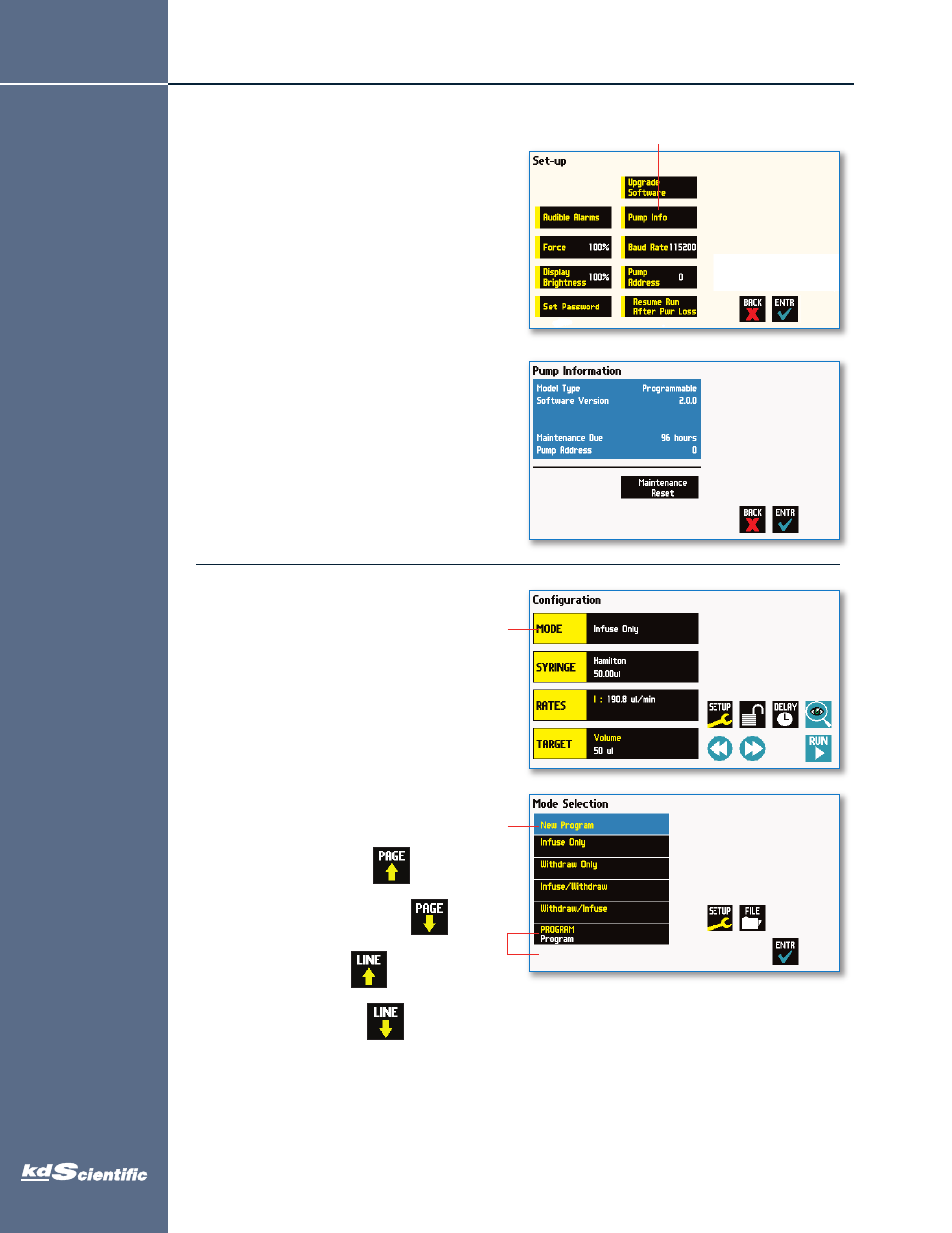

Configuring a New Custom Program
To display the Mode Selection
screen press Mode.
The Mode Selection screen will be displayed
Select New Program
View programs up a page
View the programs down a page
Views up the program
Views down the program
Select Mode
Press
Custom
Program
