Product Over view
K
D
S
L
e
g
a
to
1
3
0
U
s
e
r’s
M
a
n
u
a
l
KD Scientific Legato 130 Syringe Pump User’s Manual
Publication 5617-008 Rev D
OPERATING INSTRUCTIONS
POWER CONNECTIONS
1.
Plug the power supply into the pump.
2. Connect to a properly rated line cord. The Legato
100 Series power supply has a DC power
input connector on the rear of the unit. The operating
range for the Legato 130 series is 100 – 240
VAC, 50-60 Hz.
3. Turn on the main power switch.
!
CAUTION: Do not connect to
firewire ports on a computer.
Damage may occur to the
pump or computer.
Run / Fault LED
User Interface
Touchscreen
phone
508.429.6809
fax
508.893.0160
web
www.kdscientific.com

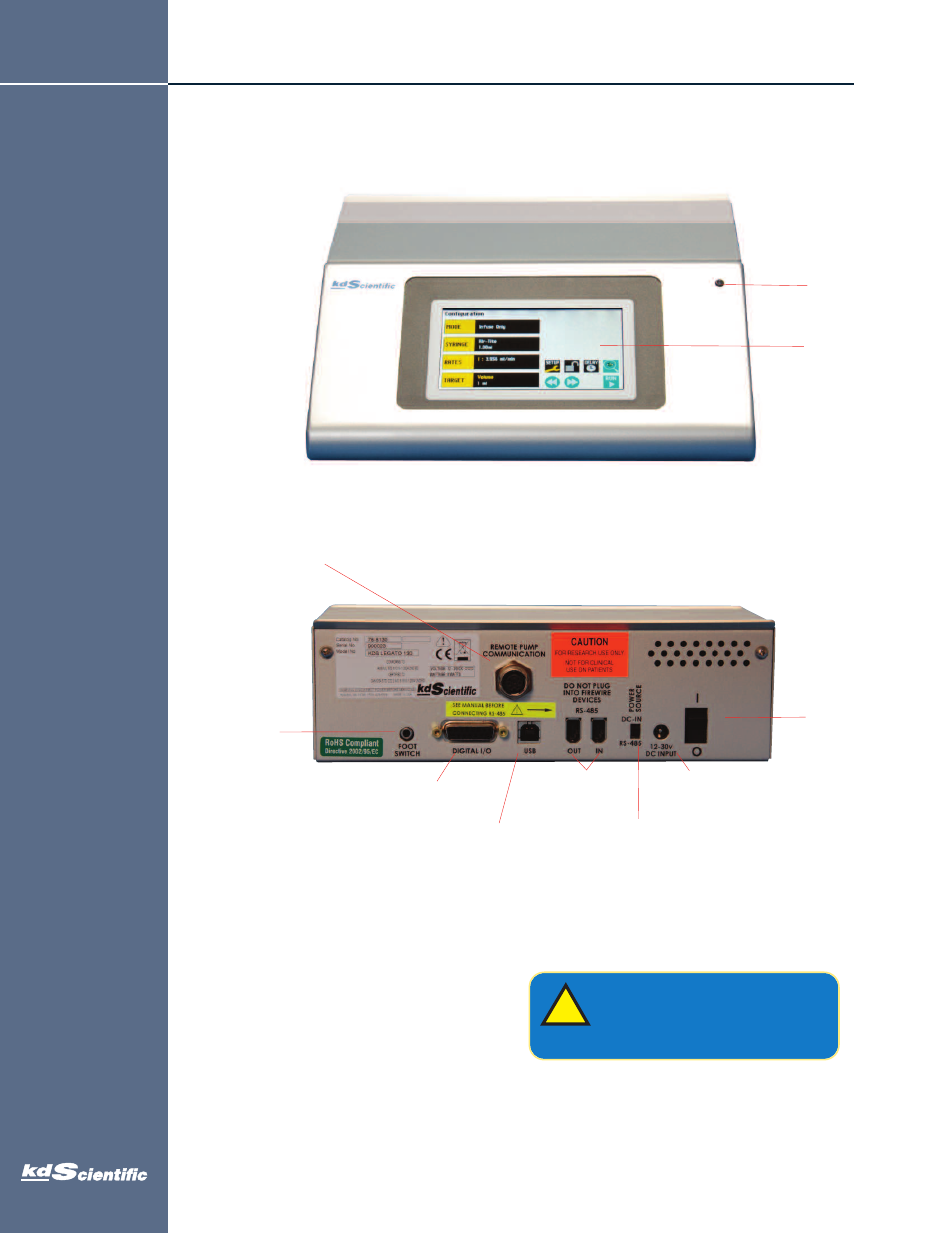

Close up view of the Legato 130 rear connections
Foot Switch
I/O Connector
USB Serial Input
(Type B)
RS-485 Connection
(Pump to Pump)
Main Switch
DC Power Input
*Power Source -
When powering a pump
in a chain through an RS-
485 cable, toggle switch
to RS-485. Only one
pump can be powered
from the master through
the RS-485.
Pump Mechanism Connector
