Target Volume/Time Selection

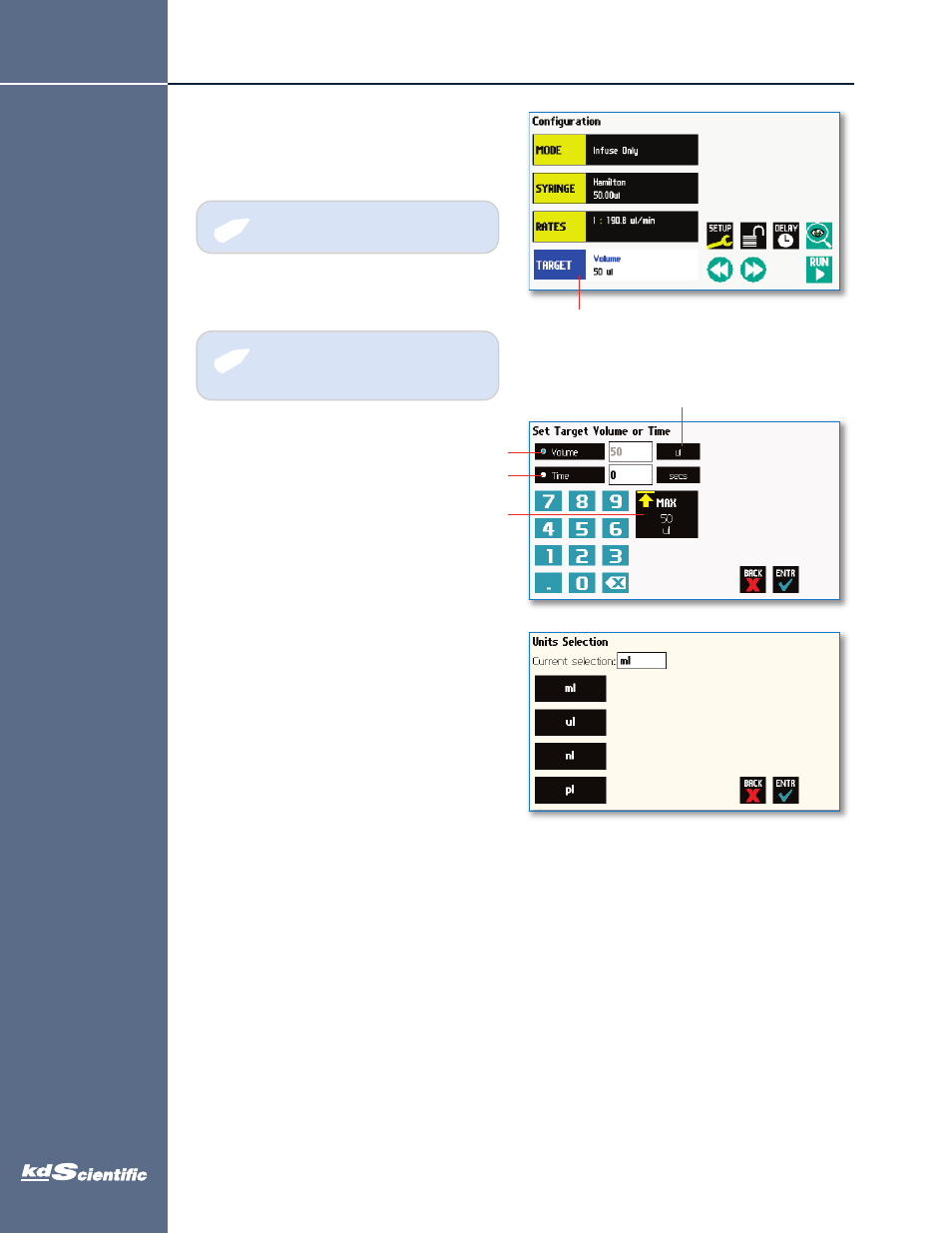

1. In the Configuration Display enter the target
volume or time. In this example we want a
volume of 50 ul.
2. Depending on the Mode either Target Volume
(I/W or W/I) will appear or Target Volume or
Target Time Selection (I only or W only).
3. To change the units, press the units.
4. In the Units Selection Display select the
volume units.
✐
NOTE: For time enter h:m:s. or press
again to select secs. Time is accurate to
+/- 0.01secs. Remember to enter the :
✐
NOTE: Target time is only allowed in
infusion only or withdrawal only modes.
Press to select target volume
Press to select the
maximum volume
for the syringe
size selected
Press to select target time
Press to change the units
