2013-01-29/00355277
Data Sheet 706030 JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 8/12

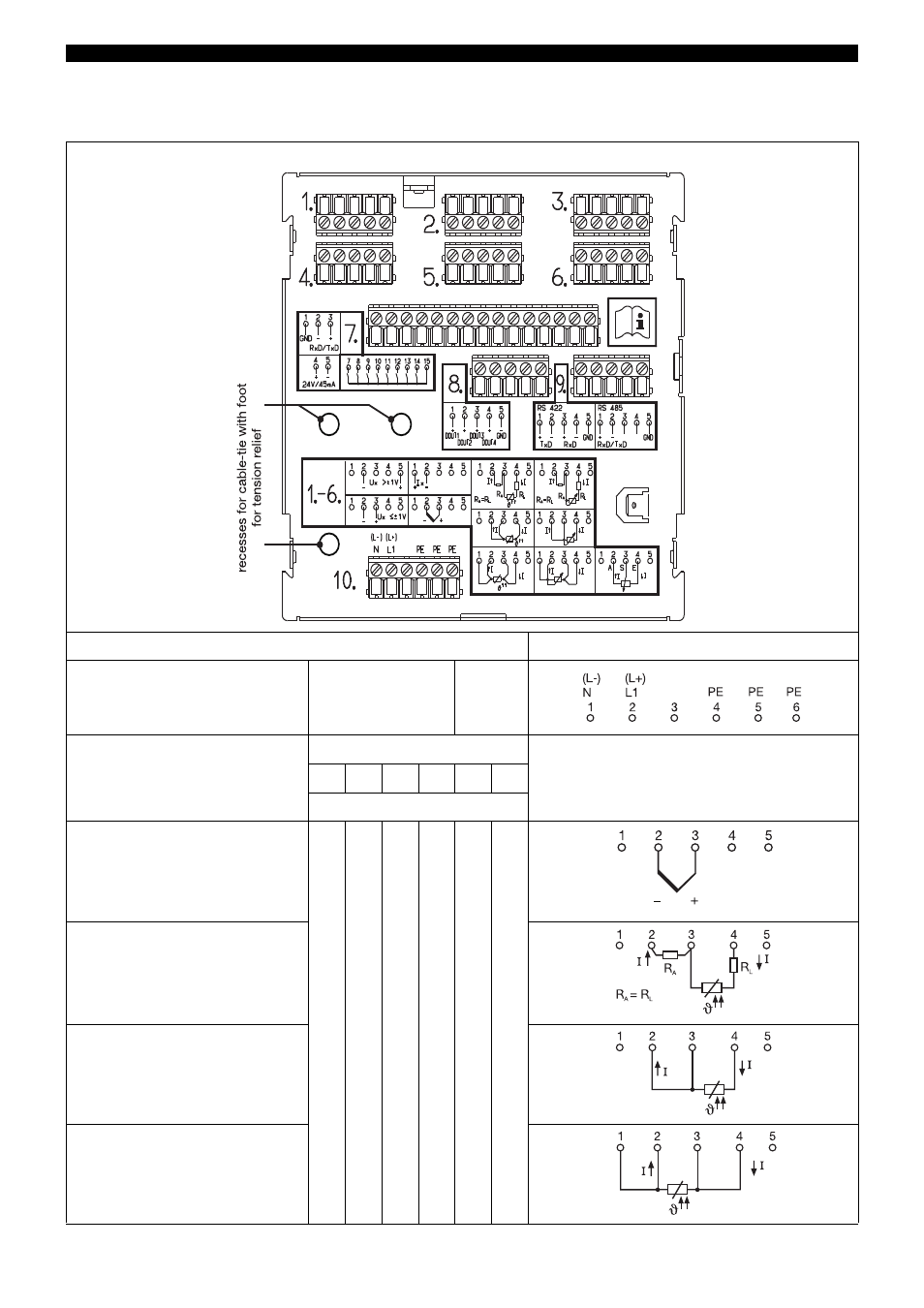

Connection diagram for maximum terminal assignment
Rear view of 3/6-channel version with plug-in screw-clamp connectors
Connection for 3/6-channel version Diagram
Supply as on label N neutral
L1 line
PE protective earth
Connector
10.
Analog inputs Inputs
1 2 3 4 5 6
Connector
Thermocouple
1. 2. 3. 4. 5. 6.
Resistance thermometer
in 2-wire circuit
Resistance thermometer
in 3-wire circuit
Resistance thermometer
in 4-wire circuit
