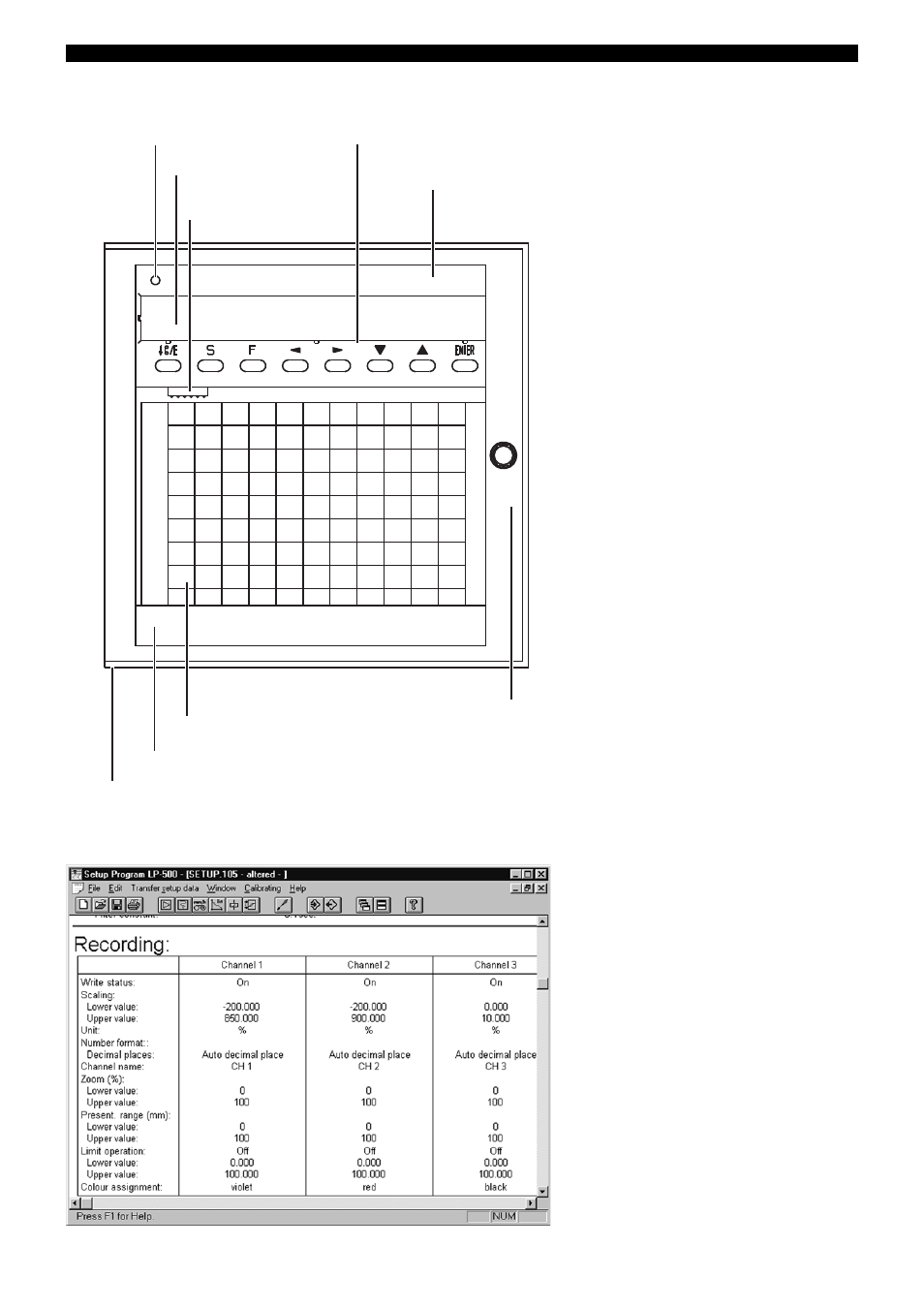

Display and controls
Setup program
Fault signal LED
24-character green LED
dot-matrix display
Print head
Keys for operating
and programming
Setup interface
(behind the swing-up
LED dot-matrix display)
Panel-mounting housing to IEC 61554 in galvanized sheet steel
Channel label
Chart paper
Housing door
Operation and
configuration
At the recorder
The eight keys on the instrument are used
for operating the instrument, and to config-
ure all the parameters essential to the op-
eration.
The 24-character dot-matrix display is
available for indicating and monitoring the
measurements and parameters.
Via the setup program for PC
(accessory)
The recorder can be configured using the
setup program for PC (see diagram, bot-
tom left) more conveniently than by using
the instrument keys.
The configuration data of a configured in-
strument can be read out and altered using
the setup program.
For a further instrument with the same con-
figuration, the data can be copied through
the setup program. The configuration data
can be archived on data media and printed
out.
In addition to the programming possibilities
from the keys of the recorder, the setup
program offers the following extra func-
tions:
-
Setting different print colors
- Customer-specific linearizations
- Setting the printing mode for the texts
(printing mode: “Overwrite measure-
ment trace” or “Interrupt measurement
trace”)
- Printing priorities
- Math and logic module editor
- Various settings can be managed
Customer-specific linearizations
The setup program offers a choice be-
tween linear, square law and cube law line-
arization. There can be up to 41 calibration
points for linear and square law linerariza-
tion, and up to 61 calibration points for
cube law linearization. These calibration
points are used to determine the coeffi-
cients for polynomials which are defined
for each section, so that even a few calibra-
tion points produce a smooth graph.
Accuracy: depends on the shape of the
graph and the selected linearization.
Language
The language setting (English, German,
French) appears in the print-out and on the
LED dot-matrix display.
