8

3 Mounting

3.1

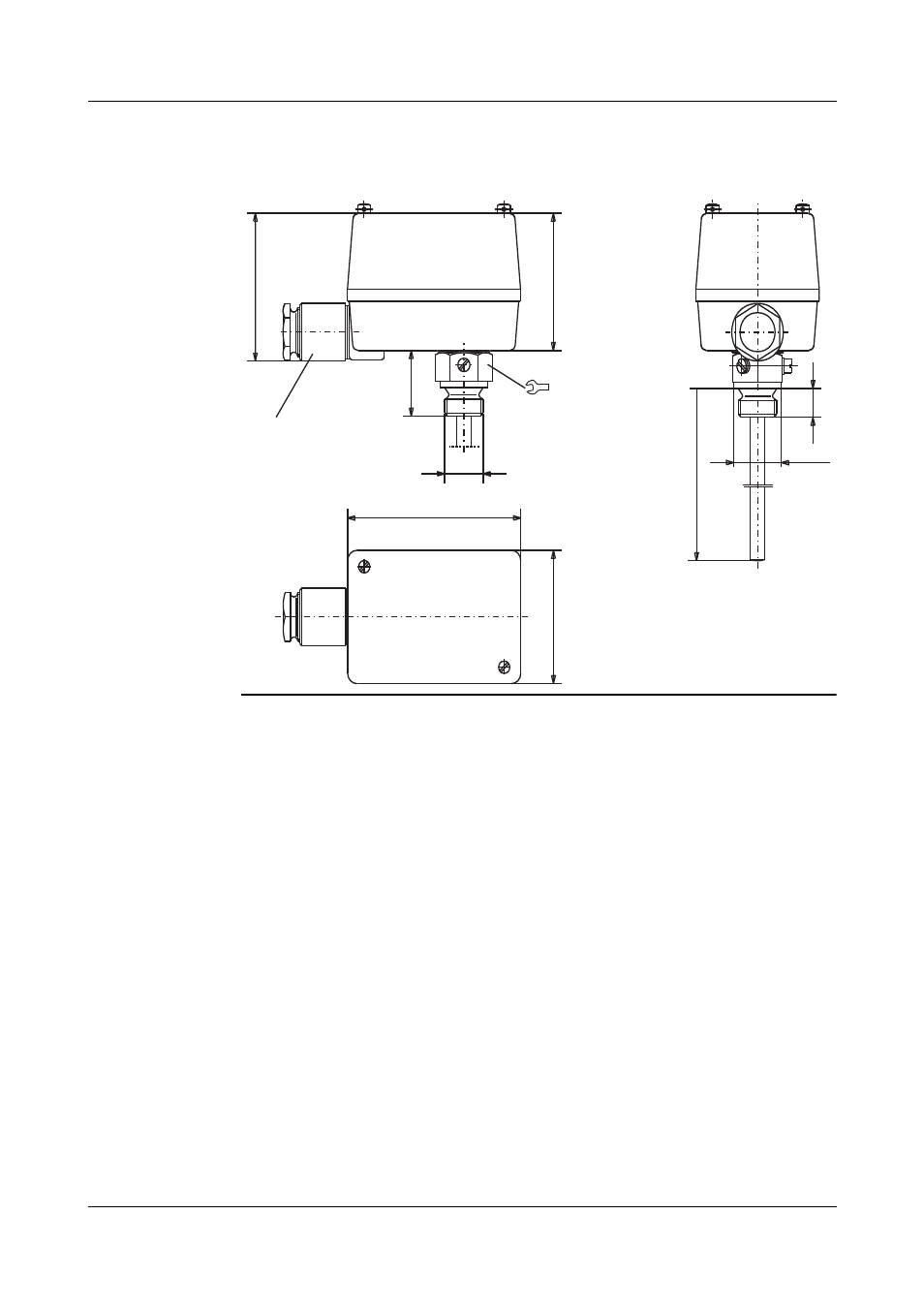

Dimensions

ATHs-SE-2,
ATHs-SE-20
with
sheath "20"
(up to +150 °C)

K M24x1,5
M 20x1,5
DIN 89280-Z14

27

70

66

G1/2

33

14

Ø 26

S = max. 200 (150)

67

94
