3 Mounting
10
3.2 Opening the case
Opening

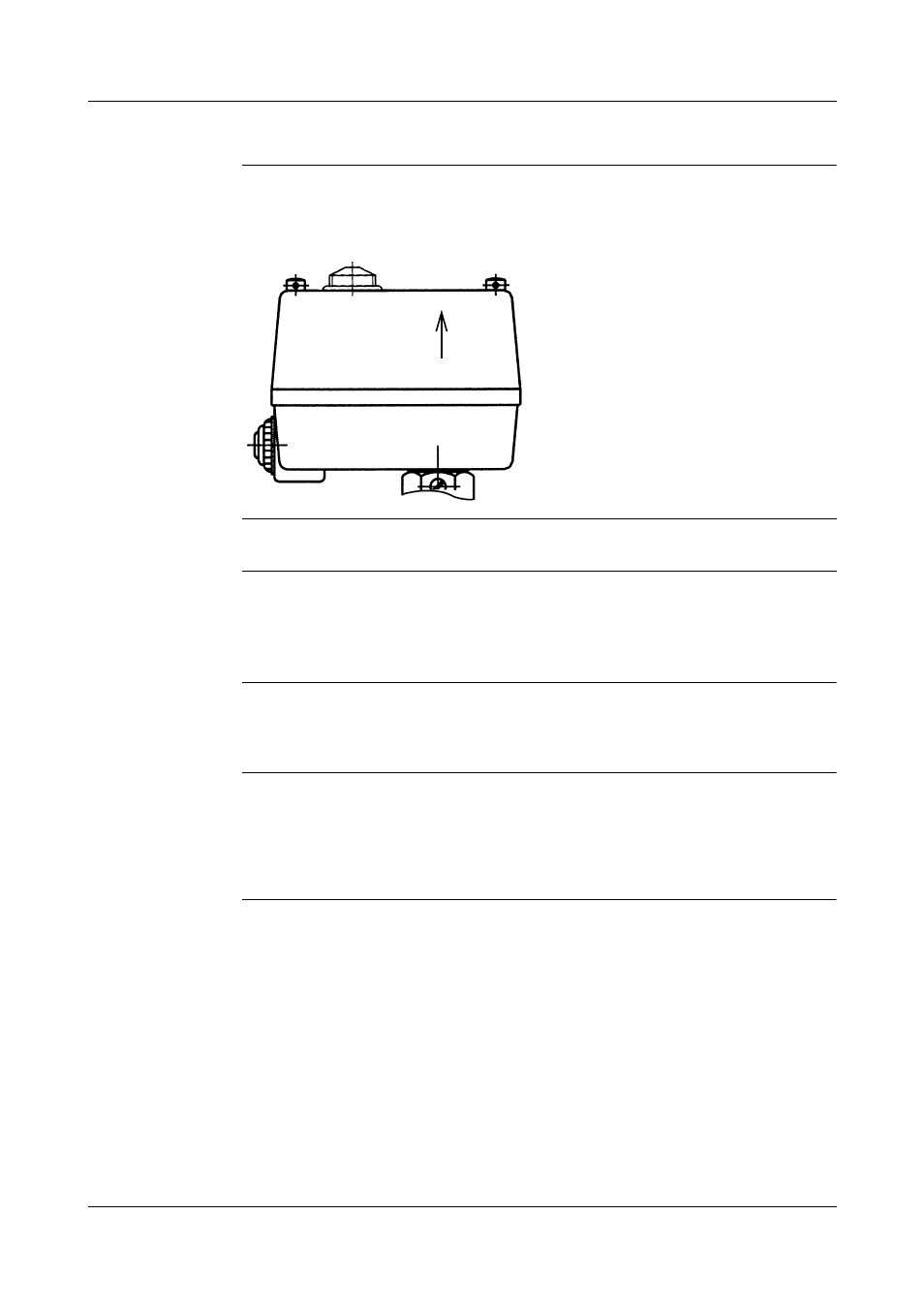

✱ Unscrew the two lead-sealable cheese-head screws ( 5 )
✱ Remove the upper part of the case ( 1 )
3.3 Fixing the surface-mounting thermostat
Operating
position unrestricted
(for open-air mounting on request)
3.3.1 Code s (rigid stem)
The case journal is secured in the enlarged open end of the sheath by two
fixing screws.
3.3.2 Code f (with capillary)
by ½" pipe thread on the case journal
( 1 )
( 5 ) ( 5 )
V
Ensure that the gasket is seated correctly when reassembling!
