5 Settings

5.1

Setting the limit value

✱ Open the case.

➈ Section 3.2 “Opening the case”, page 10.

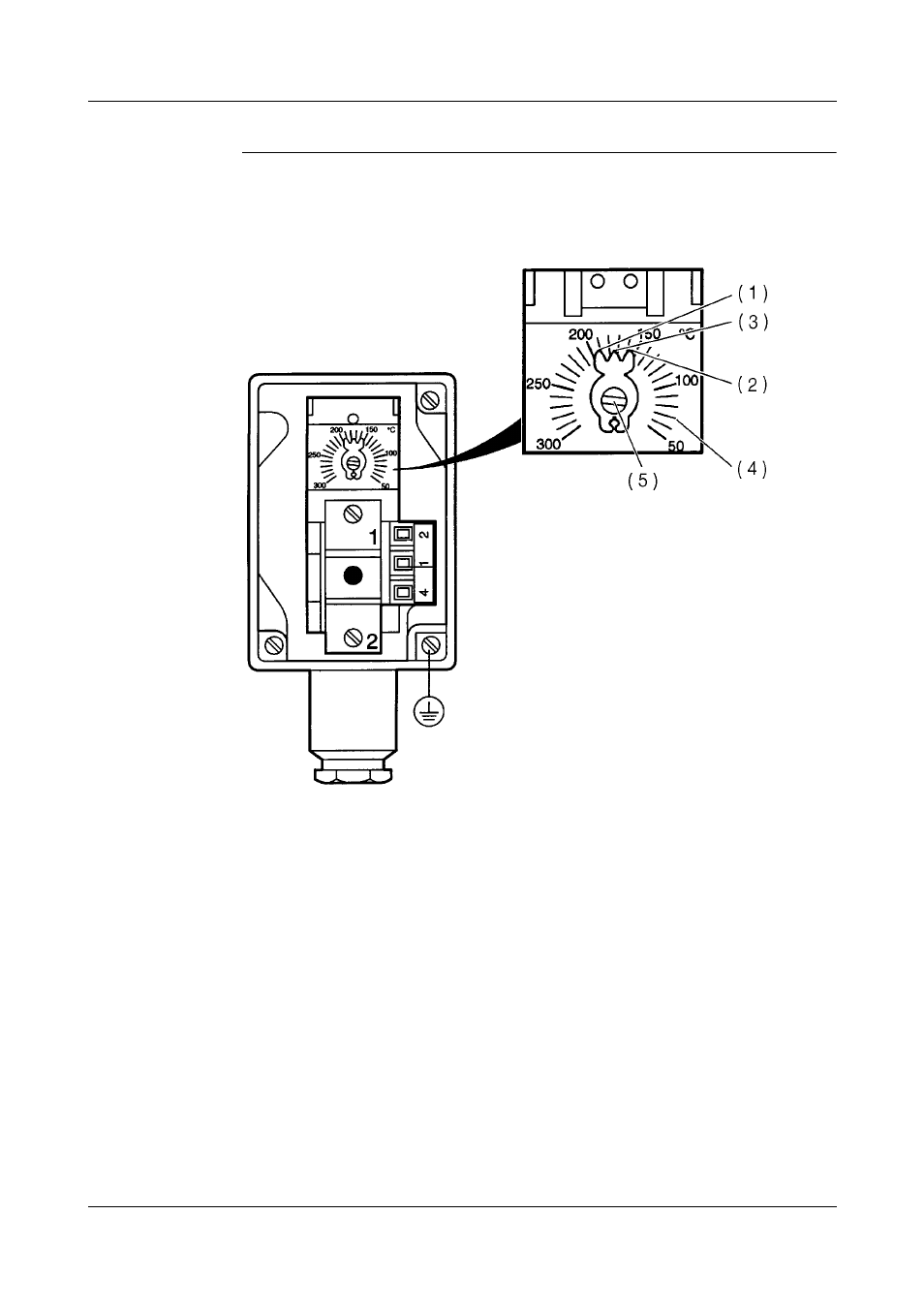

✱ Set the limit value on the set point setter ( 5 ) using a screwdriver.

( 1 ) Top stop

( 2 ) Bottom stop

( 3 ) Set point indicator

( 4 ) Scale division

( 5 ) Set point setter
