15
4 Installation
4.2 Electrical connection
✱ Open the case.
➈ Section 3.2 “Opening the case”, page 10.

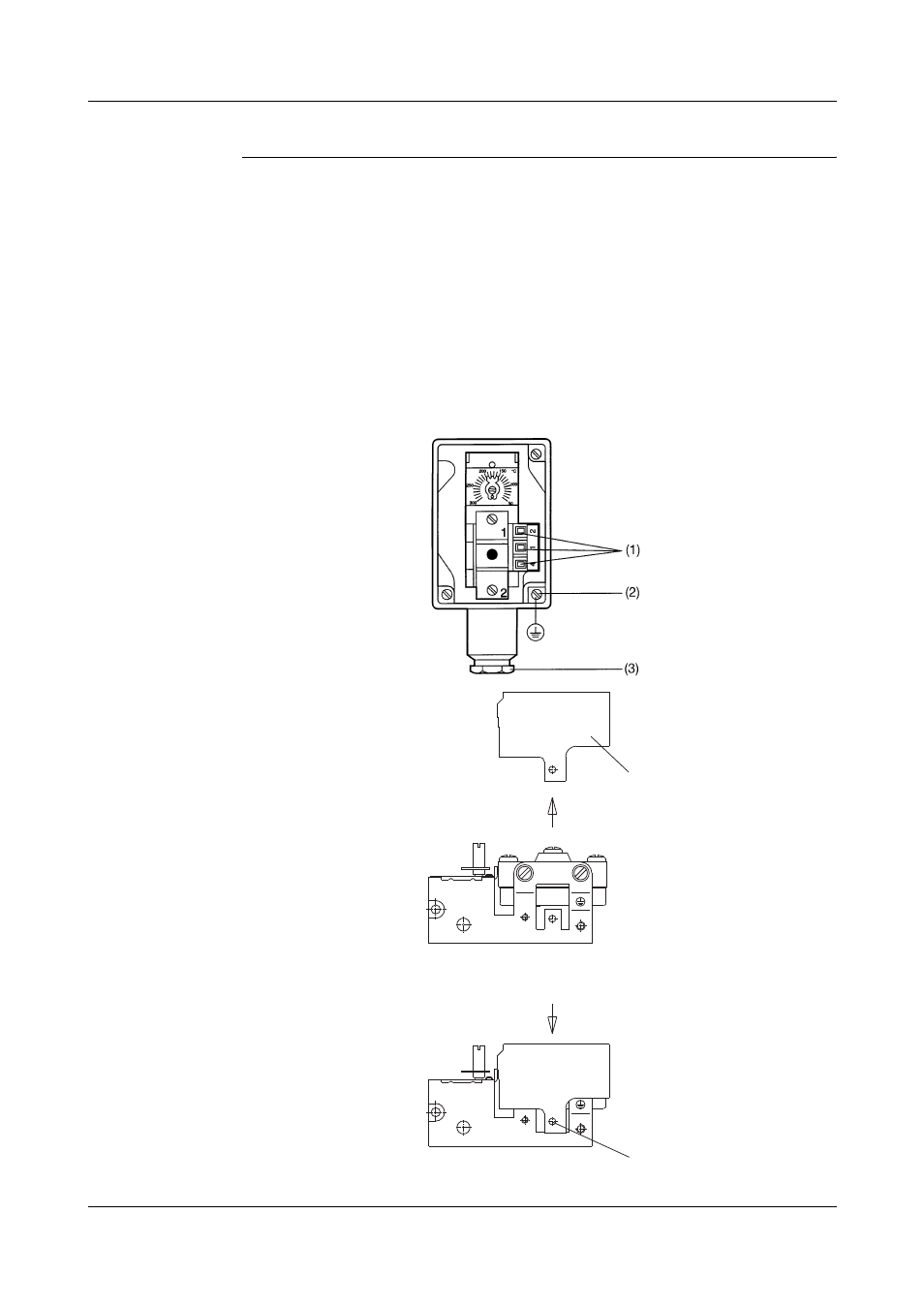

✱ Pass the connection cable (cable diameter 10 — 16,5 mm) through the
screw connection (3). Fitting type"X" (no special tools), screw connection
up to 2.5 mm
2
conductor cross-section.
✱ Remove the protective cover ( 4 ).
✱ Establish the connection to the terminals ( 1 ) in accordance with the appro-
priate connection diagram.
✱ Connect the protective conductor to terminal PE ( 2 ).
✱ Refit the protective cover ( 4 ) and snap it onto the guide lug ( 5 ).
( 4 )
( 5 )
