2009-12-15/00467412
Data Sheet 70.6510 JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 9/10

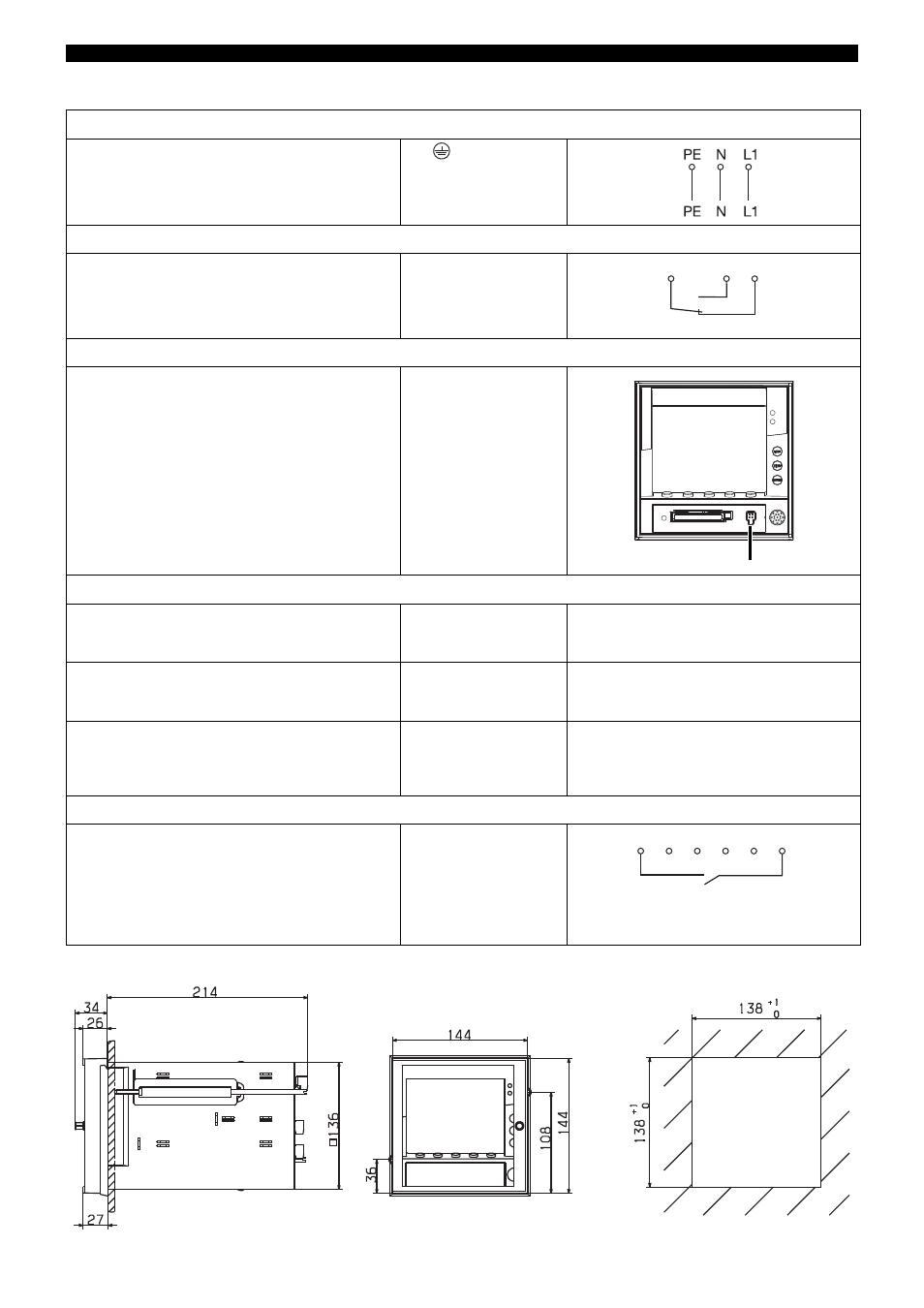

Dimensions
Supply
Supply PE
N (L-)
L1 (L+)
Relay outputs (extra code)
Relays K1, K2, K3
changeover (SPDT) 30, 31, 32
Setup interface (included in delivery)
The setup interface can be found behind a protective flap
on the front of the instrument.
Interfaces (extra code)
RS232
9-pole SUB-D socket
(switchable to RS485) 20 2 RxD Received Data
3 TxD Transmitted Data
5 GND Ground
RS485
9-pole SUB-D socket
(switchable to RS232) 20 3 TxD+/RxD+ Transmitted/Received Data +
5 GND Ground
8 TxD-/RxD- Transmitted/Received Data -
Ethernet
RJ45 socket 21 1 TX+ Transmitted Data +
2 TX- Transmitted Data -
3 RX+ Received Data +
6 RX- Received Data -
Binary inputs (extra code)
Supply voltage 24V/50mA
Binary inputs
voltage-controlled
LOW = -3 to +5V DC
HIGH = 12 to 30V DC 33
6 +24V auxiliary supply
5 GND
4 binary input 1
3 binary input 2
2 binary input 3
1 binary input 4
1 2 3
Setup interface
2 3 4 5 6 1
+ –
Example: binary input 4, operated from the
internal supply voltage
Size 26 increases to 27 if the IP65 seal is used.
