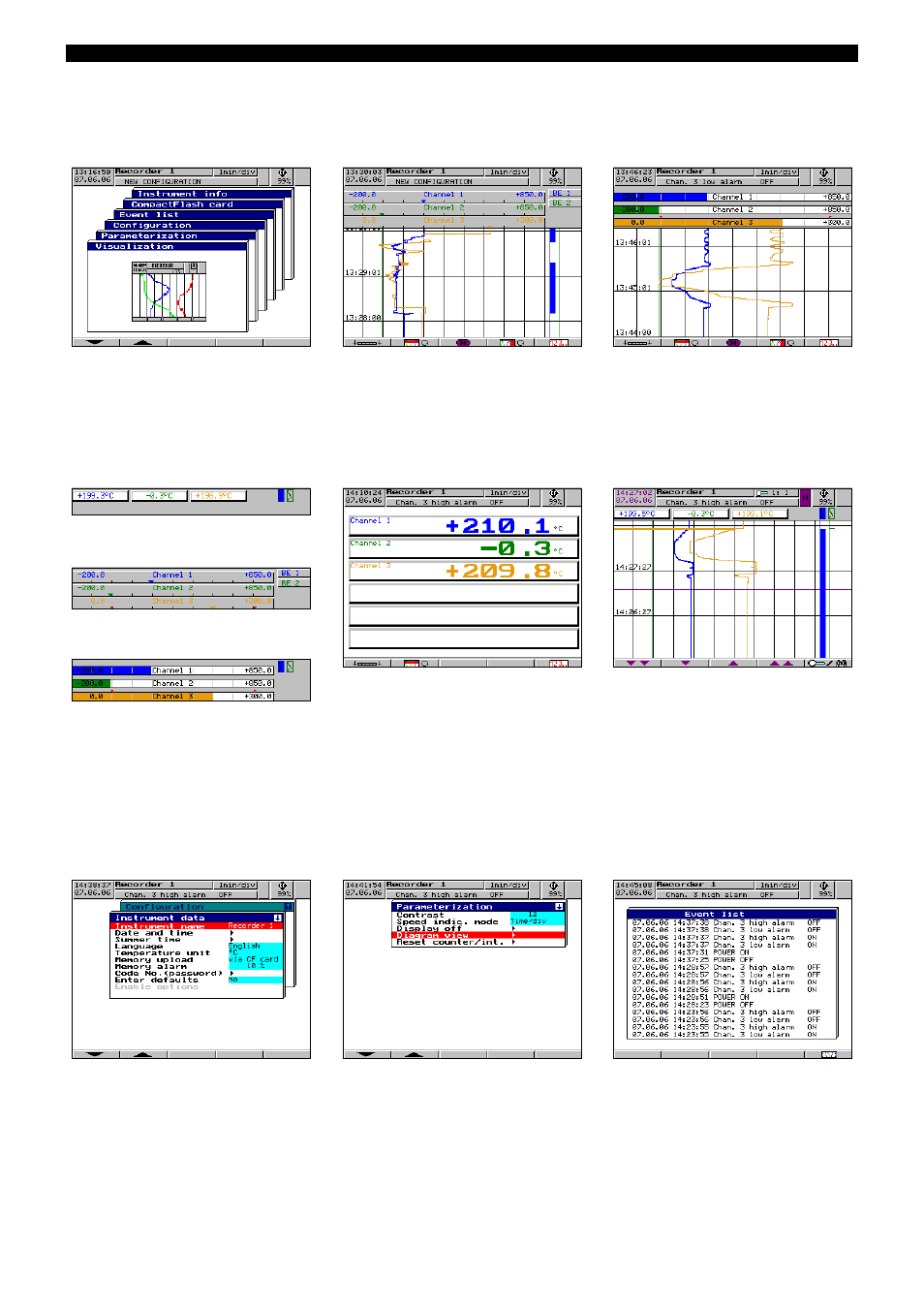

Presentation modes on the instrument
Main menu
k Branching into the menus (levels)
- visualization
- parameterization
- configuration
- event list
- CF card manager
- device info
Visualization
k Analog channels and event traces
k In addition to the curves, measurements
can be made visible in numerical form,
with scaling or as a bar graphs.
k Softkeys can be made visible or hidden.
Visualization
k Graphical presentation of the analog
channels (without event traces)
k Display of scaling and
limit markers for the channels
Visualization
k Display mode “Measurements”
(numerical display)
k Display mode “Scaling”
including limit markers
k Display mode “Bar graph”
including limit markers
Visualization
k The graphical presentation can be
switched off in favor of a larger numerical
display.
History presentation
k All measurement data stored in the main
memory are shown as curves at different
zoom levels.
k Numerical display of the measurements
for the analog channels at the cursor
position.
k Shifting of the visible section within the
stored measurement data.
k When recorded as an envelope:
the maximum or minimum value display
can be changed within the channel line.
Configuration
k Configuration from instrument keys
k Password-protected
k Configuration can be transferred to CF
card
k Configuration data can be read/altered
through the setup program
Parameterization
k General settings without password
k Selection of the presentation mode,
such as: analog data and/or event traces
with/without channel line
Event list
k Important events in plain text
(alarm messages, external texts
or system messages)
