2009-12-15/00467412
Data Sheet 70.6510 JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 10/10
Order details
Standard accessories
- 1 Operating Manual B 70.6510.0
- 2 mounting brackets
- Cable tie with foot (can be released), for strain relief
of the connecting cables to the sensors
Accessories (Data Sheet 70.9700)
Entry-level Paperless Recorder with CompactFlash card as storage medium
and life-cycle data management
(1) Basic version
706510/14 Paperless recorder with 3 analog inputs
706510/24
Paperless recorder with 3 analog inputs
incl. setup and PC evaluation program (PCA3000)
706510/15 Paperless recorder with 6 analog inputs
706510/25
Paperless recorder with 6 analog inputs
incl. setup and PC evaluation program (PCA3000)
(2) Supply voltage
x x x x 22 20 — 53V AC/DC, 48 — 63Hz
x x x x 23 110 — 240V AC +10/-15%, 48 — 63Hz
(3) Extra codes
x x x x 008 Ethernet interface
x x x x 020 Lithium battery for memory buffering (ex-factory)
x x x x 021 Storage capacitor (instead of extra code 020)
x x x x 260 Integrators and counters, as well as math and
logic module (the math and logic module can only
be configured through the setup program).
x x x x 261 4 binary inputs, 3 relay outputs,
serial interface RS232/RS485 (Modbus, Jbus)
x x x x 265 Door with lock (IP54)
x x x x 266 IP65 seal, wide mounting brackets
x x x x 350 Universal carrying case TG-35
1
(1) (2) (3)
Order code - / , ... 2
Order example 706510/14 - 23 / 020
1 This extra code is available in combination with supply voltage 110—240V AC, not with low
supply voltage. UL approval is not available. The protection type in the carrying case
corresponds to IP20, outside IP20D.
2
List extra codes in sequence, separated by commas.
Sales No.
- Setup program, multilingual 70/00467262
- PC evaluation software (PCA3000), multilingual 70/00431882
- PCA communications software (PCC), multilingual 70/00431879
- PC interface with TTL/RS232 converter and adapter (socket) 70/00350260
- PC interface with USB/TTL converter, adapter (socket) and
adapter (pins)
70/00456352
- Enabling extra code 260
(configuration of the math and logic module
only through the setup program)
70/00393217
- 256 MB CompactFlash memory card
The CF cards specified by JUMO are tested and designed
for industrial applications. We do not accept any
responsibility for other CF cards. 70/00463462

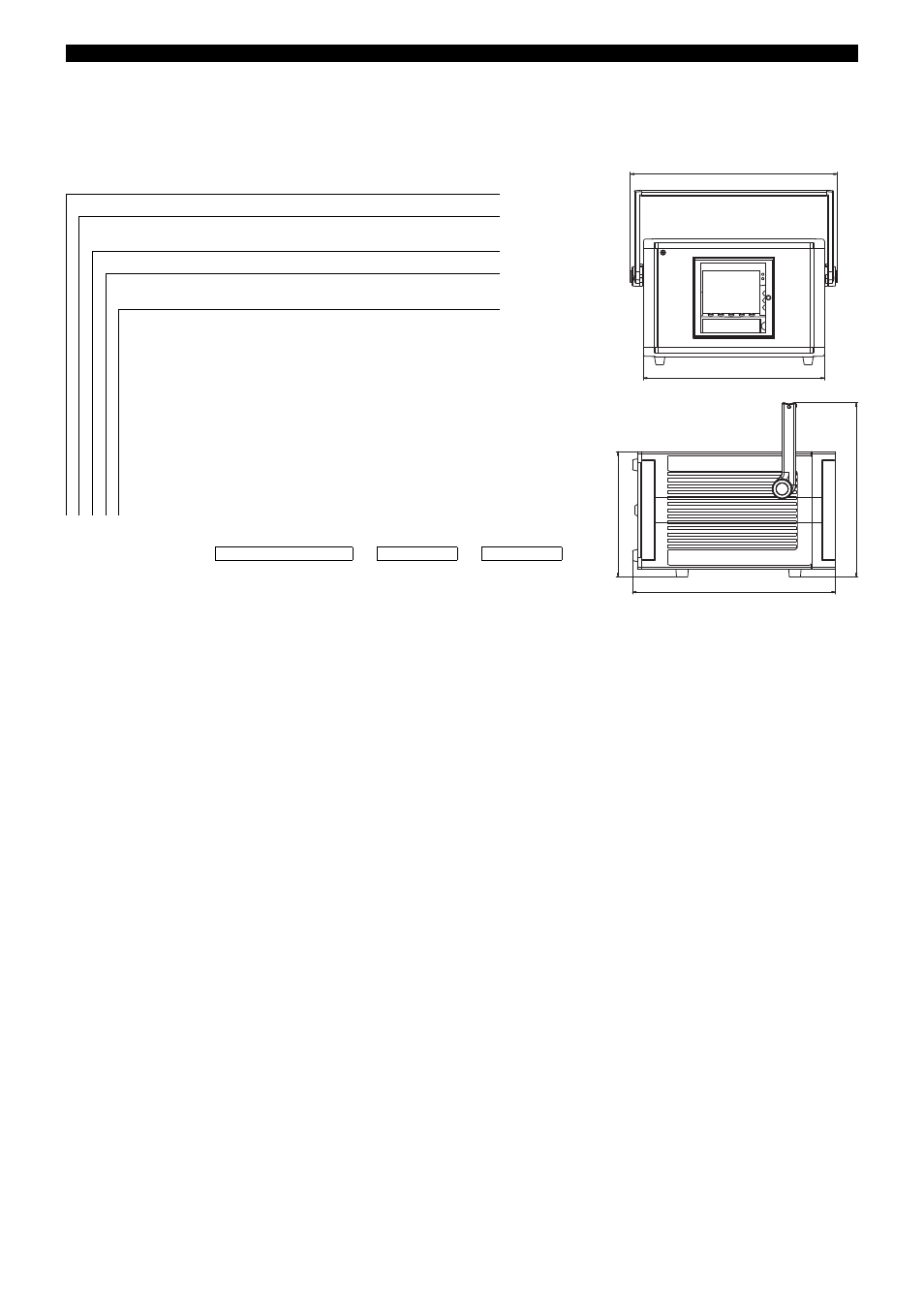

Universal
carrying case TG-35
- for the installation of a paperless recorder
with bezel size 144mm x 144mm
- 326mm x 226mm x 366mm (W x H x D)
Cut-out: 138mm x 138mm
- The paperless recorder is accessible
from the back
373
326
366
226
314
