15

3 Installation

3.1 Installation site and climatic conditions

The installation site should be as free as possible from vibration.
Electromagnetic fields, such as those caused by motors, transformers etc.
should be avoided as far as possible.

The ambient temperature at the site can be 0 to 50 °C, at a relative humidity of

 75 %, no condensation.
v Chapter 4.1 “Installation notes”

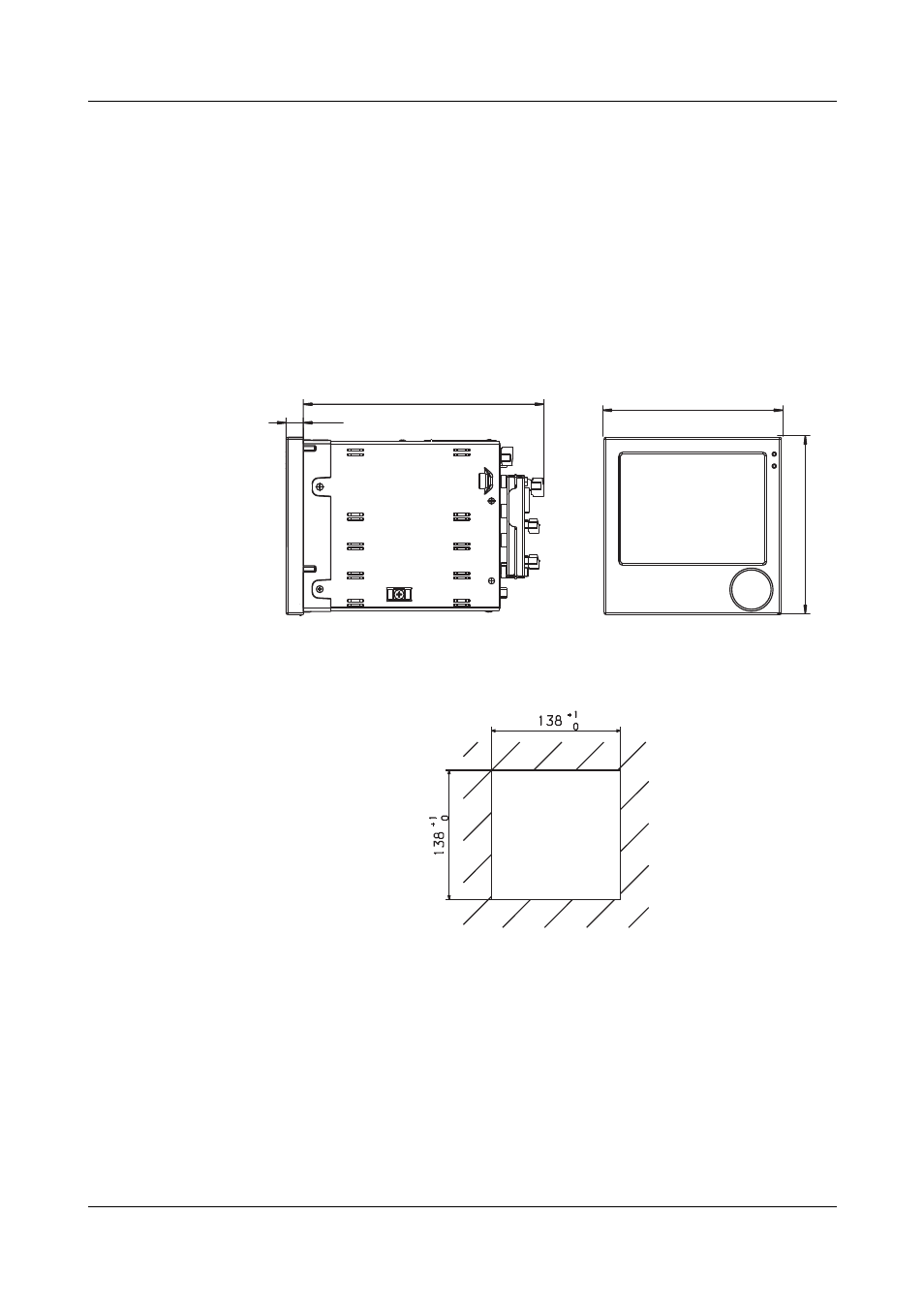

3.2 Dimensions

Recorder with
stainless steel
front

Panel cut-out

It is essential to keep to these dimensions for the panel cut-out. If the panel is
less than 2 mm thick, a stiffener must be provided.

193

13.8

144

144
