11

2 Identifying the instrument version

2.1 Nameplate

Position

The nameplate is glued onto the paperless recorder.

Illustration

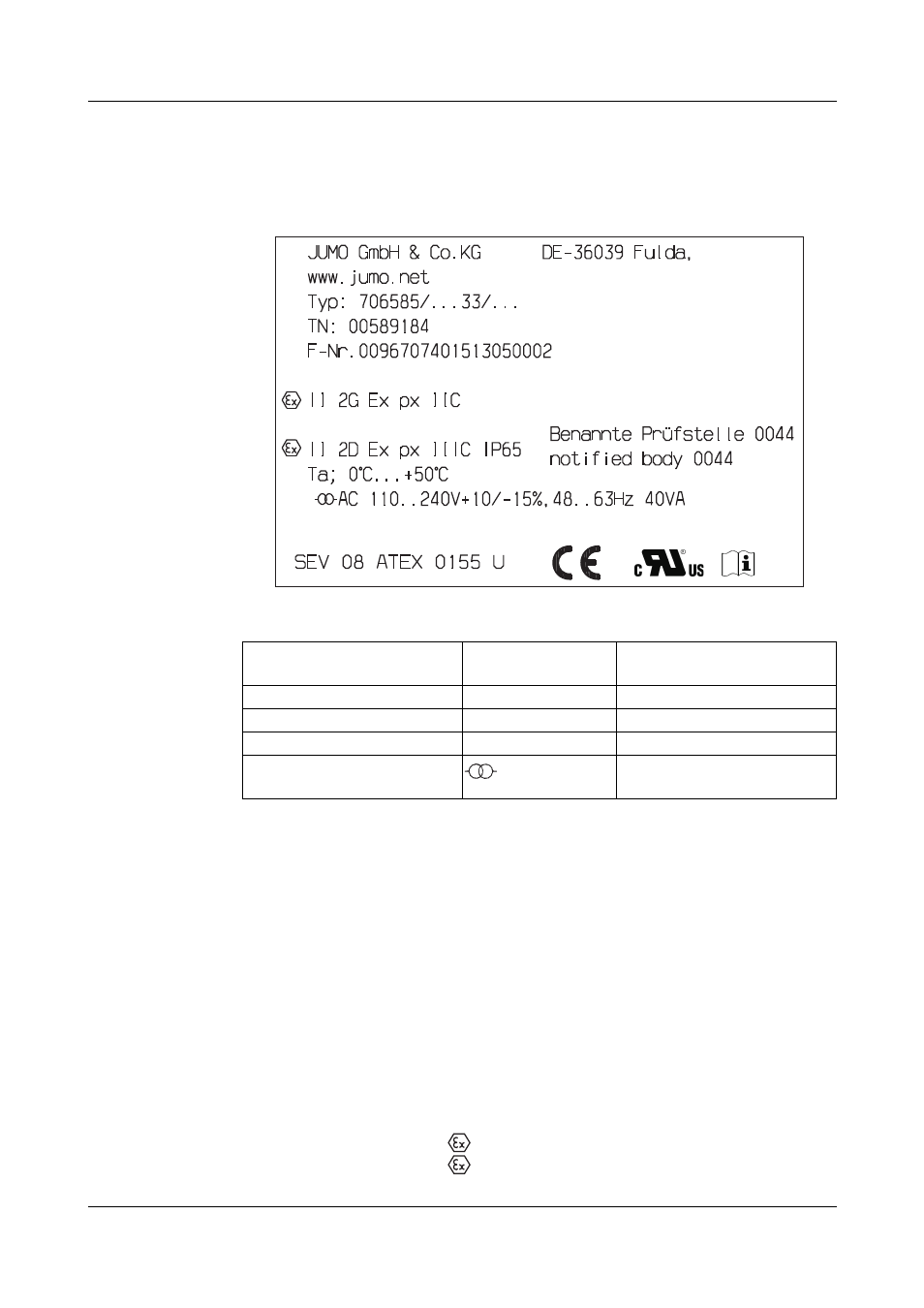

The following illustration shows a typical nameplate:

Contents

It contains important information, such as:

Typ

Please check the type supplied against your order document. Refer to
Chapter 2.2 “Order details” for identification of the type.

TN

The part no. provides an unambiguous definition of an article from the catalog.
It is used in communication between the sales department and the customer.

F-Nr

The serial number (F-Nr) indicates the production date (year/week). The figures
concerned are in positions 12, 13, 14, 15.

Example:

F-Nr 0022969000013050006

This shows that the paperless recorder was manufactured in 2013, week 5.

Marking under
Directive 94/9/
EC

Paperless recorders with authorization for potentially explosive atmospheres,
carry the following mark on the nameplate.

Description

Designation on
the nameplate

Example

Device type

Typ

706585/18-321-33/020

Part no.

TN

00xxxxxx

Serial no.

F-Nr

0022969000013050006

Supply voltage

AC 110 — 240 V
+10/-15 %, 48 — 63 Hz

II 2G Ex px IIC

II 2D Ex px IIIC IP65
