9 Evaluation - Table area
54
Scroll diagram
to data set If the time for the event is not within the visible area of the diagram, for
instance after zooming, then “Scroll data set” can be used to shift the curves
so that the time (or the next possible one) is in line with the left window border.
Synchronize
data sets with
diagram The entry that matches the displayed measurements is searched for in the
table area and captured. The time shown at the left window border of the
diagram is decisive here.
Filter data sets “Filter data sets” serves to reduce the list of displayed events.
If, for example, the “System messages” field is inactivated ( ), the messages
“New configuration”, “Power ON” and “Power OFF”, among others, will no
longer be shown.
The display in the header informs you that the current display is a filtered
selection.
The individual filter parameters are OR-linked, and additionally AND-linked
with the full-text search.
Filtering is reset when
- the graphics evaluation is closed or
- all criteria have been marked with a tick.

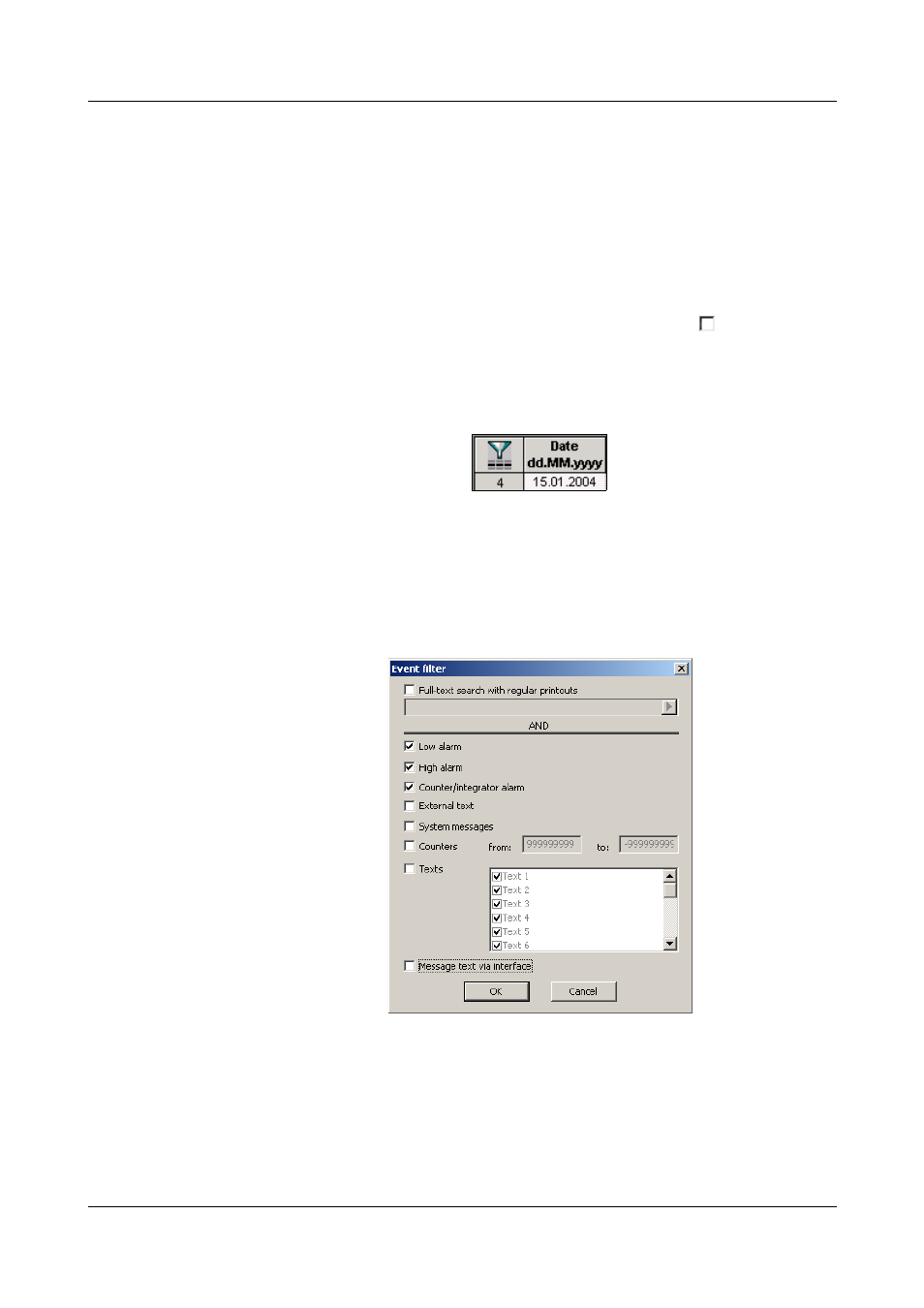

Example of a filter setting:
Only the event types “Low alarm”, “High alarm” or “Counter/integrator alarm”
are displayed.
Mark all data
sets All table data are marked.
