29
5 Operation

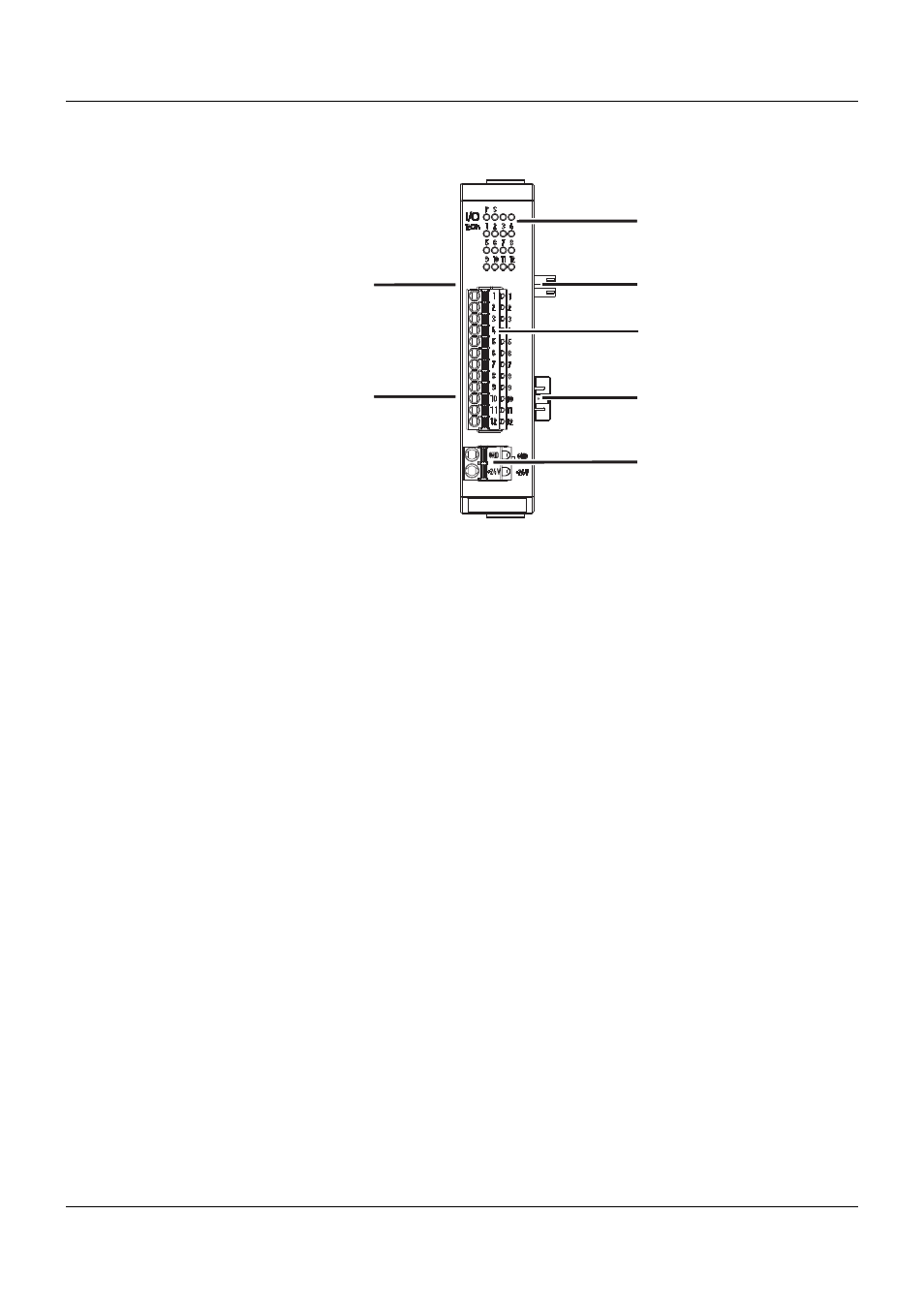

5.1 Display and connection elements
(1) Status displays (LED)
P = Voltage supply
S = Status
1 to 12 = Digital input/output
(LED is lit: Active)
(2) Voltage supply Out, DC 24 V
(3) Digital inputs/outputs
(4) Side system bus Out
(5) External voltage supply
DC 24 V
(6) Side system bus In
(7) Voltage supply In, DC 24 V
(1)
(2)
(3)
(4)
(5)
(7)
(6)
