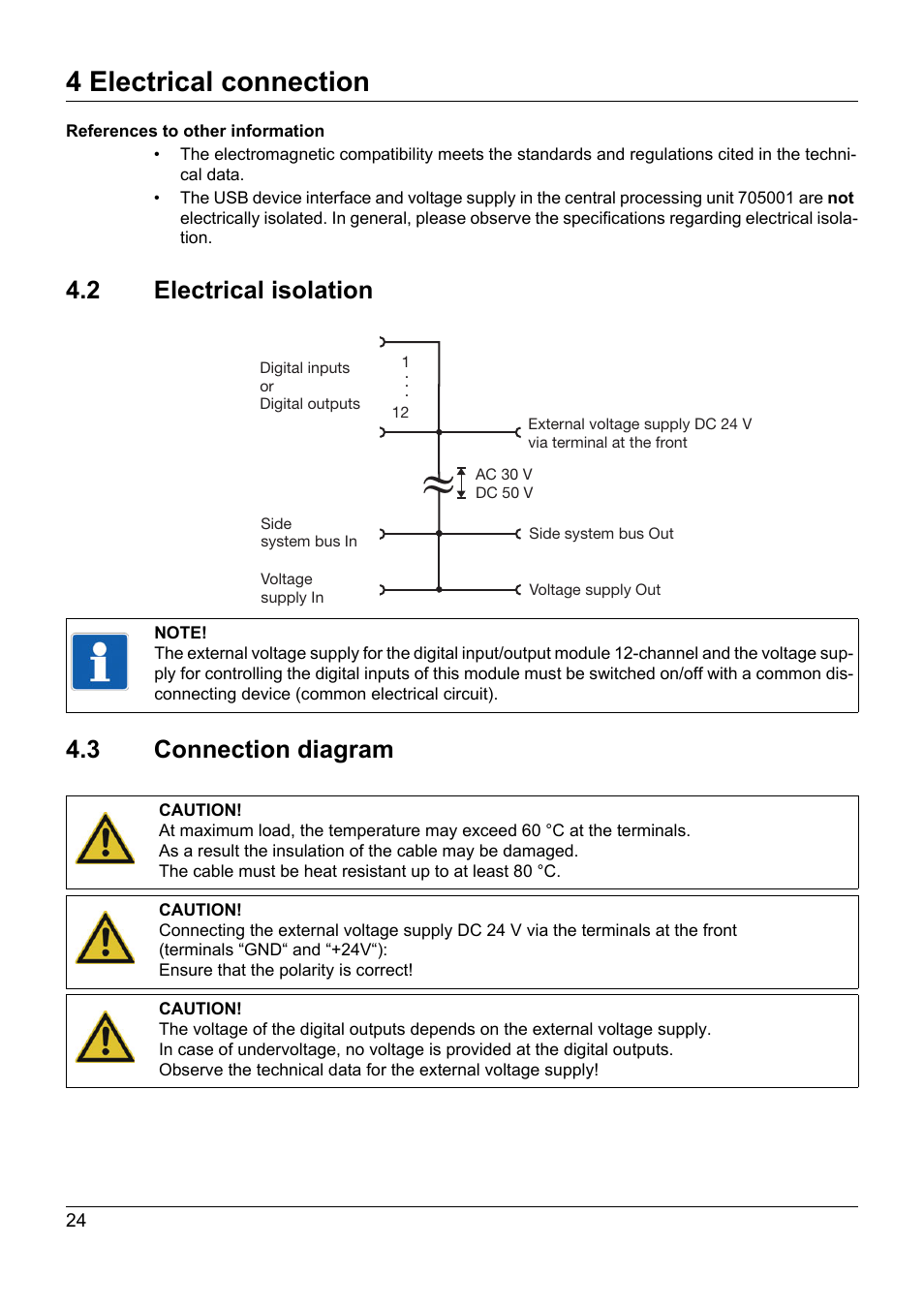

Page 24: Connection diagram, 4 electrical connection, 2 electrical isolation 4.3 connection diagram

Text mode
Original mode

2 electrical isolation, 3 connection diagram, Electrical isolation | Connection diagram, 4 electrical connection, 2 electrical isolation 4.3 connection diagram | JUMO 705030 mTRON T - Digital Input/Output Module Operating Manual User Manual | Page 24 / 50
