DIGI-44B Installation Guide

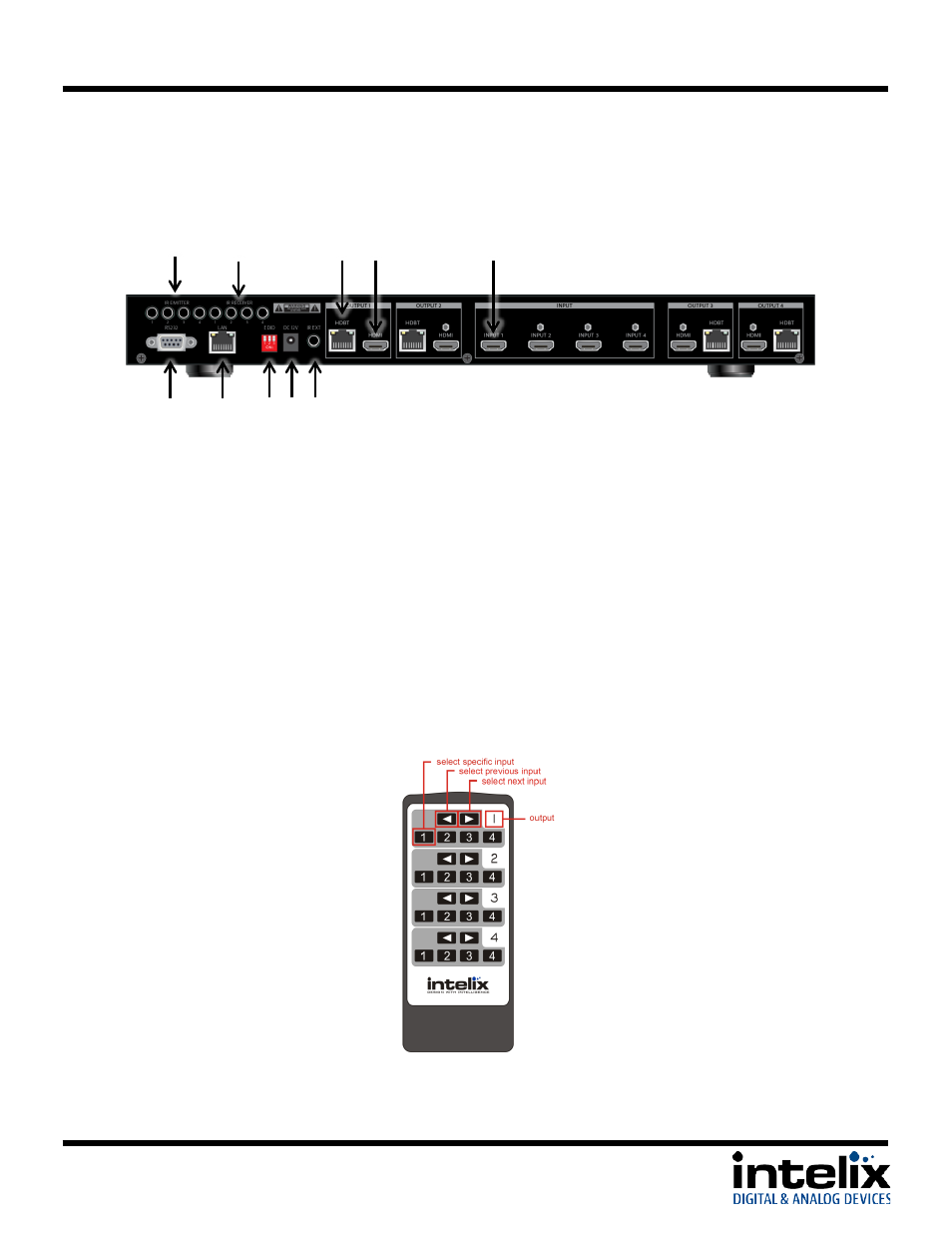

Rear Panel
1 - Emitter Ports – IR emitters to control HDMI sources in the rack.
2 - IR Receiver Ports – IR receiver ports to send IR signals to the remote HDBaseT receivers.
3 - Outputs: HDBaseT Lite extended output – 70m max
4 - Outputs: HDMI local output
5 - Inputs: HDMI local input
6 - RS232 Control – serial communication for third party control.
7 - Ethernet – web server and UDP control.
8 - EDID DIP switches - select the EDID management mode.
9 - DC Power Input – 12vDC/5a power inlet.
10 - IR Extended Input – input for extending the local IR input.
IR Remote
The included IR remote performs routing functions available on the front panel of the DIGI-44B.
10
1
1 2 3 4 5
6 7 8 9
7
