DIGI-44B Installation Guide

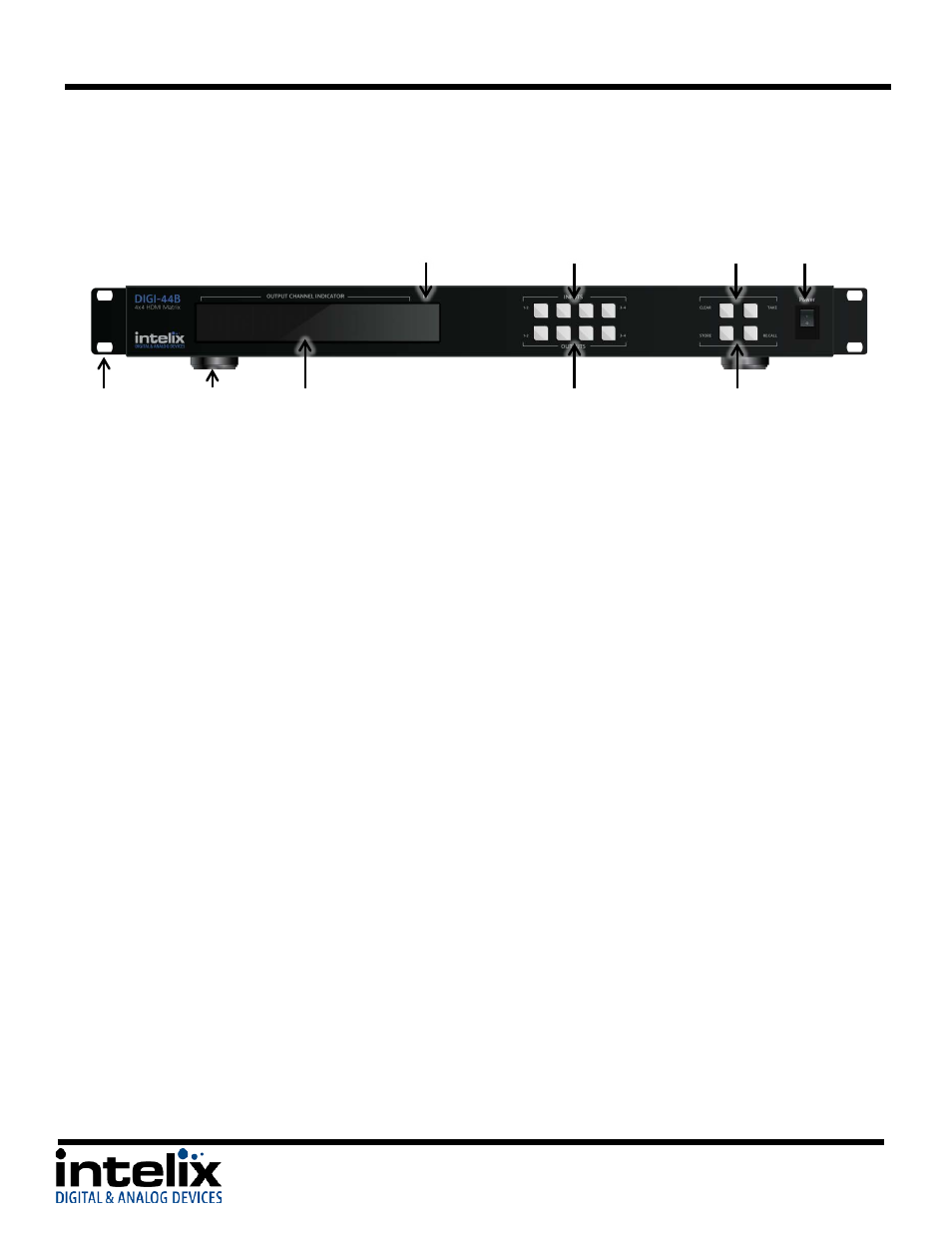

Front Panel
1 - IR Receiver – For use with the included IR remote.
2 - Input Buttons –Buttons labeled “1-2” and “3-4”.
3 - Preset Buttons (Top Row) –Buttons labeled “CLEAR” and “TAKE”.
CLEAR – Used to cancel the current input selection.
TAKE – Used to make the changes active.
4 - Power Switch –Switch to toggle the power to the matrix.
5 - Rack Ears – Optional rack ears for rack mounting the DIGI-44B in an equipment rack.
6 - Chassis Feet –Factory installed feet for shelf top installations.
7 - LED Display – Routing information is displayed.
8 - Output Buttons – Buttons labeled “1-2” and “3-4”.
9 - Preset Buttons (Bottom Row) –Buttons labeled “STORE” and “RECALL”.
STORE – Used to save a preset to memory.
RECALL – Used to load a preset from memory.
Explanation of use for the front panel control is located in the section Front Panel and IR Remote Operation
(page 10).
1 2 3
5
4
6 7 8 9
6
