DIGI-44B Installation Guide
RS232 and TCP/IP Commands

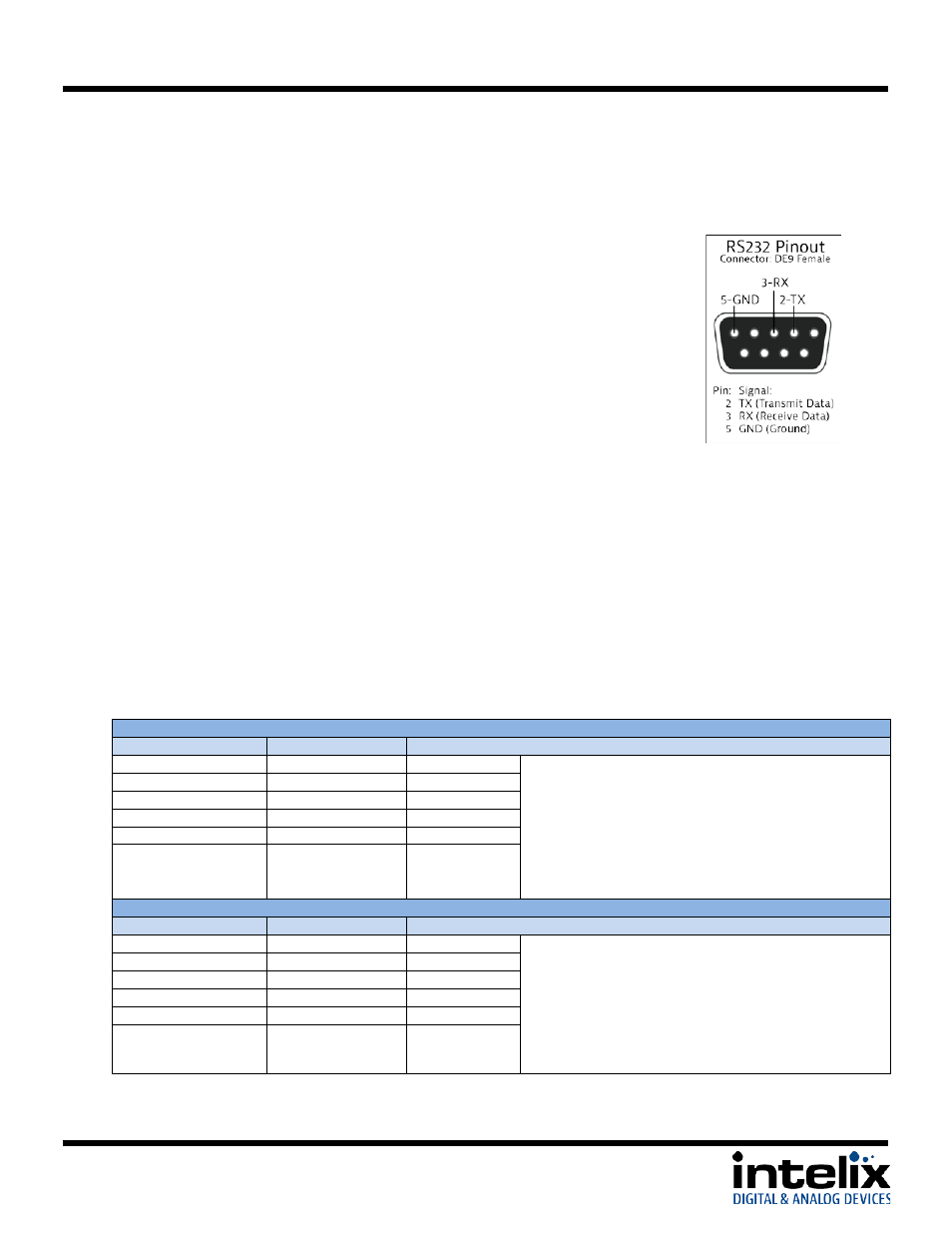

RS232 Connection
The RS232 control port requires a standard straight-through serial cable for
operation. The default settings for the RS232 port are:
- 9600 baud
- 8 Data Bits
- 1 Stop Bit
- Parity = none
TCP/IP Connection
TCP/IP Settings: User defined IP address, port 23 (The unit leaves the factory with a default IP address of
192.168.0.178)
DIGI-44B Command Protocol
Important Note: Be sure to include a carriage return after the command line when the command includes the “” suffix.
Also, there is a space between “cir” and the code, which is required.
RS232 & TCP/IP Routing Commands
Output 1 Commands
Function Command Response
Select Input 1 cir 09 s10 The updated status for output 1. Represented as an ASCII
string in the format of “sXY” where:
• X is the output channel
• The value of Y maps as follows:
0 = input 1
1 = input 2
2 = input 3
3 = input 4
Select Input 2 cir 1D s11
Select Input 3 cir 1F s12
Select Input 4 cir 0D s13
Select Input Up cir 41 new route
Select Input Down cir 57 new route
Output 2 Commands
Function Command Response
Select Input 1 cir 17 s20 The updated status for output 2. Represented as an ASCII
string in the format of “sXY” where:
• X is the output channel
• The value of Y maps as follows:
0 = input 1
1 = input 2
2 = input 3
3 = input 4
Select Input 2 cir 12 s21
Select Input 3 cir 59 s32
Select Input 4 cir 08 s43
Select Input Up cir 11 new route
Select Input Down cir 1B new route
