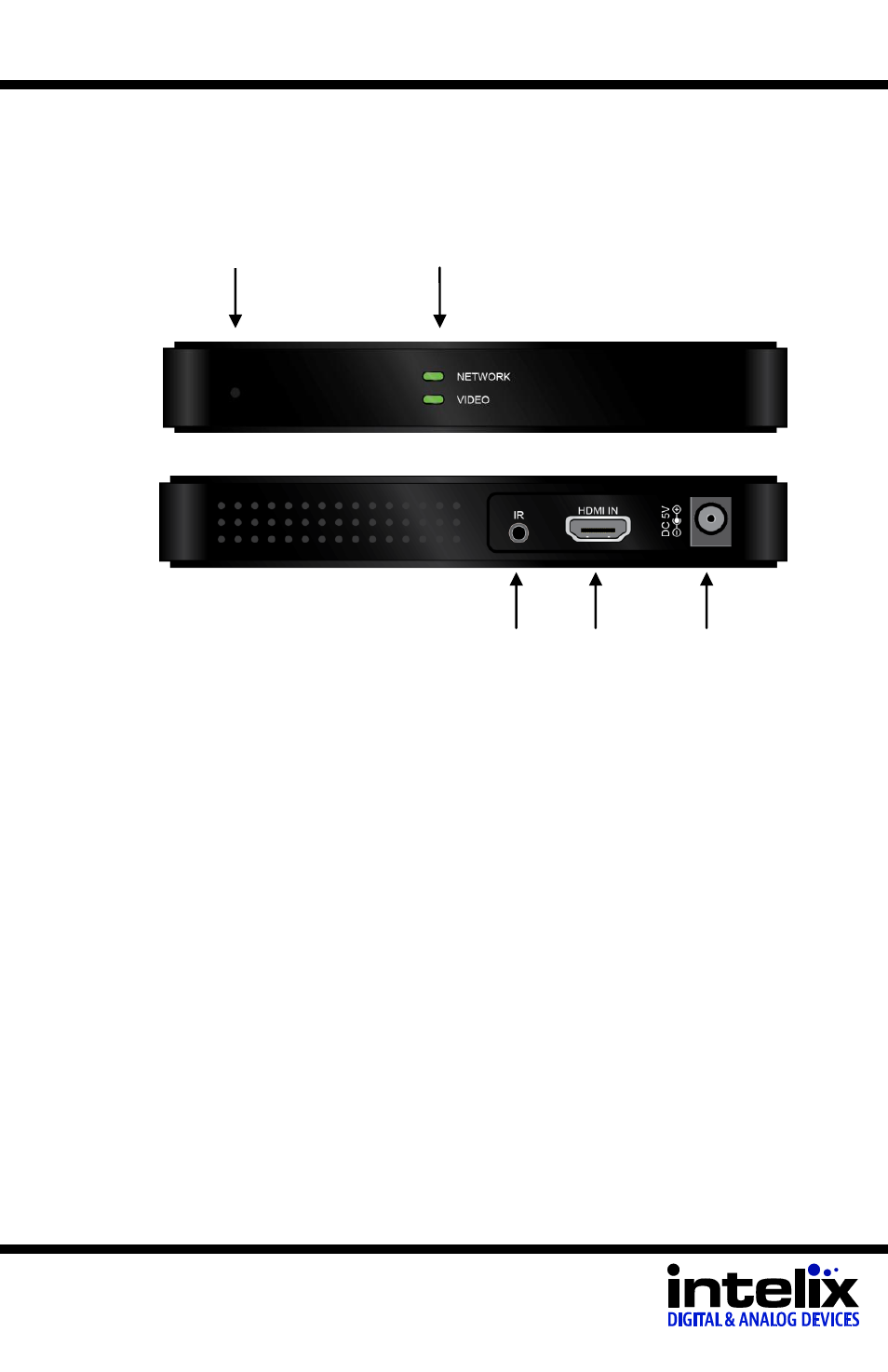

SKYPLAY-MX-S
Pairing Button – Recessed button for use when pairing a Transmitter
and Receiver.
Status Indicator “Network” – LED will be on when successfully
connected. LED will be blinking during pairing. LED will flash rapidly
indicating an error has occurred.
Status Indicator “Video” – LED is on when video is being transmitted.
IR Repeater Output – IR signals from the Receiver are output to the
source device.
HDMI Input – Receptacle for Connection to HDMI Source
5V DC Input – Power Supply input 5vDC 2a
Status
Indicators
5V DC
Input
HDMI
Input
IR Output
Pairing
Button
5v
Input
