SKYPLAY-MX Installation Guide
11
Installation Instructions
Shelf Mounting Instructions
Mount the SKYPLAY-MX in the desktop stand with the
vent holes down. Proper orientation will result in the
power cable being down near the base and will ensure
proper passive ventilation. Improper mounting can
cause the device to overheat and temporarily
malfunction.

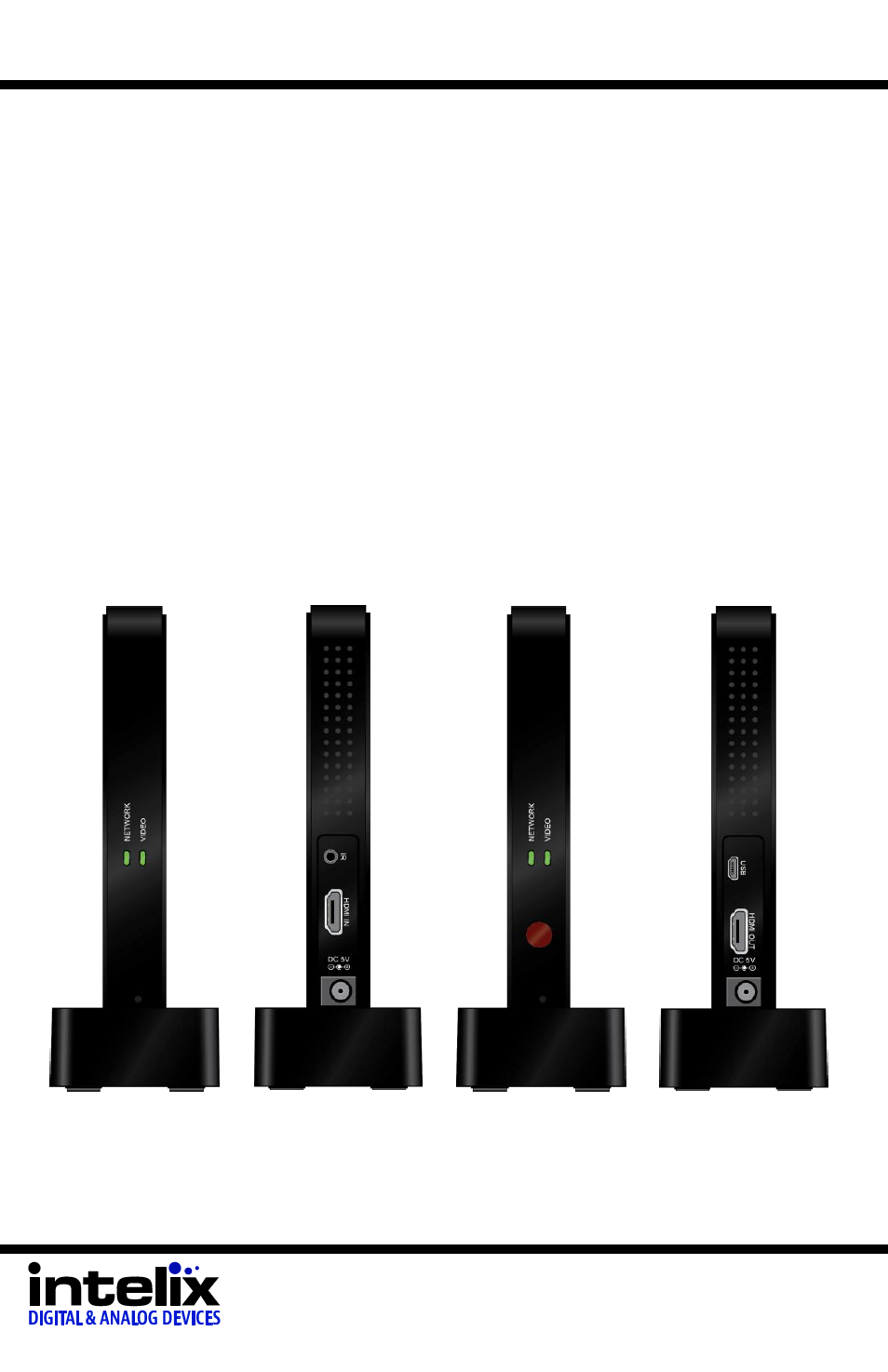

SKYPLAY-MX-S
Mounting Front
View
SKYPLAY-MX-R
Mounting Front
View
SKYPLAY-MX-S
Mounting Rear
View
SKYPLAY-MX-R
Mounting Rear
View
