INFICON HPG400 ATM to High-Vacuum Gauge User Manual
Page 15
tina31e1 (2004-05) HPG400 v1.om
15
• Allen key, size 2.5 mm

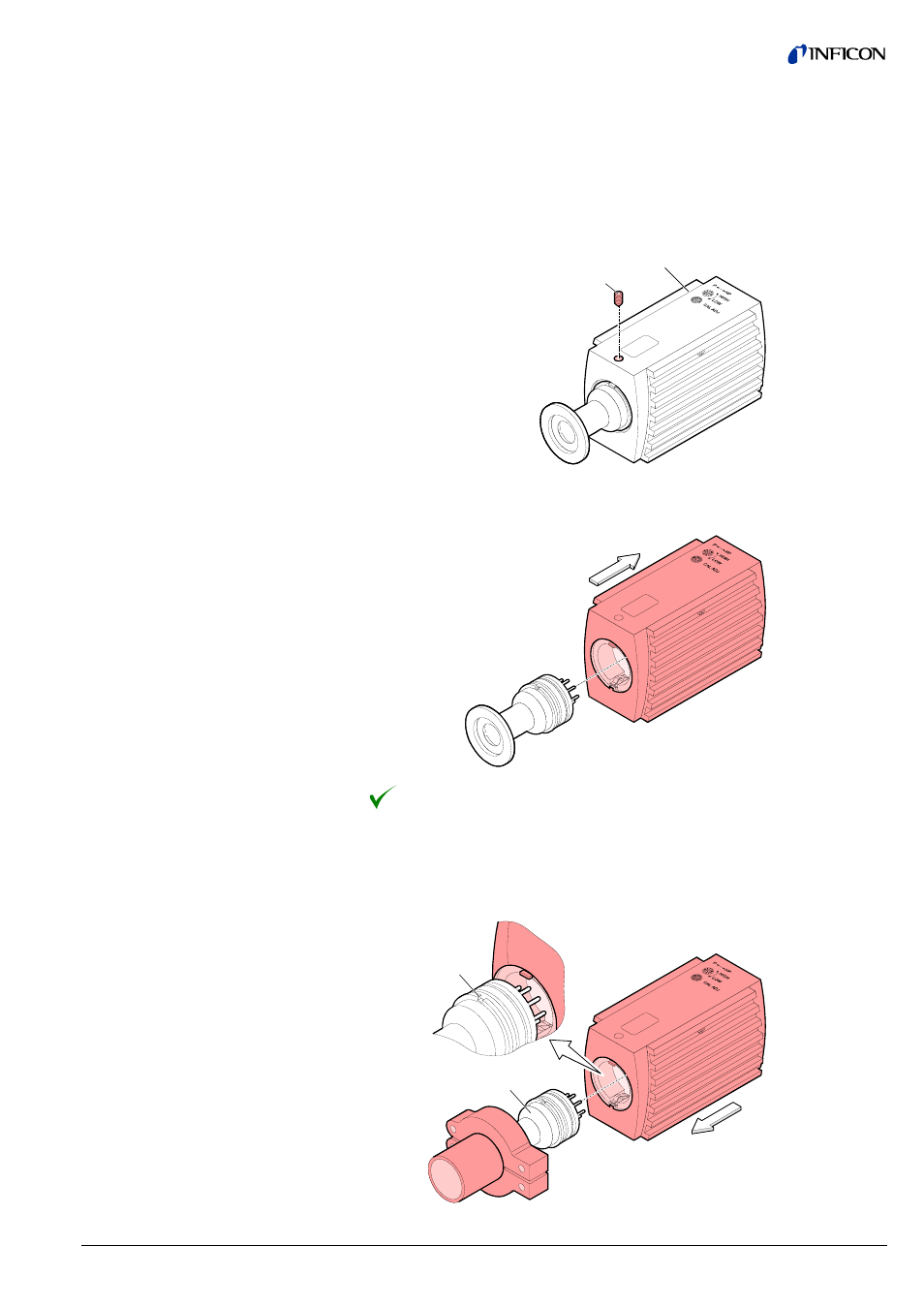

Unscrew the hexagon socket set screw (1) on the side of the electronics
unit (2).
2
1
Remove the electronics unit without twisting it.
Removal of the electronics unit is completed.
Place the electronics unit on the sensor (3) (be careful to correctly align the
pins and notch (4)).
3
4
3.1.1 Removing and Installing
the Electronics Unit
Required tools / material
Removing the electronics unit
Installing the electronics unit
