1 Starting-Up of the Slave

The BPG402-SD has to be powered with two voltages:

1.

24 VDC, 18 W at the 15 pole Sub-D connector for the gauge itself;

2.

24 VDC nominal, <2 W range (+11 … +25 V) at the DeviceNet micro style
connector for the DeviceNet transceiver.

1

2

3

4

5

6

7

8

Position

Function

1

Address switch × 10, decimal

2

Address switch × 1, decimal

3

DeviceNet connector

4

Data rate switch

5

Network status LED

6

Module status LED

7

"Sensor cable" connector
(Power, analog I/O, RS232C I/O
and Relay contacts)

8

Filament status LED

1.1 Power Supply

Requirements

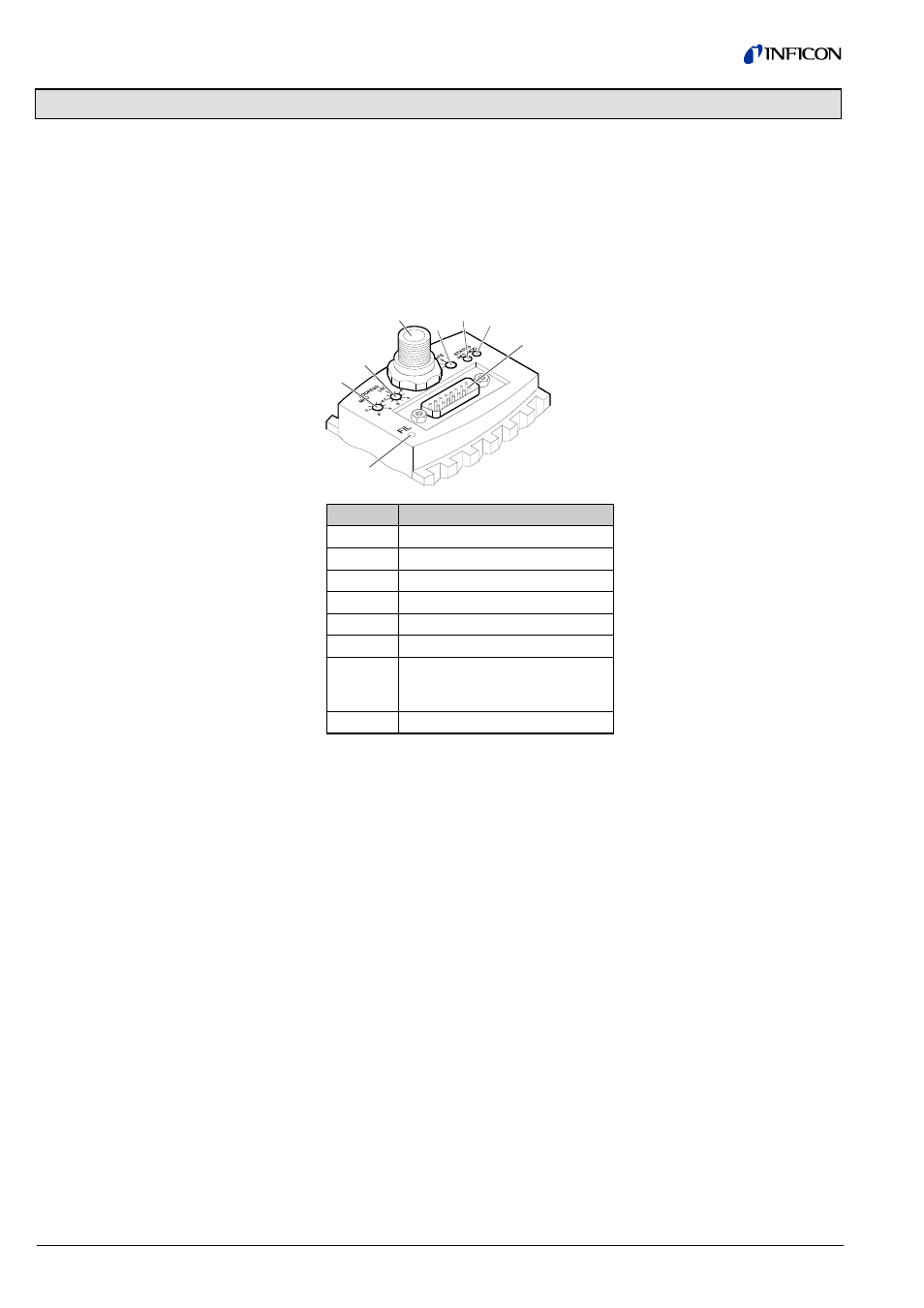

1.2 Front View of the

BPG402-SD
