2 Technical data
2.1 General data
2.1.1 Mechanical data

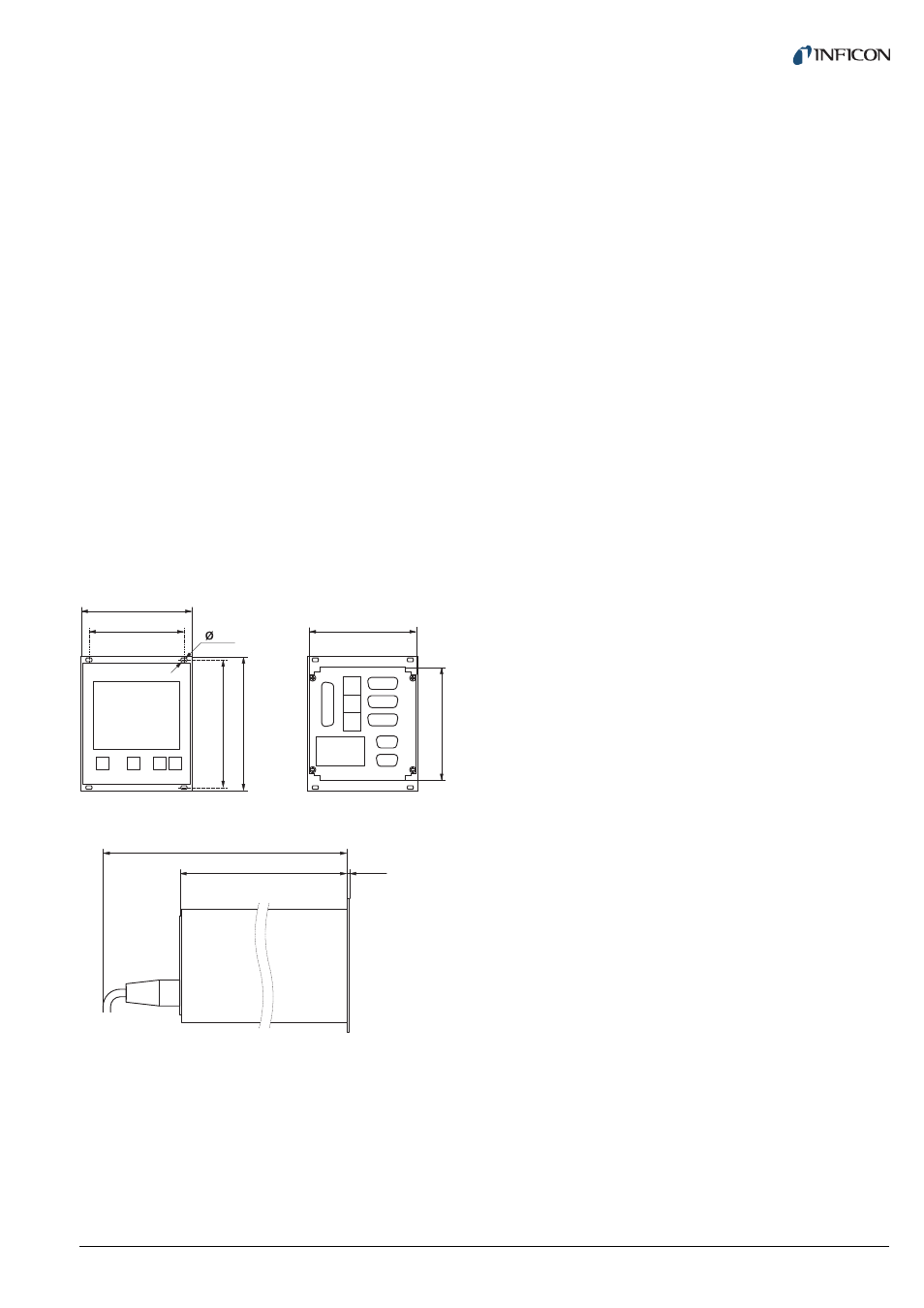

Fig. 2-1 Dimensions (in mm)
2.1.2 Ambience
2.1.3 Operation
2.2 Mains connection
Dimensions Width: 106.3 mm
Height: 128.5 mm (3 HE)
Depth: 207 mm
See Fig. 2-1, 7
Weight VGC402:
1.04 kg
VGC403:
1.16 kg
Use Desktop unit
Control panel mounted
Mounting the unit in a rack
106.3
91.4
3.5
122.5 128.5
103
11
0
285
204.5 2.5
Temperature Storage: -20…+60 °C
Operation: +5…+50 °C
Relative humidity Max. 80 % (bis 31 °C),
decreasing to
max. 50 % (above 40 °C)
Use Indoors only
Altitude max. 2000 m NN
Pollution degree II
Protection type IP20
Manually Via 4 control buttons on the
front panel
Remote control Via RS232C interface
Voltage 90…250 VAC
Frequency 50…60 Hz
Power consumption VGC402:
Max. 45 W
VGC403:
Max. 65 W
Overvoltage category II
Protection class 1
Connection European appliance con-
nector IEC 320 C14
