Page 34
Page 32
Installation
1 2 3 4 5 6 7 8
= SWITCH IN UP (ON) POSITION
SW7
SW8
Function
Speed RPM
torque in-oz
OFF
OFF
High Speed, Low Torque
9.25
120
ON
OFF
Mid Speed, Mid Torque
7.00
156
OFF
ON
Low Speed, High Torque
5.00
180
ON
ON
Not Assigned
SW6
Clockwise
ON
CounterClockwise
OFF
SW5
BIDIRECTIONAL
OFF
UNIDIRECTIONAL
ON
Code
Function
SW1
SW2
SW3
SW4
0
STD. 3-Pocket, 120 apart
OFF
OFF
OFF
OFF
1
STD. 4-Pocket, 90 apart
ON
OFF
OFF
OFF
2
STD. 5-Pocket, 72 apart
OFF
ON
OFF
OFF
3
STD. 6-Pocket, 60 apart
ON
ON
OFF
OFF
4
not assigned
OFF
OFF
ON
OFF
5
STD. 8-pocket, 45 apart
ON
OFF
ON
OFF
6
not assigned
OFF
ON
ON
OFF
7
UHV 4-Pocket
ON
ON
ON
OFF
8
not assigned
OFF
OFF
OFF
ON
9
Continuous
ON OFF
OFF
ON
10
3-pkt(120 Ban), pkts 90 apart
OFF
ON
OFF
ON
11
3-Pkt(135 Ban), pkts 90 apart
ON
ON
OFF
ON
12
3-Pkt(145 Ban), pkts 90 apart
OFF
OFF
ON
ON
13
3-Pkt(180 Ban), pkts 90 apart
ON
OFF
ON
ON
14
not assigned
OFF
ON
ON
ON
15
not assigned
ON
ON
ON
ON
SWITCHES 1-4:
SOURCE TYPE
SWITCH 5:
UNI / BI DIRECTIONAL
ROTATION DIRECTION
SWITCH 6:

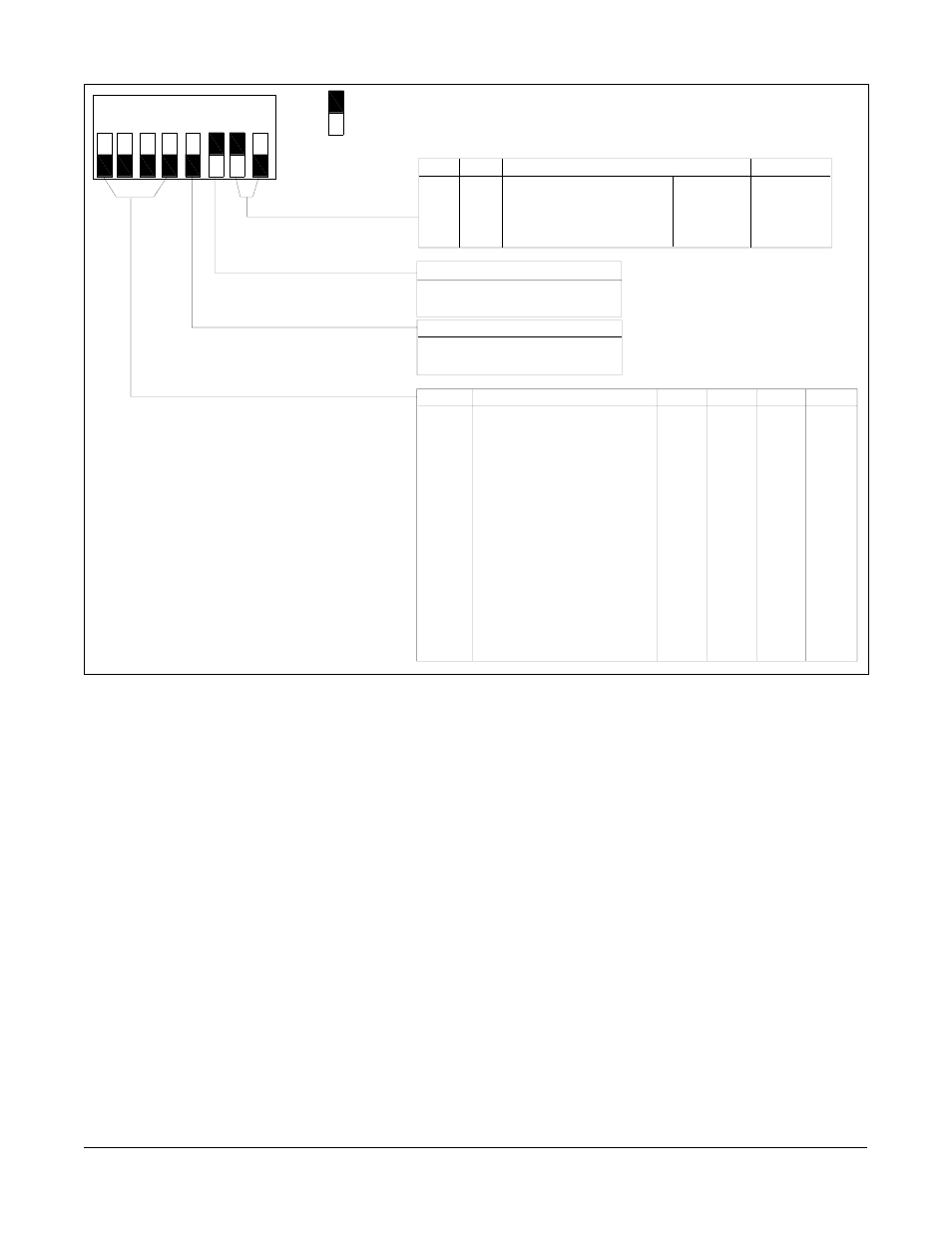

Figure 3.4: Configuration Switch
Internal switches select all the above modes or functions. An eight-position dipswitch is
located at the top end of the main control printed circuit board within the SRT-422. To access
this switch, first disconnect any line power. Remove the six socket head cap screws, which
hold the bottom connector panel to the side extrusions. Slide out the back panel and PC
Boards until this switch is accessible. Make the desired configuration settings and reassemble
the unit.
Section 3.5: Description of Configuration Switches
SW1, SW2, SW3, SW4 -- The first four switches are used to match the Indexer to the type of
source being controlled.
SW5 -- Rotation Type. Controls whether the Indexer moves in a single direction or a bi-
directional path. (Bi-directional should be selected if shortest path operation is desired).
Switch 5 allows you to select uni- directional or bi-directional rotation. If uni-directional
rotation is selected (switch 5 ON), the direction of rotation is determined by the setting of
switch 6. If bidirectional rotation is selected (switch 5 OFF), the indexer will employ
shortest-path indexing in moving between the pockets of rnultipocket sources.
