16 Electrical connections
Supply voltage plug X1
X1
UNIT PIN DESCRIPTION Models
HDA 5500 – X – X – AC – 000 ~ / ~ Supply voltage inputs 85VAC to 265VAC 50/60Hz 1 , 2 and 3
HDA 5500 – X – X – DC – 000 + / - Supply voltage inputs 24VDC 1 , 2 and 3
Signals plug X2
X2
UNIT 1 2 3 4 5 6 7 8 9 10 11 Models
HDA 5500 – 0 – X – XX – 000 RXD TXD DGND
Analogue
Output
AGND +12V Sensor 1
Input
1 , 2 and 3
HDA 5500 – 1 – X – XX – 000 RXD TXD DGND
Analogue
Output
AGND +12V
Sensor 1
Input
Sensor 2
Input
Sensor 3
Input
AGND 1 , 2 and 3
HDA 5500 – 2 – X – XX – 000 RXD TXD DGND
Analog
Output
AGND +12V
Sensor 1
Input
Freq Start Stop Clear 1 , 2 and 3
HDA 5500 – 3 – X – XX – 000 RXD TXD DGND
Analogue
Output
AGND +12V
Sensor 1
Input
Pt100 Pt100 Pt100 Pt100 1 , 2 and 3
Relay plugs X3 / X4
X3 X4
UNIT 1 2 3 4 5 6 1 2 3 4 5 6 Models
HDA 5500 – X – 0 – XX – 000 1
HDA 5500 – X – 1 – XX – 000
R1
N/C
R1
Common
supply
R1
N/O
R2
N/C
R2
Common
supply
R2
N/O
2
HDA 5500 – X – 2 – XX – 000
R1
N/C
R1
Common
supply
R1
N/O
R2
N/C
R2
Common
supply
R2
N/O
R3
N/C
R3
Common
supply
R3
N/O
R4
N/C
R4
Common
supply
R4
N/O
3

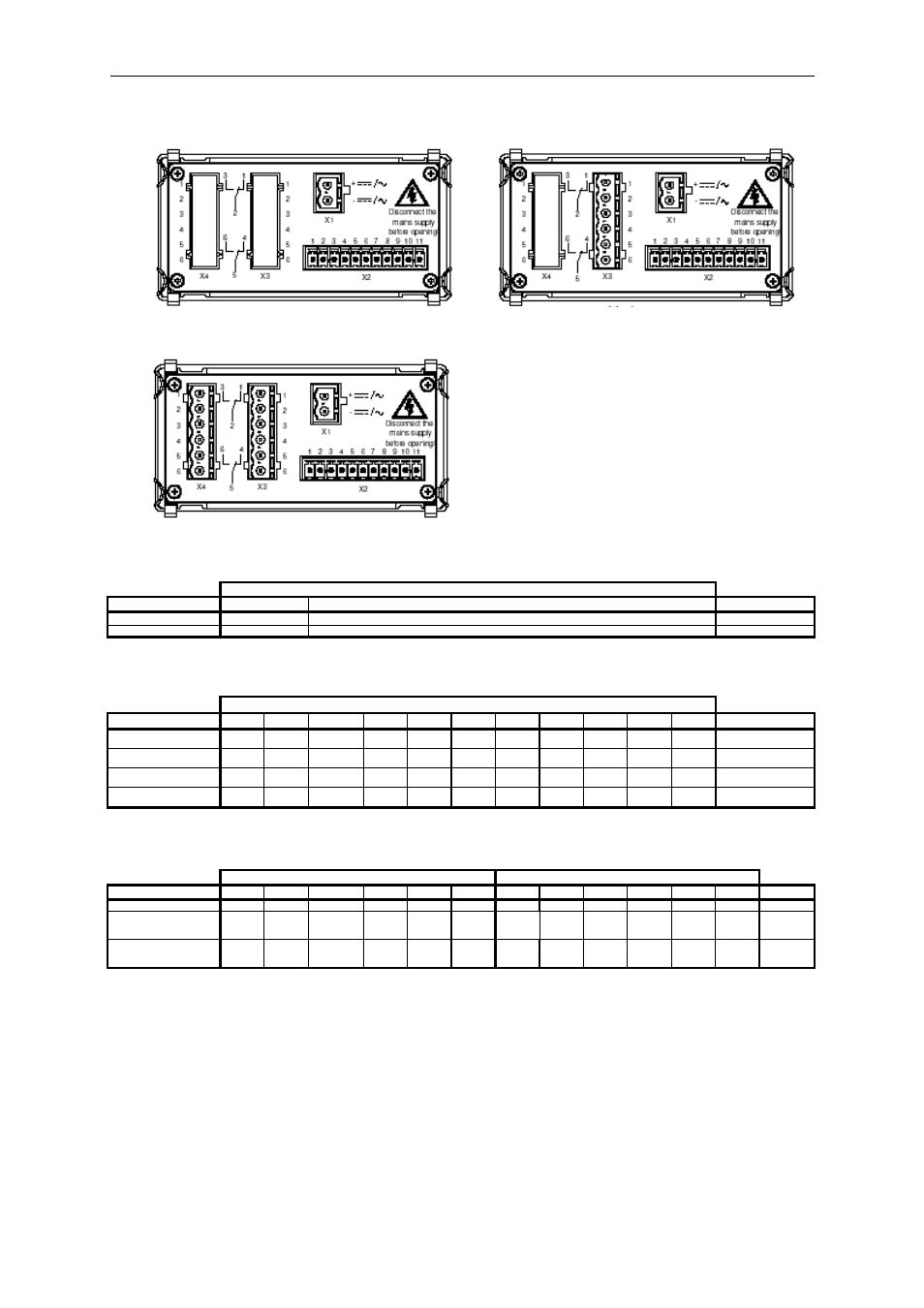

Model 1 Model 2
Model 3
