HDA 5500 for HLB 1000 and CS 1000

- 29 -

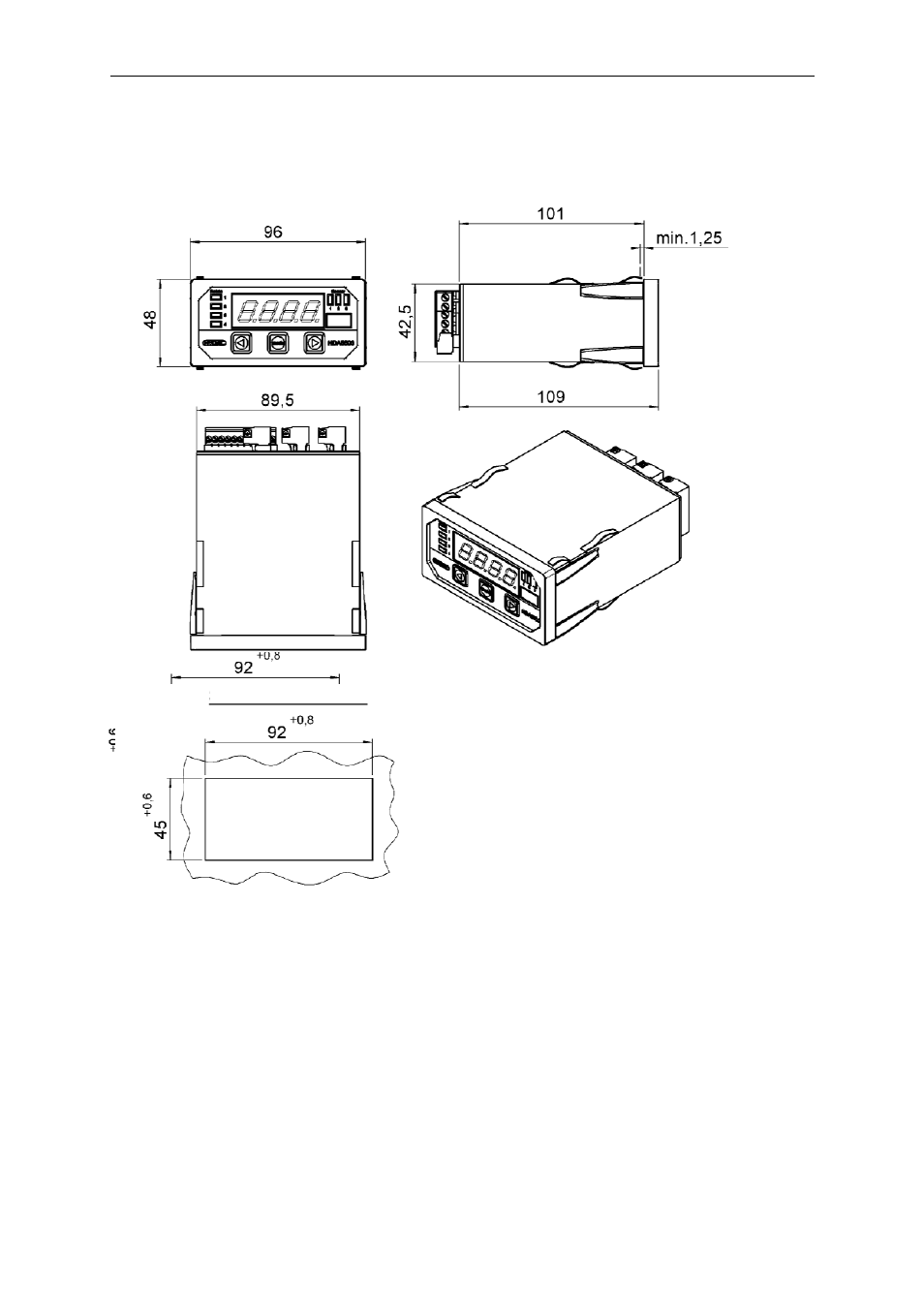

15 Unit dimensions

Control panel thickness

Control panel cut-out

This manual is related to the following products:

HDA 5500-0-2-AC-006 (CM1k)
